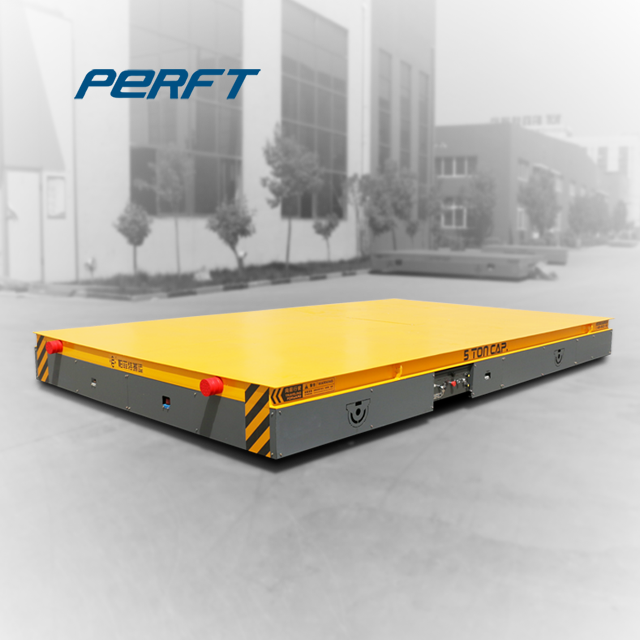

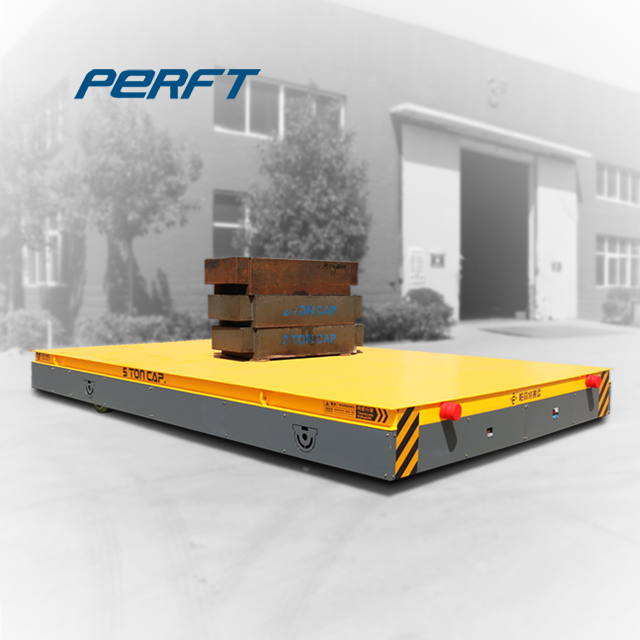

150 Ton Bulk Cargo Handler for Ports - Heavy Duty Terminal Transporter

Load Capacity: 150tons(1-300 tons can be customize )

Speed: 1-20 m/min or as your needs

OEM&ODM: Support

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Power supply: battery transfer cart

Price :Click the button to send me an inquiry based on the load capacity and customized price

Description

Dedicated for small ports/warehouses! 150 ton heavy-duty cargo loader - can be operated by oneself without hiring anyone

The 150-ton Port Bulk Material Handling Transporter is a heavy-duty solution specifically designed for ports, suitable for bulk cargo transfer with high-frequency transfer needs. Its rated load capacity is 150 tons (we can customize it up to 300 tons), which can replace the frequent round trips of small forklifts at one time, greatly shortening the operation cycle of the port yard. It can be adapted to a variety of goods:

Special customization of port transfer vehicles

This equipment is built for harsh port environments: 20mm steel frame (with salt spray resistance for more than 5 years) + IP54 protection (can operate in an environment of -20°C to 60°C).
Safety configurations include collision sensors with 0.3-second response and fail-safe brakes.
It can be customized (track gauge, power: cable reel/lithium battery) to adapt to existing infrastructure. It can increase the daily transfer volume by more than 100% and reduce labor costs by 30%, while providing 24/7 global service and a 3-year frame warranty.



Parameters

c82da5b481c6f4ed83960019314a66c
 Rated Load(t)      2 20 50 100 150
Wheel Base(mm)  1200     2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 2000
Wheel Diameter 270    350 500 600 600
Wheel Quality 4 4 4 4 8
Ground Clearance (mm) 50 50 50 75 75
Running Speed (min) 0-25 0-20 0-20 0-20 0-18
Motor Power (kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full 4.32 4 3.3 3.2 2.9
Running Distance for one Charge (Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load 14.4 77.7 174 343.8 265.2
Reference Weight (t) 2.8 5.9 8 14.6 26.8
Recommend Rail Model P15 P24 P43 QU100 QU100

Process

  • 360 degree motorized rotation without causing any damage to the floor.

  • Powered by storage battery, turning freely without any cable strings.

  • Controlled easily by pressing the buttons and speed controller.

  • High level automation(self propelled/steerable)

  • The largest capacity can reach to 100t

  • Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)

  • Robust sturdy car frame

Notes

  •  Load capacity ,table size and rail gauge can be customized
  •  Options : Remote radio control (imported or made in China )
  •  Automatic stop when detecting obstacle or person ,limit switches (to limit travel)
  •  Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )
  •  motor (DC motor with brush and DC motor brushless )
  • Electrical parts (imported or made in china )
