An electric flat transfer cart, also known as an electric platform trolley, electric flatbed, trolley, crossing cart, electric rail transfer cart, or floor crawler, is an electrictransfer cart used inside factories. It is an electrically driven vehicle that runs automatically under the drive of a motor reducer. Generally, its platform is flat without a compartment cover; in special cases, the platform may be non-flat but still has no compartment cover. The vehicle body has no steering wheel, only forward and reverse directions. This type of vehicle features a simple structure, easy operation, large load capacity, resistance to dirt and impact, easy maintenance, and a long service life. So how exactly to distinguish the classifications of electric flat carts? Today, the elites of Perfect will answer this for everyone.

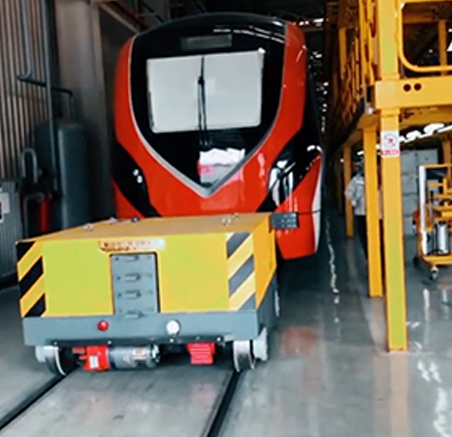

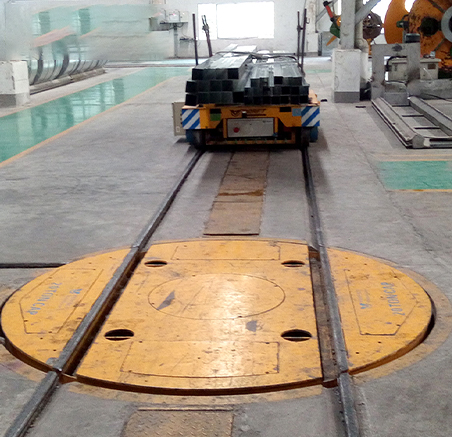

- Rail-guided electric flat transfer cart: As the name implies, a rail-guided electric flat cart travels on rails, and the laid rail lines serve as the running routes for the flat cart.

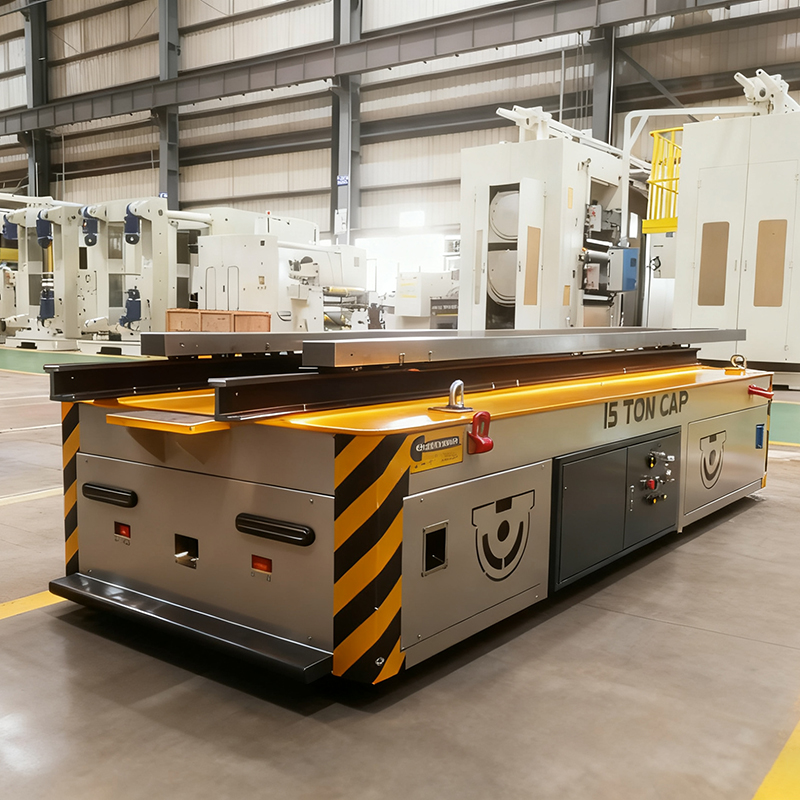

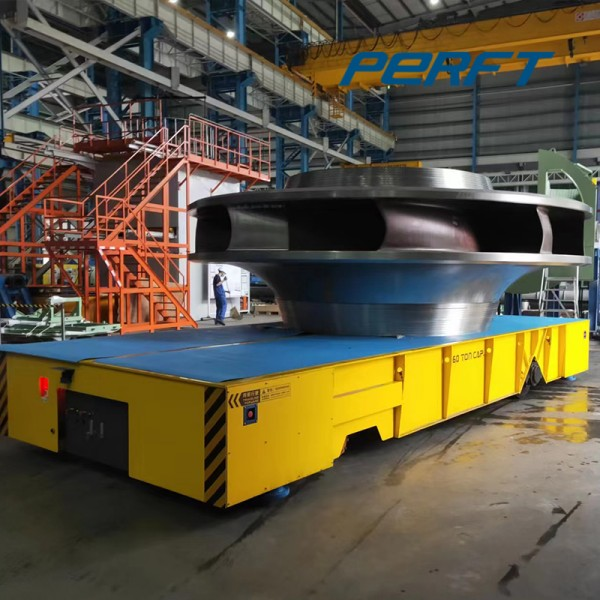

- Trackless electric flat transfer cart: A trackless electric flat carts can travel directly on the ground without laying rails. Its running route is not limited by rails and can turn freely.
- BXC battery-powered electric flat cart: It uses a battery to supply power to a DC motor, which drives the reducer and wheels to move the cart.
- BDG low-voltage rail-powered electric flat carts
Brief working principle of the low-voltage rail-powered electric flat trolley: A ground step-down transformer converts the 380V power supply into a 36V safe voltage, which is connected to the running guide rails of the carts. The power collection device of the cart draws electricity from the rails to the cart, and a step-up transformer on the cart boosts the 36V voltage to 380V and transmits it to the cart’s control box.
- BHX sliding contact line-powered electric flat carts
Brief working principle of the sliding contact line-powered rail flat trolley : An additional trench is dug on the side of the cart’s running track, and safety sliding contact line power collection equipment is arranged in the trench. For aesthetic purposes, a hinge cover can be installed on the surface of the trench.
- Non-powered series: It is pushed manually or pulled by traction equipment. This type can save costs or be used in special environments where electrical equipment is not suitable for operation, such as high-temperature or explosion-proof environments.
- BTL cable-powered electric flat carts
Principle: AC 380V power is supplied to the motor, which drives the cart to move. If the cable is too long, a reel can be added to retract and release the cable to prevent the cable from tangling or wearing due to dragging on the ground.
