Maximum load capacity: 10 tons (customized according to demand)
Number of platforms: Hollowed / cut-out platform structure
Platform size: Each platform size can be customized according to the needs of the goods to meet the transportation requirements of different materials
Wheel material: wear-resistant rubber/polyurethane wheels, ensuring stable operation in various environments.
Wheel System: Heavy-duty cast steel wheels for stable rail operation

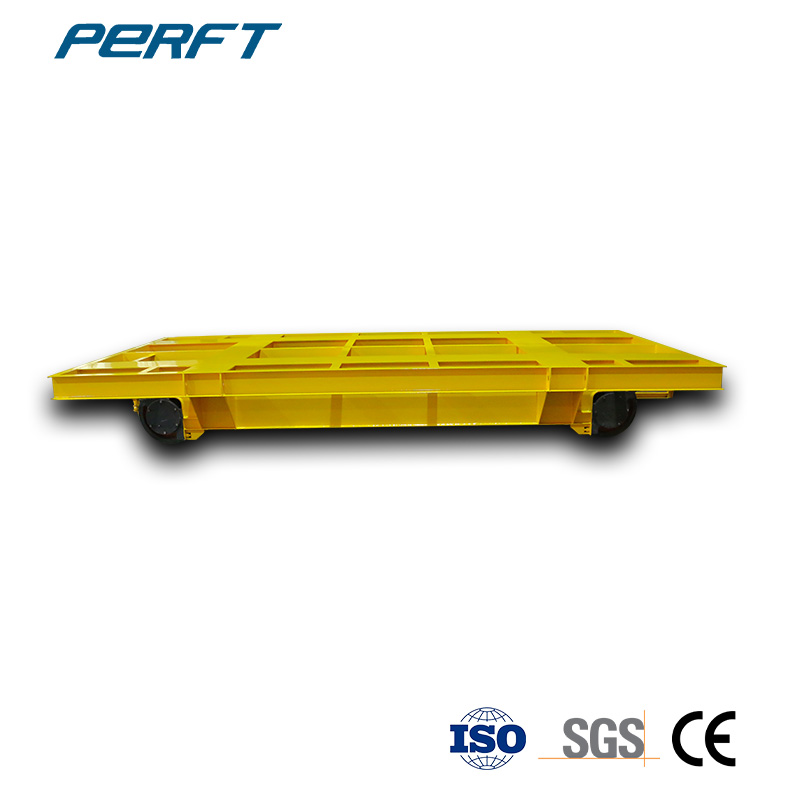

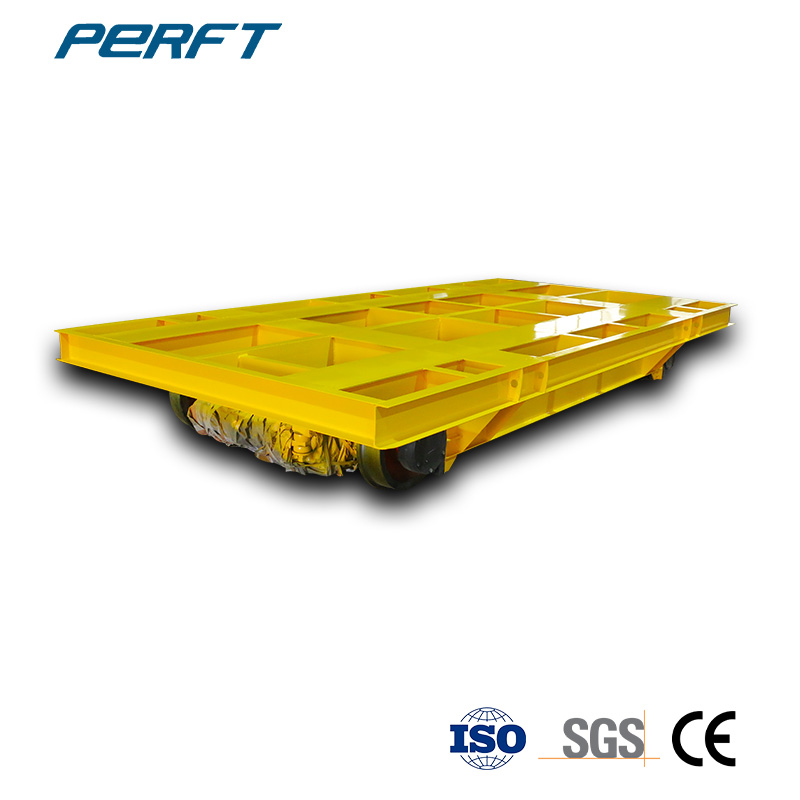

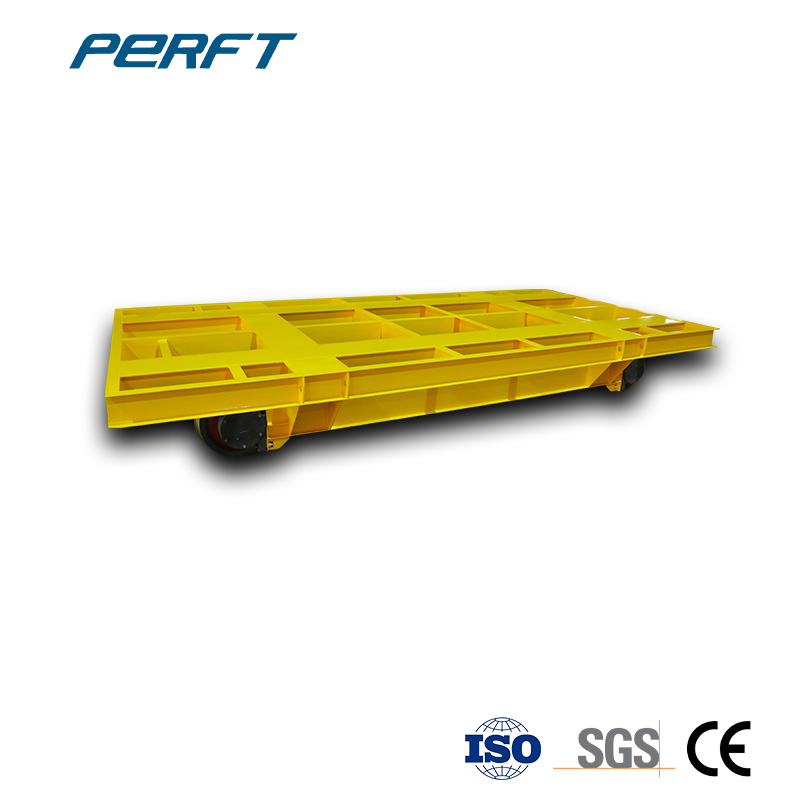

The 10 ton customized hollow platform rail transport vehicle is a specially customized model for customers, suitable for applications where standard flat transport vehicles cannot meet structural or process requirements.
Unlike traditional rail transport vehicles, this type of vehicle has a hollow platform design, and the hollow frame area can be equipped with fixing devices as needed. For example, when transporting irregular workpieces, hooks and slots can be welded inside the frame; When transporting container/box goods, locks and pads can be used to prevent the goods from sliding
Its rated load capacity is 10 tons, making it ideal for transporting long, oversized, or irregularly shaped materials along fixed railways in industrial environments.
Every hollowed platform rail transfer cart is designed based on real working conditions.
Customization includes:
Hollowed opening size, shape, and position
Platform effective load-bearing area
Load distribution and center-of-gravity balance
Rail gauge, travel distance, and workshop layout
To maintain full 10-ton load capacity, reinforced structures are applied around the hollowed area, ensuring long-term stability and safe operation.
1.Hollow platform transfer vehicle is an application driven solution.
2.A well-designed incision structure can not only improve processing efficiency, but also prevent long-term operational risks caused by improper load support or interference.
3.By selecting customized transfer cart platform designs, it can be ensured that the transfer vehicle is suitable for the current situation of the site
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
High frequency of use, unlimited running time.
Easy operation and low cost.
Suitable for all kinds of environments.It can be used indoors or outdoors in high temperature explosion-proof and other environments.
Customized for you.Custom table size, operating speed,load,etc.Meet your requirements.
