Load capacity: 1-300tons
Running Speed: 1-20m/min
Power supply: cable power /battery power/Low voltage track
Material: Steel coils, aluminum coils, galvanized coils, transformers, cable trays, castings, and other heavy loads.
Countertop dimensions (mm): can be customized
Price ：varies depending on the load capacity. Click the button to inquire

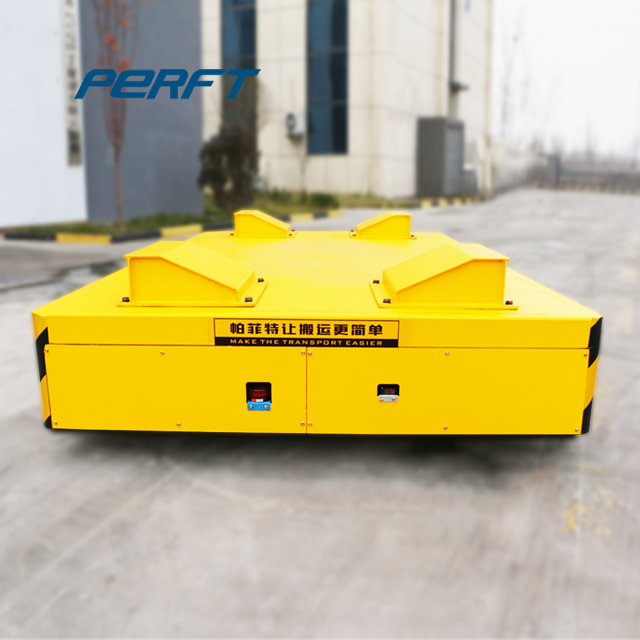

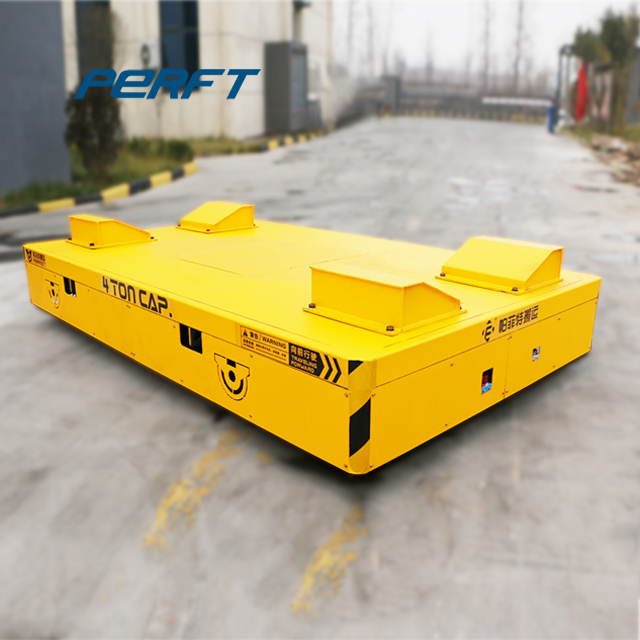

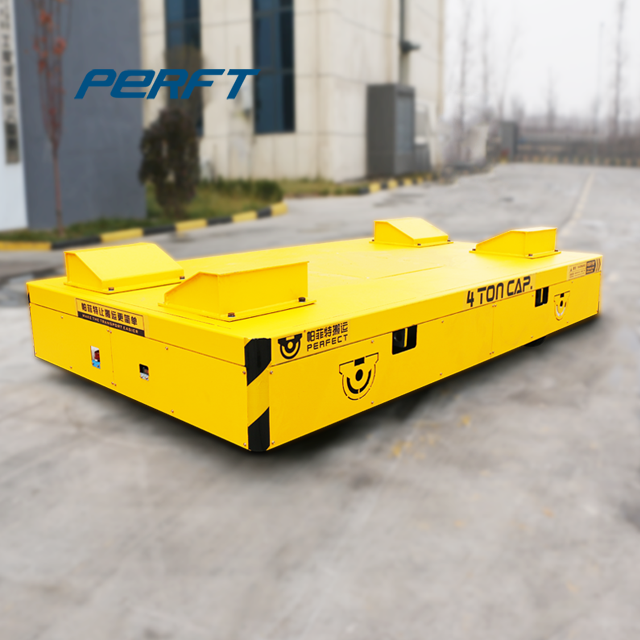

This explosion-proof transport vehicle can usually be used in dusty and explosive environments, and can be used in the oil and gas, chemical, and mining industries. The unique sealing structure of the vehicle body enables the transport vehicle to safely transport materials. Our designed explosion-proof vehicle meets national standards
Explosion proof motor, explosion-proof control box, explosion-proof button
Dustproof sealing structure (preventing dust from entering the electrical system)
Fireproof flower design and explosion-proof rating
Suitable for metal dust, chemical dust, food dust, etc
Every offshore platform, vessel, and industrial facility faces unique challenges. Morello's explosion-proof certified trolley can be fully customized to meet your specific needs, including:
1.Overall dimensions
2.Speed and slope capability
3.Wheel type
4.Structural adaptation
5.Safety devices and control technology
| Model | BWT-2T | BWT-5T | BWT-10T | BWT-15T | BWT-20T | BWT-30T | BWT-45T | BWT-60T |
| Rated Load(T) | 2 | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
| Table Size(mm) | 2000*1500 | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height of Trailer (mm) | 500 | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 | 559*254 | 559*356 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire | |||||||
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | |||||||
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Design: Design the cart structure and power system according to customer requirements.
Material Preparation: Procure steel, motors, wheels, electrical components, and other parts.
Cutting & Processing: Cut, bend, and punch steel plates to shape.
Welding & Assembly: Weld the cart frame and install wheels and turntable.
Electrical Installation: Wire and install motors, batteries, and remote control system.
Testing & Commissioning: Perform no-load and load tests to check safety and performance.
Painting & Packaging: Apply surface coating, protective treatment, and package for shipment.
1.360° rotation, lateral / diagonal movement to easily cope with narrow spaces
2.High-efficiency movement: speed up to 20 m/min, customizable according to needs
3.Diverse power options: three types of power sources are available: battery, cable, and track
4.Turntable structure: Easily connect tracks or workstations in different directions without moving the entire vehicle
5.Precise positioning: can park at the designated workstation, suitable for automated production lines
