Load Capacity: Customized up to 500 tons (under high-temperature conditions)
Speed: 20 m/min or as your need
Certificate: SGS, ISO9001, SASO
Drive motor: equipped with a high-temperature resistant motor
Wheels: Heat-resistant cast steel wheels or customized high-temperature wheel materials
Transfer vehicle movement path: linear movement, lateral movement, or 360 ° rotation (optional)
Customized high-temperature conveyor truck is designed specifically for material handling in high-temperature industrial environments, where standard conveyor truck configurations may be slightly inadequate,

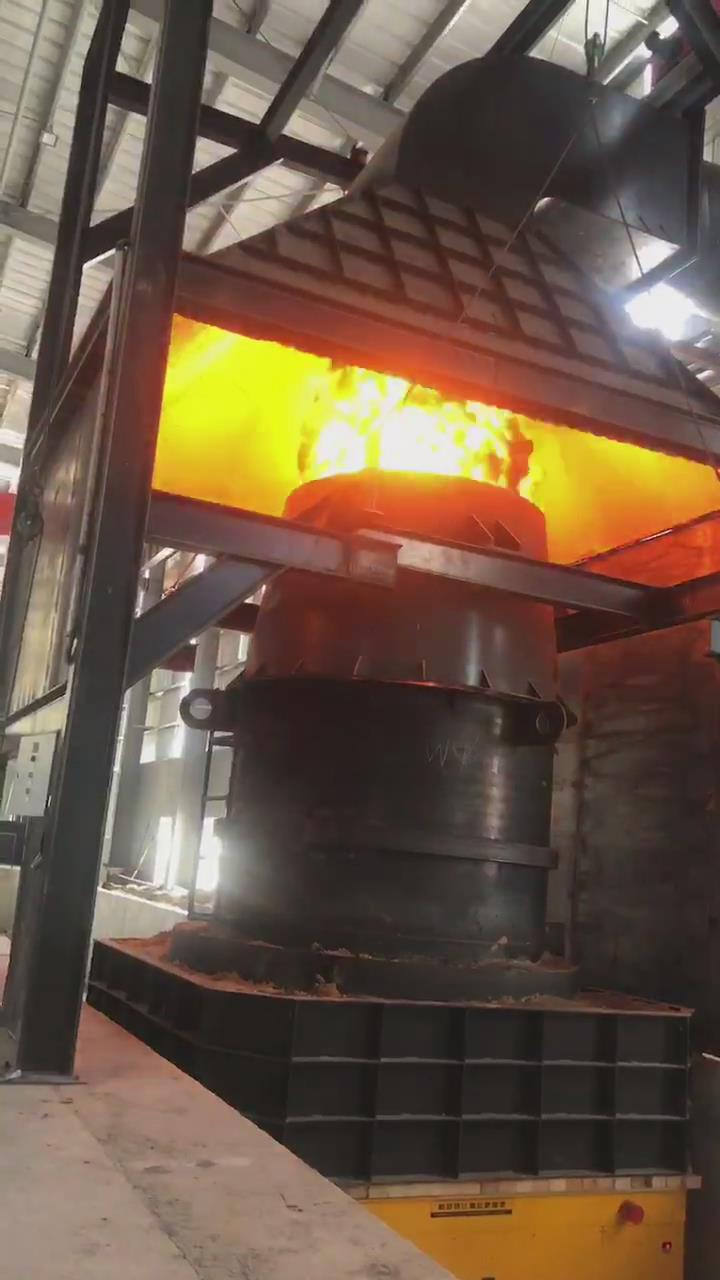

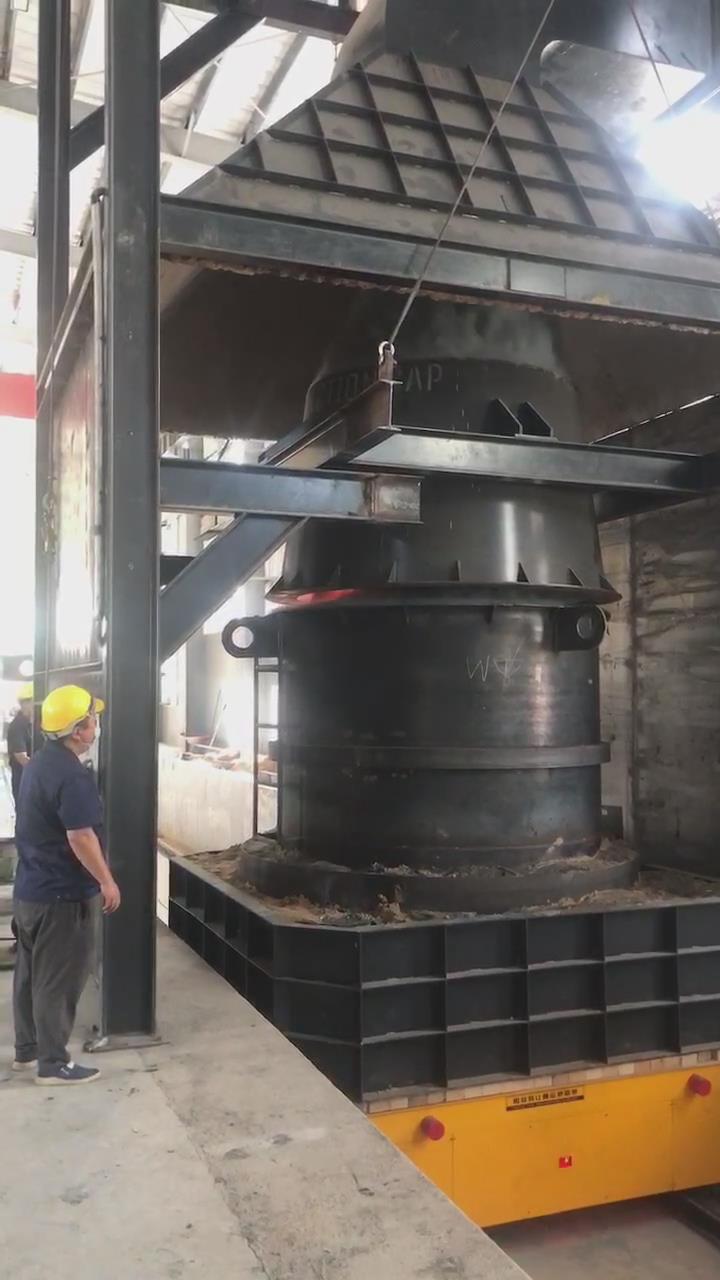

This transfer vehicle can directly transport hot materials such as castings, steel billets, steel coils, slabs, and molds from furnaces, heat treatment lines, or casting areas. All key components of the high-temperature transport vehicle, including structure, power system, insulation, and control unit, are customized and designed based on actual working temperature and working conditions.
1. Can operate continuously under extreme high temperatures
2. Stable performance and enhanced security protection
3. Comprehensive customization to adapt to the on-site production process .
Customized high-temperature transfer vehicles are widely used in:
Industrial Casting Manufacturing Workshop
Large steel and metallurgical plants
Heat treatment and forging production line
High temperature furnace accessories manufacturing workshop
Transfer of hot slab and steel billet between processes
1.Ambient temperatures exceeding 200–1000°C
2.Radiant heat damaging electrical components
3.Thermal deformation of standard steel structures
4.Rapid aging of cables, batteries, and motors
5.High safety risks for operators
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t | ||
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 | ||
| Ground requirement | Cement floor or Steel plate ground | ||||||
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 | ||
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 | ||
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 | ||
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 | ||
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 | ||
| Turning type | Turning while driving with no stop | ||||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 | ||
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) | ||
| Wheel material | ZG55+hydropurture | ||||||
| Running speed (m/min) | 0-15 | 0-12 | |||||
| Brake principle | Electric magnetic brake | ||||||
| Operation method | With wire or no wire | ||||||
| Charger's installation | Installed on cart | Split-type | |||||
| Charger's function | Automatic stop for obstacles | ||||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||||
| Warning equipment | Sound and light | ||||||
| Other functions | Turning light, night light and power display | ||||||
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
