Load capacity: 1-300 tons
Running Speed: 1-20m/min and can adjust speed
Rotation Accuracy: ±1 mm automatic positioning
Control System: PLC + encoder + position sensor
Power supply: cable power /battery power/Low voltage
Vehicle structure ：Countertop dimensions (mm):can be customized
Price ：varies depending on the load capacity. Click the button to inquire
A large heavy-duty turntable transport vehicle is designed specifically for industrial operations that require precise positioning of ultra long or heavy materials. Unlike standard transfer vehicles, this type of transfer vehicle allows large items such as steel beams, molds, or pipes to rotate on site without the need for cranes or additional handling equipment.
Full diameter turntable: capable of rotating heavy or oversized materials on site without the need for additional equipment.
Super large platform: supports materials that exceed the standard trolley size.
Reinforced heavy-duty chassis: ensuring stability under extreme weight conditions.
Optimized for confined spaces: the turntable allows for precise alignment in restricted workshop layouts.
Professional industrial applications: Very suitable for steel beams, molds, pipelines, and other long or heavy loads.
1.Steel Mills & Coil Workshops: Rotate and transport long steel beams, pipes, or coils efficiently.
2.Mold & Die Factories: Align heavy molds or dies for assembly or machining with minimal handling.
3.Pipes, Beams & Extrusions: Move and turn long materials in tight workshop layouts safely.
4.Assembly Lines: Easily change material direction to match workflow without extra space or cranes.
Q1: What is this product?
A: A heavy-duty transfer cart with a turntable that rotates and moves large or heavy items like steel beams, molds, or pipes.
Q2: What is the maximum load?
A: Usually 1–50 tons, customizable depending on your needs.
Q3: Can it be customized?
A: Yes. Platform size, turntable diameter, rotation speed, and other specs can be tailored. OEM/ODM supported.
Q4: How does the turntable work?
A: The turntable rotates heavy materials on-site, allowing safe and precise alignment without cranes.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

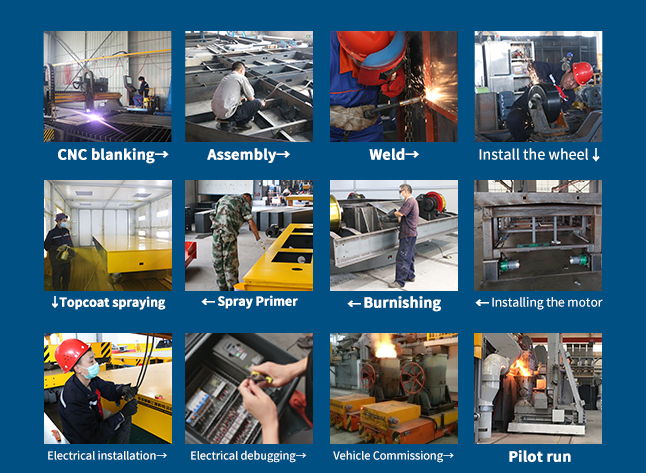

Design: Design the cart structure and power system according to customer requirements.
Material Preparation: Procure steel, motors, wheels, electrical components, and other parts.
Cutting & Processing: Cut, bend, and punch steel plates to shape.
Welding & Assembly: Weld the cart frame and install wheels and turntable.
Electrical Installation: Wire and install motors, batteries, and remote control system.
Testing & Commissioning: Perform no-load and load tests to check safety and performance.
Painting & Packaging: Apply surface coating, protective treatment, and package for shipment.
1.360° rotation, lateral / diagonal movement to easily cope with narrow spaces
2.High-efficiency movement: speed up to 20 m/min, customizable according to needs
3.Diverse power options: three types of power sources are available: battery, cable, and track
4.Turntable structure: Easily connect tracks or workstations in different directions without moving the entire vehicle
5.Precise positioning: can park at the designated workstation, suitable for automated production lines
