Load Capacity: 1-500 tons
Size：Can be customized to meet your needs
Motors: PMAC / AC high efficiency motors
Seat, shape：customizable
Tire types: solid tires/pneumatic tires/rubber tires
Price：depend on different tons and Customized options

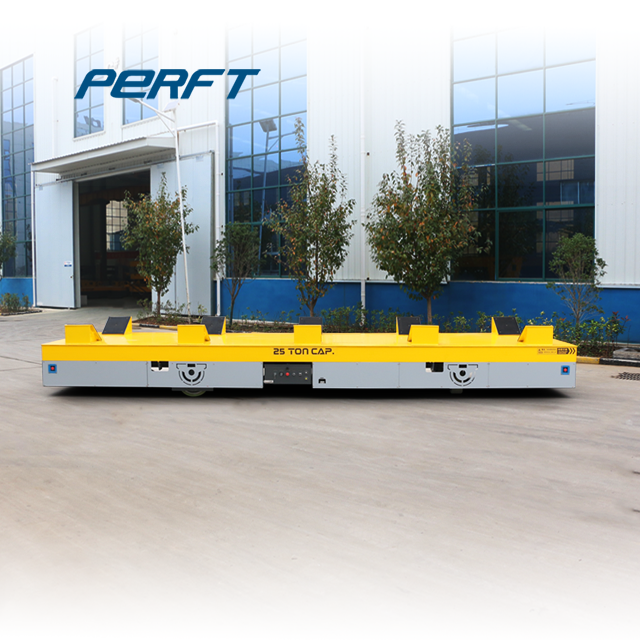

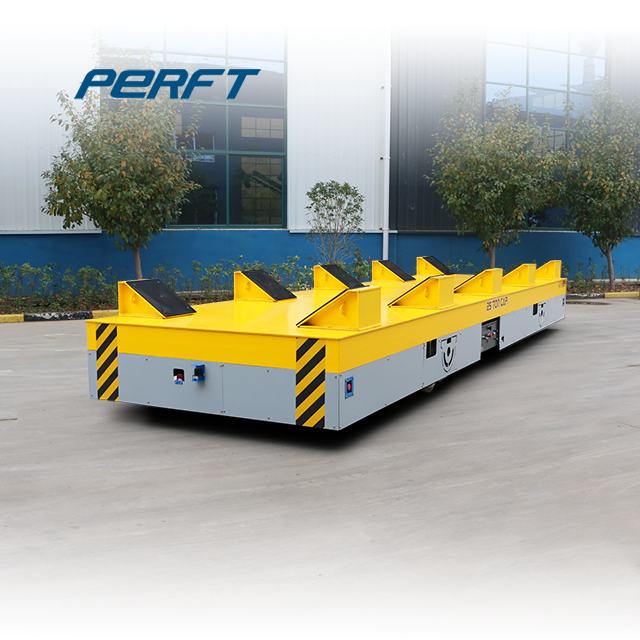

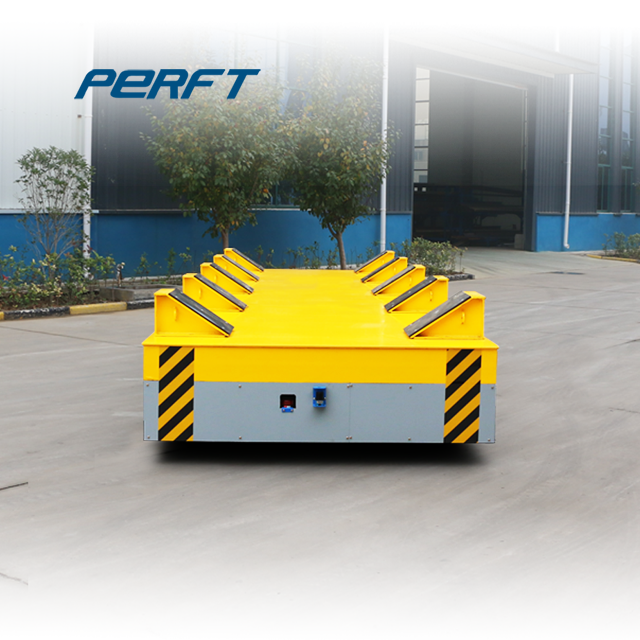

With a powerful carrying capacity of up to 500 tons, it can easily handle the heaviest materials. The sturdy design ensures its durability in harsh underground environments, while customizable features can meet specific project needs. Whether you need solid tires suitable for rough terrain or inflatable tires for smooth operation, this transport vehicle can flexibly adapt to your requirements.
High Load Capacity: Supports 1–500 tons, making heavy material transport effortless.
Customizable Design: Choose platform size, seat type, motor type, and tires according to your project.
Durable & Reliable: Built to withstand harsh underground conditions and heavy-duty use.
Easy to Operate: User-friendly controls ensure safe and efficient operation.
Versatile Tires: Options for solid, pneumatic, or rubber tires for different surfaces.
1.Adjust load capacity for your needs
2.Choose motor type: PMAC or AC high-efficiency
3.Select platform size and operator seat configuration
4.Pick tire type depending on surface conditions
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Charger's function | Automatic stop for obstacles | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning equipment | Sound and light | ||||
| Other functions | Turning light, night light and power display | ||||

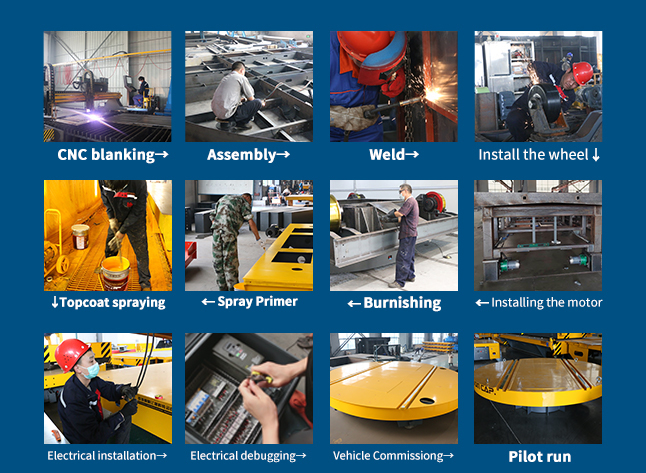

Design: Design the cart structure and power system according to customer requirements.
Material Preparation: Procure steel, motors, wheels, electrical components, and other parts.
Cutting & Processing: Cut, bend, and punch steel plates to shape.
Welding & Assembly: Weld the cart frame and install wheels and turntable.
Electrical Installation: Wire and install motors, batteries, and remote control system.
Testing & Commissioning: Perform no-load and load tests to check safety and performance.
Painting & Packaging: Apply surface coating, protective treatment, and package for shipment.
Application scenarios/Applications
1.Railway Inspection Perform routine checks on main and branch railway lines to detect track damage or loose components, ensuring safe operation.
2.Industrial Parks & Warehouses Inspect tracks within factories or warehouses to ensure smooth material handling and improve operational efficiency.
3.Port Track InspectionQuickly monitor port track systems, supporting lifting operations and reducing the risk of downtime.
