Load Capacity: 1-500tons
Speed: 0-20 m/min or asyour needs
power supply: Low-voltage rail, cable reel, battery
Wheels: Cast Steel Polyurethane Rubber Wheel
Warranty：1-2 years
Price：Depending on the tonnage and customization, please send to check the price.

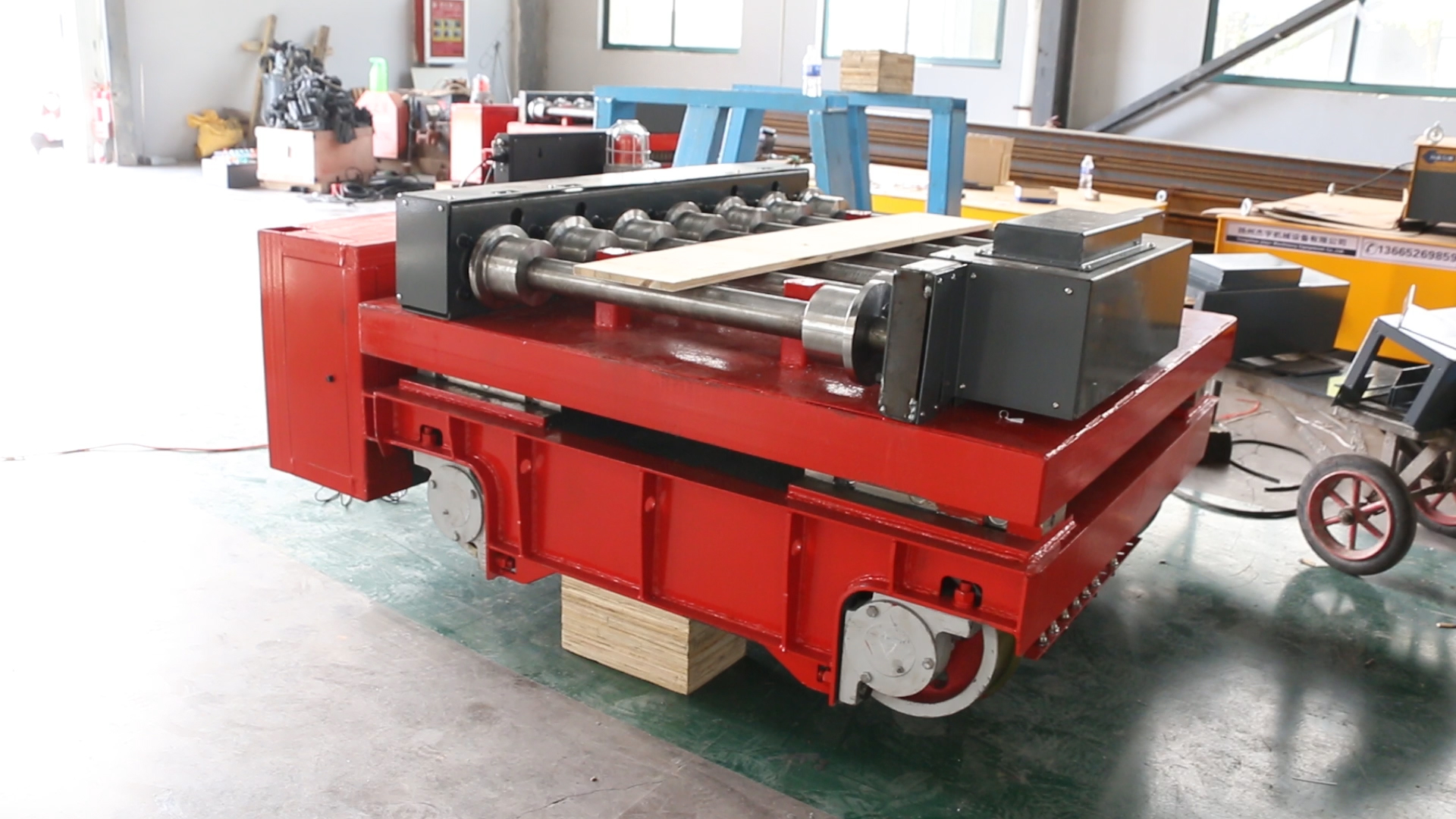

Roller transfer cart platform is designed specifically for efficient handling in industrial environments that require frequent transportation of materials. The transfer platform is equipped with a drum conveyor, which can smoothly transport materials on the vehicle to the next destination, thus achieving the function of transfer.
The raceway design allows goods to be easily pushed or positioned without the need for lifting equipment assistance. The spacing and material between the rollers can be customized to ensure stable movement under different loads
Transport the materials to the target location, where specially customized countertops transfer the goods directly to the conveyor or platform, improving workflow efficiency and reducing manual labor.
Loading and unloading are relatively convenient and fast
Can seamlessly integrate with the production line
Can significantly reduce reliance on forklifts or cranes
Stable structure for industrial use
Customizable designs for different applications
Small material transfer in assembly lines and production workshops
Fixed logistics routes for warehouses and factories
Material transfer between molds, pallets, and material handling areas
Material conveying on the conveyor line
| Modle | KPX-10T | KPX-30T | KPX-50T | KPX-80T | KPX-100T |
| Table Size (m) | 3.6*2.0*0.5 | 4.5*2.2*0.6 | 5.5*2.5*0.65 | 6.0*2.6*0.8 | 6.5*2.8*0.9 |
| Rail inner Gauge | 1435mm | 1435mm | 1435mm | 1800mm | 2000mm |
| Wheel Dia. | 350mm | 400mm | 500mm | 600mm | 600mm |
| Running Speed | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min |
| Motor Power | 1.6kw | 3.5kw | 5kw | 8kw | 10kw |
| Capacity | 180Ah | 250Ah | 330Ah | 400Ah | 440Ah |
| Volatge | 48v | 48v | 48v | 72v | 72v |
| Max Wheel Load | 42.6Kn | 110.4Kn | 174Kn | 278.4Kn | 343.8Kn |
| Reference weight | 4.2t | 6.8t | 8t | 12.8t | 14.6t |
| Recommend Rail | P24 | P38 | P43 | P50 | P100 |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
