Length 2-2.5 meters, width 1.2-1.5 meters
A manufacturing workshop requires a transportation solution to transfer heavy molds and components between workstations and storage areas. These materials need to move horizontally frequently along a fixed track, with a load capacity of 5 tons per transfer. This transportation plan needs to ensure stability, accuracy, and smooth operation under continuous industrial use.
The 5-ton Rail Transfer Cart was designed with the following key features:
Load Capacity: 5 tons
Flat Load Platform: Reinforced steel structure to evenly distribute heavy molds
Rail-guided System: Smooth movement along pre-installed industrial rails

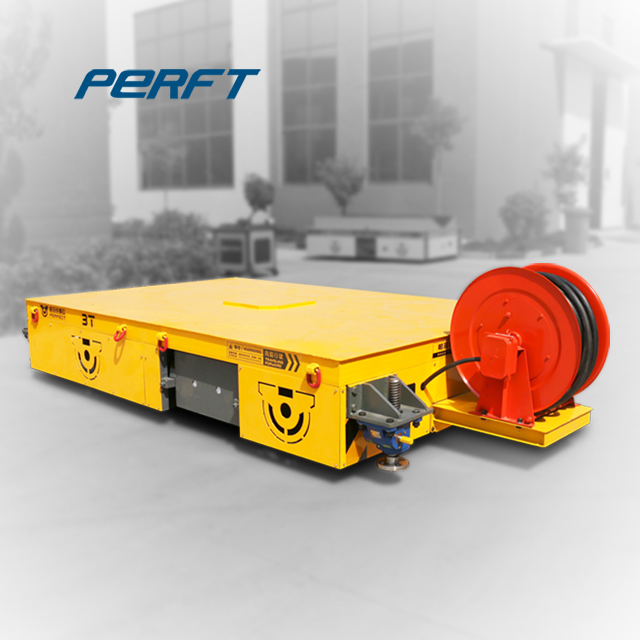

Power Supply Options: Electric motor with cable reel or busbar connection
Control System: Pendant control for precise positioning at workstations
The cart was customized to fit the workshop layout, including track spacing, platform dimensions, and power supply routing. Optional safety features, such as emergency stop and limit switches, were included for secure operations.
The trolley is installed along the workshop track system, allowing for frequent transfer of heavy molds without the need for manual handling.
The training is extremely simple and can be learned in just a few minutes
The reinforced platform can withstand a total load of 5 tons while maintaining stable and vibration free movement
Stable and Reliable Operation: Continuous operation with minimal maintenance
Precise Positioning: Load alignment at workstations was achieved with high accuracy
Labor Savings: Reduced manual transport of heavy molds, improving workflow efficiency
Custom Fit: Platform dimensions and track layout matched the factory’s specific requirements
