Load Capacity: 1-500 tons
Speed: 20 m/min or as your needs
Certificate: SGS, ISO9001, SASO
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Polyurethane Rubber Wheel

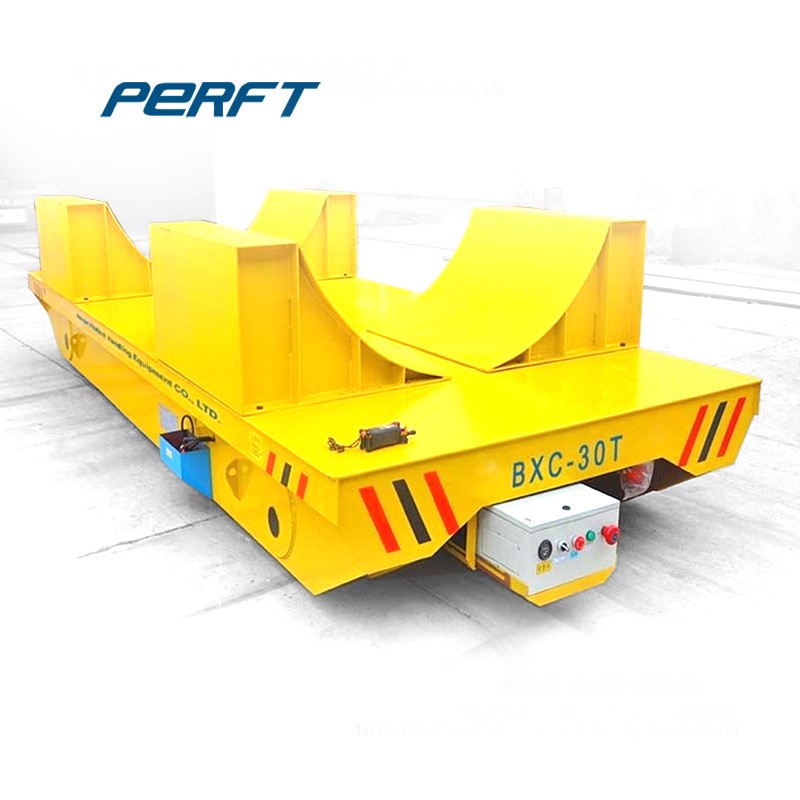

This rail transport vehicle is specifically designed for transporting heavy steel coils and rolled materials within industrial facilities. This transfer vehicle is equipped with track guidance, which ensures precise movement on workshop routes and reduces collision risks. Its sturdy frame, customizable platform, and durable wheel system make it an ideal choice for steel mills, metal processing plants, and material storage areas .
Heavy duty steel coil transportation: capable of safely moving steel coils of various sizes and weights.
Track guidance navigation: Ensure precise and repeatable movement on the workshop track, reducing human errors.
Durable Wheel Frame System: Designed for use in high load demand venues
Customizable platform: adjustable to accommodate different coil diameters and load shapes.
Safety and stability: Low center of gravity, braking system, and reinforced structure prevent overturning and material damage.
1.Reliable heavy-duty bearing: designed specifically for large steel coils, aluminum tubes, and other structured materials.
2.Non puncture operation: Solid tires or industrial wheels can minimize downtime to the greatest extent possible.
3.Safe and efficient: Track guidance design reduces collision risk and ensures smooth operation.
4.Customizable according to your facility: platform size, load capacity, and drive options can be adjusted according to workshop needs.
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 500 | 600 | 700 | 1000 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Running Distance (m) | 25 | 30 | 50 | 50 | 50 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production.They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
