Load Capacity: 10tons （1-500 tons）
Speed: 20 m/min or as your needs
Certificate: SGS, ISO9001, SASO
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Polyurethane Rubber Wheel

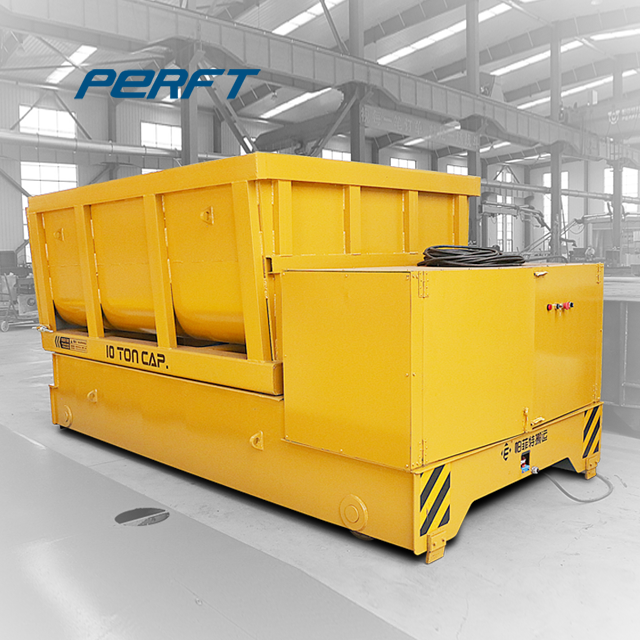

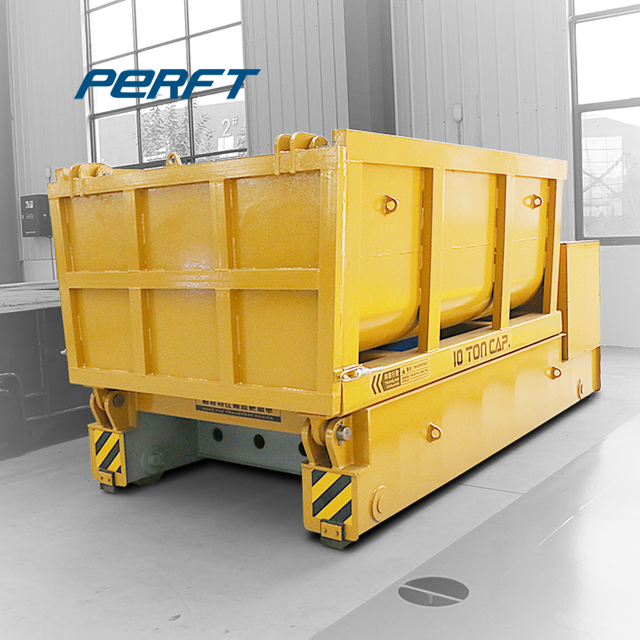

This 10 ton enclosed side wall electric transfer vehicle is specifically designed as a field specific transfer vehicle for medium and heavy loads that cannot be safely transported on open flatbed trucks
In the handling process of many factory workshops, 10 tons of material are not all individual solid blocks, but stacked parts, boxed components, or irregular components. During transportation, these materials are prone to lateral movement, edge sliding, and partial overturning - risks that open platform transfer vehicles cannot control structurally.
This model solves this problem through a structural shell rather than accessories.
Unlike open or low edge transfer vehicles, this model uses full-length steel sidewalls designed to:
Capable of resisting horizontal load movement caused by inertia
Place the material inside the platform casing and move it smoothly during transportation
Allow repeated transportation without the need to re fix the load each time
The side walls serve as a passive load control system, making this cart suitable for continuous and repetitive transportation cycles.
Boxed but not fixed to pallets
Stacked metal components
Semi-finished assemblies with uneven weight distribution
Industrial parts requiring contained transport without wrapping
If the load can be safely moved on an open flat cart, this model is not necessary.
If load containment is required, this model is the correct choice.
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 500 | 600 | 700 | 1000 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Running Distance (m) | 25 | 30 | 50 | 50 | 50 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
