Hydraulic Lifting Rail Transfer Cart: Working Principle & Key Benefits for Warehouses
To cut labor costs and boost material handling efficiency, lifting rail transfer carts are widely used in warehouses, factories, and docks. This guide explains their working principle

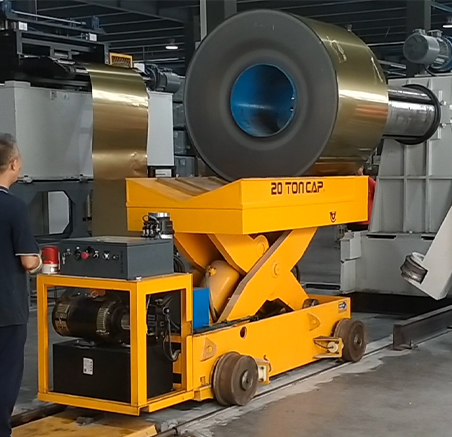

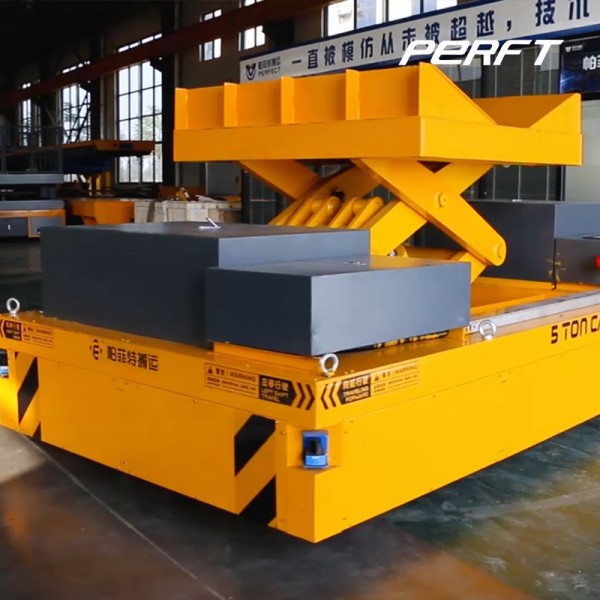

What Is a Hydraulic Lifting Rail Transfer Cart?
The lifting rail transfer cart is a widely used material transport device, consisting of three key parts:
- The welded-steel lifting platform (for carrying goods) offers strong strength and stability;
- Its hydraulic drive system (electric pump + oil cylinder) uses hydraulic oil to control the platform’s lifting motion;
- The track guidance system (linear/curved rails) ensures the cart’s stable horizontal movement.
lifting cart Step-by-Step Working Principle
The lifting rail platform car’s table lifting follows these key steps:
- Activate the pump station: Start the electric pump station using the remote control’s handle or button.
- Deliver hydraulic oil: The pump station sends hydraulic oil to the cylinder, increasing internal pressure to push the piston up or down.
- Raise the platform: Hydraulic oil is sent to the cylinder’s upper chamber; hydraulic force moves the piston down, lifting the platform.
- Lower the platform: Oil is directed to the cylinder’s lower chamber; hydraulic force pushes the piston up, lowering the platform.
The working principle of the lifting rail transfer cart is simple and clear, and it is easy to operate. It can adjust the lifting height as needed to meet the operating needs of different places. At the same time, its transportation efficiency is high. which can effectively improve material transportation efficiency and reduce manpower investment. Therefore, it has been widely used in modern logistics systems.
Key Benefits for Your Operations
In short, the lifting rail transfer cart is a powerful material transportation equipment. It uses the lifting system and track guidance system to realize the lifting and horizontal movement of goods, providing an effective solution for material transportation.
Need a custom lifting rail transfer cart for your warehouse/factory? Our stable, high-efficiency models fit 1-10T loads—send an inquiry to get a tailored quote.
Case 1: E-commerce Smart Warehouse — Multi-Height Shelf Adaptation Customization
User Requirement: A top-tier e-commerce warehouse needed to connect 3 shelves of different heights (200mm, 400mm, 600mm respectively) for transporting 1.2×1m standard pallets. The key demands were fast lifting speed and low noise.
Customization Solution:
Adjust the lifting range to 100mm-600mm (supports multi-gear precise adjustment);
Customize the platform size to 1.3×1.1m (perfectly fits standard pallets), with anti-slip pads added to the edges;
Upgrade the hydraulic system to a low-noise pump (operating noise ≤45dB) to meet the warehouse’s quiet operation requirements;
Upgrade the battery life to 12 hours to support the warehouse’s two-shift operation.
Application Effect: Shelf space utilization increased by 30%, pallet transfer speed shortened from 5 minutes per trip to 2 minutes per trip, and warehouse sorting efficiency improved by 40%.
-
Q: What’s the maximum load capacity of this cart? A: It typically supports 1–20 tons (customizable up to 30 tons based on your material weight needs).
-
Q: What’s the lifting height range? A: The standard range is 10–500mm; we can customize it to 800mm for docking with different-height equipment (e.g., conveyor belts, shelves).
-
Q: Do I need professional training to operate it? A: No—its operation is simple (controlled via a remote handle/button), and we’ll provide a 15-minute on-site guide for basic use.
-
Q: How often should the hydraulic system be maintained? A: Check hydraulic oil level monthly; replace oil and clean the cylinder every 6 months (for daily 8-hour use).
-
Q: Can it run on curved rails? A: Yes—we can adjust the track guidance system to fit curved rails (radius ≥3m) for narrow warehouse
