Load Capacity: 1-500 tons (customized for industrial material handling)
Control mode：Automation control
Certificate: SGS, ISO9001, SASO
Power supply : Low voltage rail, battery, cable reel
Positioning Accuracy: ±2 mm (for smooth 90° rail alignment)

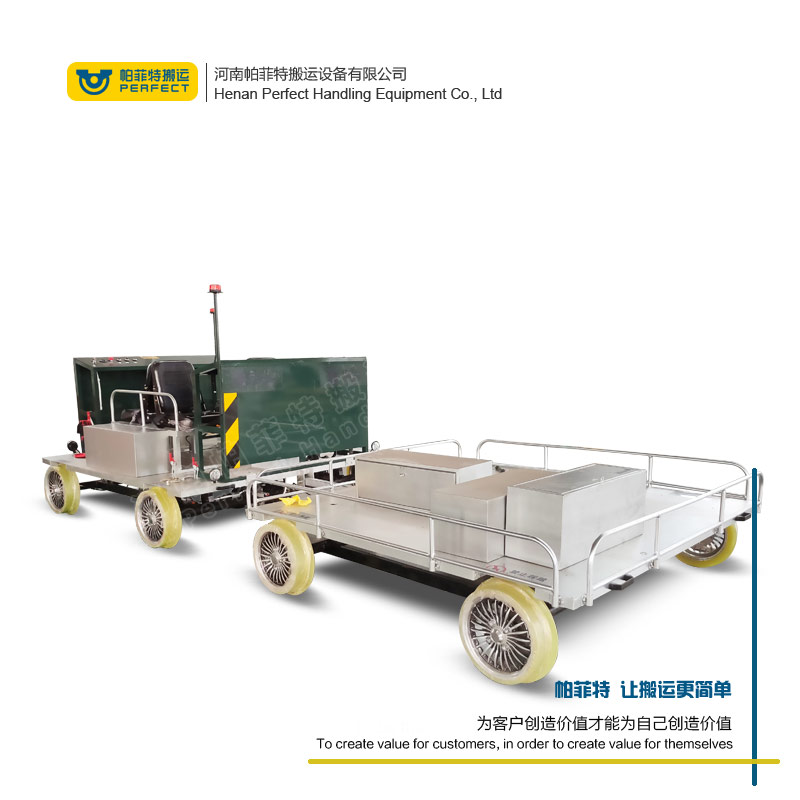

The track inspection car with trailer for industrial track maintenance is specifically designed for factory track systems that require regular inspections and on-site maintenance support.

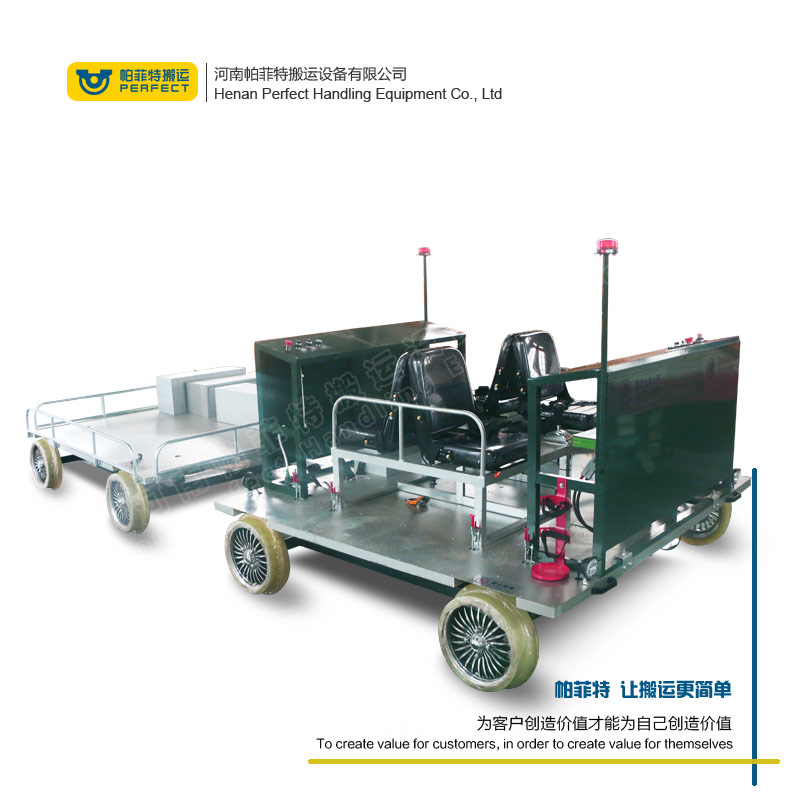

The track inspection vehicle can be composed of a manned track inspection vehicle, and a trailer can be added at the back of this vehicle to facilitate material transfer for track inspection personnel, or for areas where people and objects need to move together between fixed points. The trailer at the back allows inspection personnel to patrol the railway line while transporting tools, spare parts, and maintenance materials in one operation.
The maintenance team usually needs to carry:
Toolbox and measuring instruments
Spare fasteners, track clamps, and small components
Lubricants, cleaning tools, and consumables
This is the best way for people to transport goods. In some places, people need to be transported together with the goods to the transport site. At this time, the vehicle carrying people and goods plays a great role in helping the site improve transportation efficiency
.
| BXC-2T | BXC-20t | BXC-50t | BXC-100t | BXC-150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
Turntable Rail Transfer Cart is suitable for a variety of applications, such as round rails, vertical rails, cross rails, and more.
Turntable Rail Transfer Cart runs smoothly and has high rail connection accuracy, the PLC can be installed to meet fully automated electrical operation.
