Industrail Trailer

Load Capacity: 1-1500 tons

Speed: 20 m/min or ad your needs

Certificate: SGS, ISO9001, SASO

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Packaging Details:HS Code:87168000
Product name: trailer company
Packing with tarp and wooden case

Description

Description:

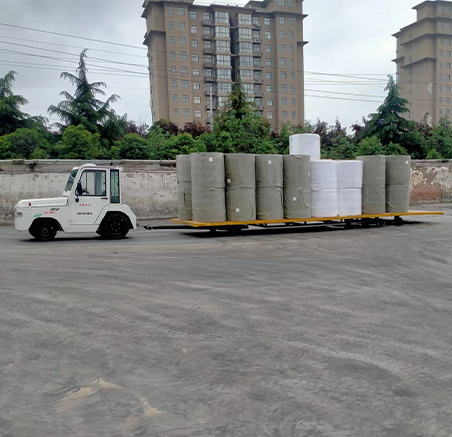

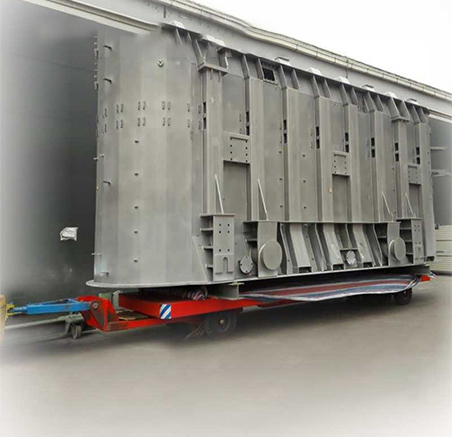

The Trailer Company is important equipment for modern logistic transportation, which is very effective and simple way to improve the production efficiency. The Trailer Company cart has several advantages, such as high bearing capacity, high efficiency, and lower cost. Usually one or more Trailer Company could be towed by one tractor. The Trailer Company is widely used in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor.

This Trailer is connected with the tractor by a pin, which is easy to be removed. The tow bar could be installed both the front and the tail of the trolley. The four wheels are connected by steel bars to assistant to the turning. This kind of trolley has been applied in many fields for transportation during the warehouse and workshop, which has been defined as cost savings, labor savings and highly secure during in use.

The industrial traileris driven by manual or other power machine,  According to the condition, you can choose track or trackless type transfer cart to work with the tractor.BWT transfer cart has several advantages, such as high bearing capacity, high efficiency, and lower cost. It's very effective and simple way to improve the production efficiency.
Boosting driven device and traction device is optional if it's necessary.

Advantages:

1) It adopts heavy duty base plate structure , turning flexible and stable and small turning radius.

2) The main moving parts are made of high strength wear-resistant alloy bushing, safe and reliable, convenient of maintenance.

3) Standard high quality iron core rubber tires, free of maintenance, and enhance the bearing capacity and service life of trailer.

4) Several airport luggage trailer could be towed together

5) Airport luggage trailer applies balance beam for the wheels to make the trailer available on the uneven ground

Application:

Battery four wheels steering transport trailer for cargo carrier is suitable for a lot of areas, such chemical industry, household appliances, ceramics, metal, machinery, logistics and other industries. And it is widely used for short distance transport of paper making, paint, metallurgy, mound machinery and other industries.

Feature:

1. Traction connecting bolt is equipped with chain connection to prevent bolt loss.

2. The trailer is equipped with lifting hooks and lifting rings.

3. All the rods are made to order, which improves the turning accuracy and has beautiful appearance.

4. Trailer equipped with uneven road surface adjustment device.

5. The height of the drawbar can be automatically adjusted or fixed to any height.

6. Trailer steering is a traction rod steering, which drives all wheels to steer, reduces the turning radius and solves the problem of turning in small space.

7. The tractor table steel plate adopts patterned steel plate, which increases friction force and effectively solves the problem of goods sliding off.

8. All traction trailer wheels are sealed, and material handling is not limited by rain and snow road surface and water surface.

9. The cart is welded with Q245 steel plates, all of which are designed for excessive arc angles and grinding of edges and corners to avoid injury to operators.

The load capacity, table size, color of the Trailer Company all can be customized.

1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.

Parameters

Model  BWT-2t BWT-5t BWT-10t BWT-20t BWT-30t BWT-45t BWT-60t
Rated Load(t)  2 5 10 20 30 45 60
Table Size (mm)  2000*1500 2500*1500 3000*2000 4000*2000 5000*2200 6000*2400 6000*2500
Height (mm)  500 600 700 750 800 850 950
Wheel Quantity 4 4 8 8 12 12 12
Tire Specification  254*102 305*165 559*254 22*9-10 22*9-10 22*10-16 22*14-16
Tire Material  Press-on solid tire Press-on solid tire Press-on solid tire Press-on solid tire Press-on solid tire Press-on solid tire Press-on solid tire

Process

  • 360 degree motorized rotation without causing any damage to the floor.

  • Powered by storage battery, turning freely without any cable strings.

  • Controlled easily by pressing the buttons and speed controller.

  • High level automation(self propelled/steerable)

  • The largest capacity can reach to 100t

  • Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)

  • Robust sturdy car frame

Notes

  • 1 The load capacity, table size, color of the Pallet transfer trailer all can be customized.
  • 2 The rated load capacity: we will design according to the needs of the tonnage;
  • 3 Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
  • 4 Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
  • 5 You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.

Application

The transfer trailer is important equipment for modern logistic transportation, which is very effective and simple way to improve the production efficiency. The transfer trailer has several advantages, such as high bearing capacity, high efficiency, and lower cost. Usually one or more transfer trailer could be towed by one tractor. It can running on rails and cement floor.

The transfer trailer is widely used in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor. The transfer trailer is suitable for a lot of areas, such chemical industry, household appliances, ceramics, metal, machinery, logistics and other industries. And it is widely used for short distance transport of paper making, paint, metallurgy, mound machinery and other industries.
