Load Capacity: 20tons customize（ 1-300 tons）
Dimension:customized according to your requirements
Speed: 20 m/min or as your needs
Control mode: remote control/fully automated
Wheels: Cast Steel /Polyurethane Rubber Wheel
Power supply：Battery powered/cable reel powered/ low-voltage track powered
Price： based on different tonnage ， send us the tonnage for inquiry

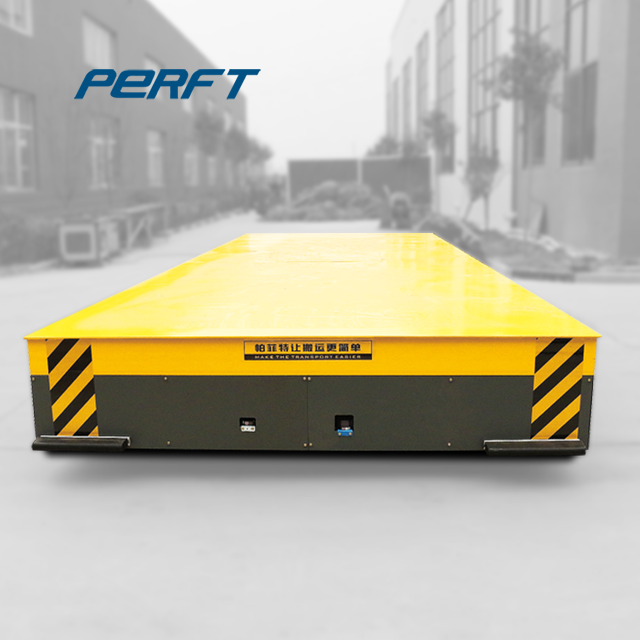

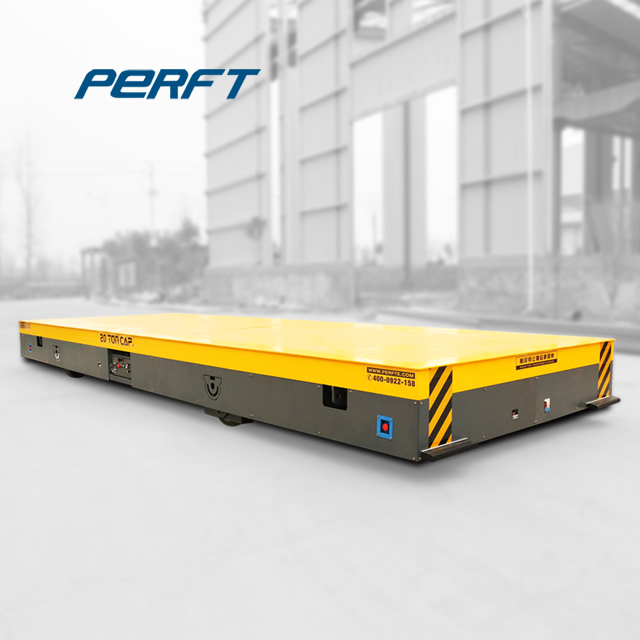

Long Platform Heavy Load Transfer Trolley is designed for efficient transport of long and heavy materials in industrial environments. The extended platform allows safe handling of steel beams, pipes, molds, and other oversized items. Its reinforced frame ensures stable movement even under maximum load.
Extra-long platform accommodates large or irregularly shaped materials.
Reduces the need for multiple handling operations or cranes.
Can be customized in length, width, and load capacity according to production needs.
Supports high-weight materials while maintaining stability and smooth movement.
Reinforced steel chassis ensures long-term durability under repeated heavy-duty operation.
Load capacity and wheel type can be adapted for indoor or outdoor environments.
Can operate on fixed rails or trackless systems.
Available with manual, wired, or wireless remote control options.
Smooth start/stop mechanisms reduce load shift and protect both materials and trolley.
| Model | 2T | 20T | 50T | 100T | 150T |  |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quality | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for one Charge (Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P24 | P43 | QU100 | QU100 |
The carrying capacity can reach 300 tons
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
Heavy duty freight rail cars have a long running time
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
The Transfer trolley manufacturer transfer trolley is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pieces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The heavy load electric battery transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
