Load Capacity:20 tons （1-300 tons）
Dimension:customized according to your requirements
Speed: Adjustable speed up to 20 m/min
Control mode: remote control/fully automated
Wheel Type: Cast steel wheels or polyurethane rubber wheels (application-based selection)
Power supply：cable reel powered
Price：Varies based on tonnage; please provide your load requirements for inquiry

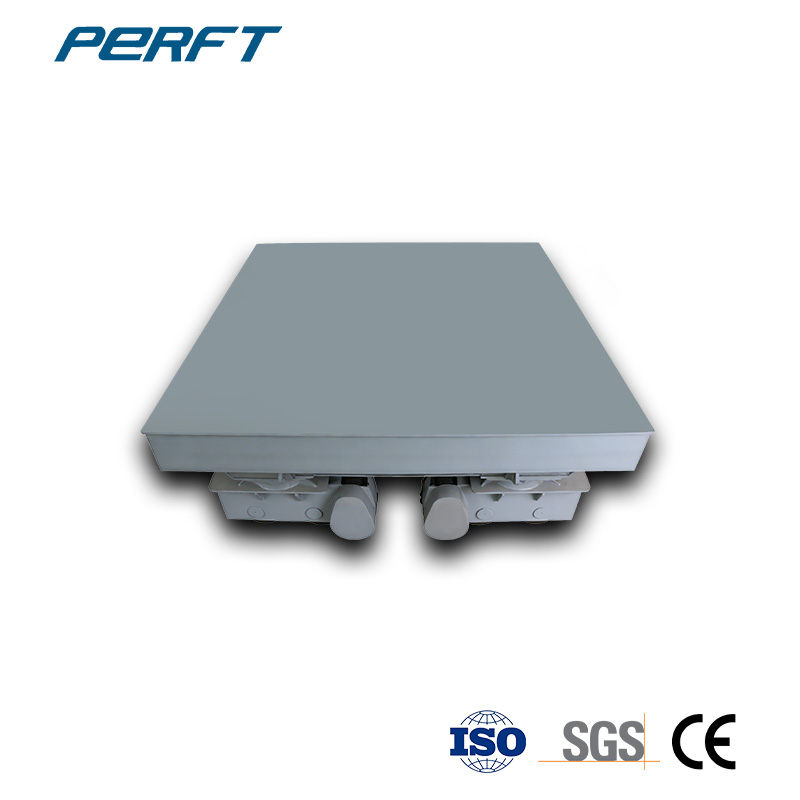

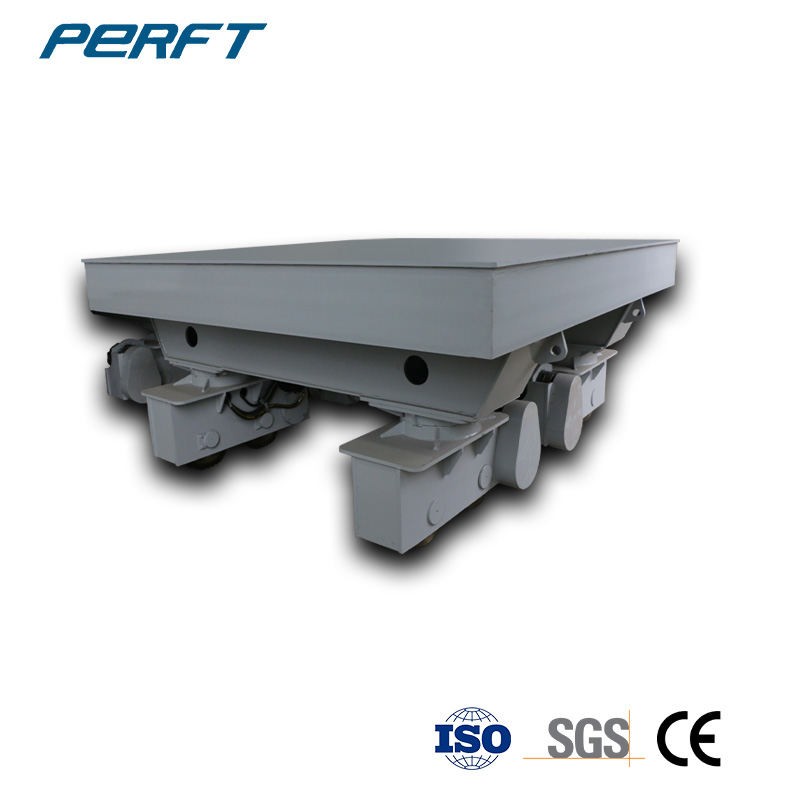

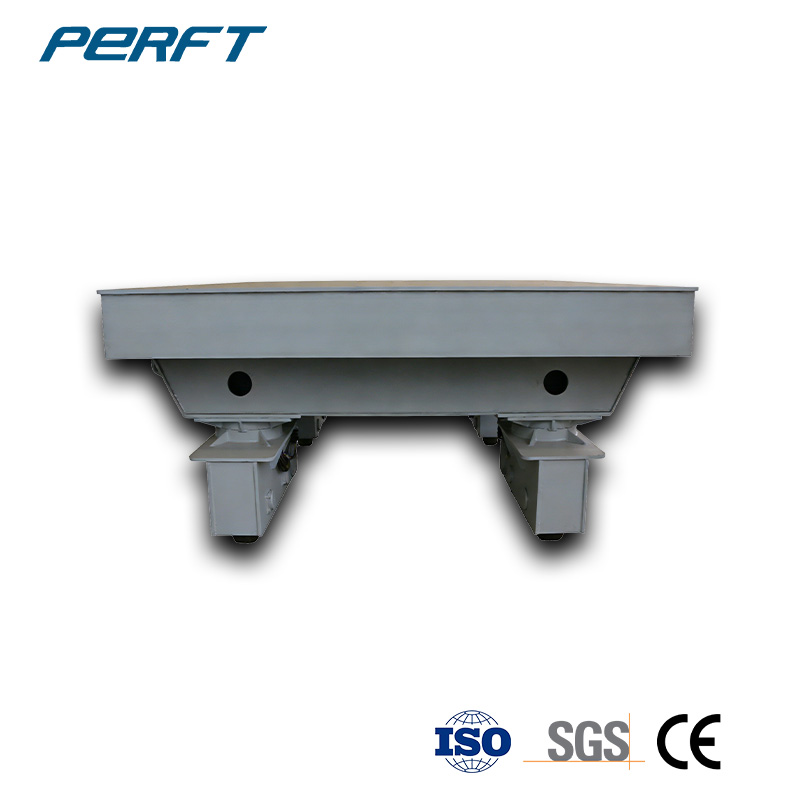

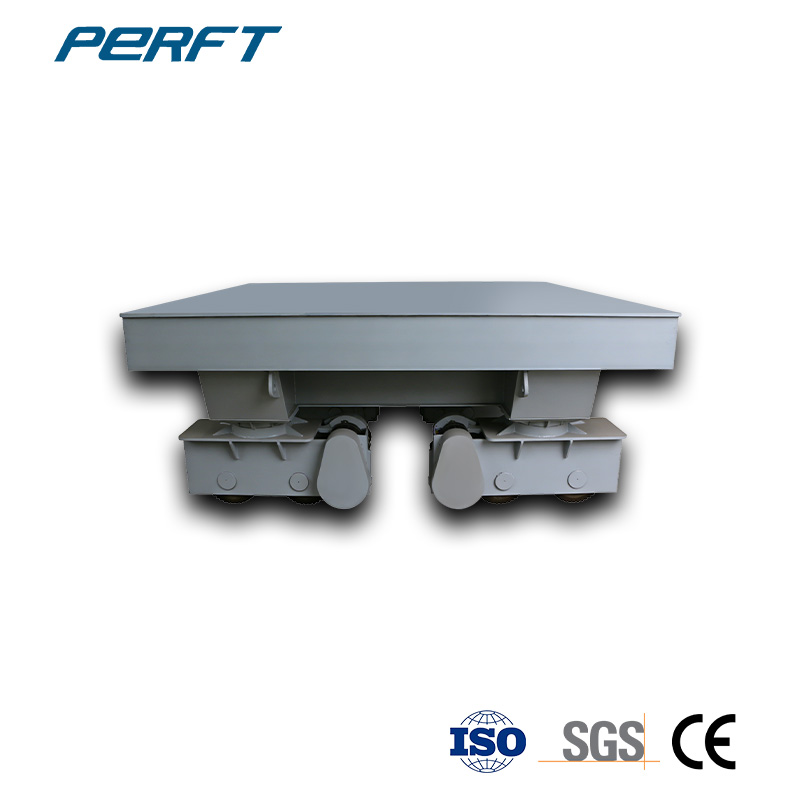

The 10T capacity railway transfer vehicle equipped with cable reel power supply is designed for heavy-duty material handling applications that require stable power, continuous operation, and fixed travel routes.
This type of transport vehicle does not require additional charging, but is powered by an integrated cable reel system, making it the best choice for long-distance and heavy-duty materials
The rated load capacity of the track type transfer vehicle is 10 tons, widely used in factories, workshops, and production lines where heavy materials such as molds, steel structures, and equipment need to move safely and efficiently along the track .
Predictable movement along a fixed route
Smooth acceleration and braking in orbit
The mobile positioning accuracy between workstations is relatively high
Reduce the risk of deviation or tilt during operation
The track system is also perfectly matched with the cable reel mechanism, allowing the power cable to smoothly extend and retract during operation.
20 ton load capacity
Designed to carry heavy materials and equipment, ensuring stable operation under full load conditions.
Railway guided travel
It operates on a fixed track, ensuring accurate movement along a predetermined route and reducing the risk of deviation.
Mobile scroll power supply
The integrated mobile scroll provides continuous power, eliminating downtime caused by battery charging and enabling long-distance travel.
Stable steel structure
The reinforced framework ensures strength, durability, and long-term reliability in heavy industrial environments.
Controlled speed and braking
Allow smooth acceleration, deceleration, and safe braking.
| Model | 2T | 20T | 50T | 100T | 150T |  |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quality | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for one Charge (Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P24 | P43 | QU100 | QU100 |
The carrying capacity can reach 300 tons
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
Heavy duty freight rail cars have a long running time
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
The Transfer trolley manufacturer transfer trolley is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pieces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The heavy load electric battery transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
