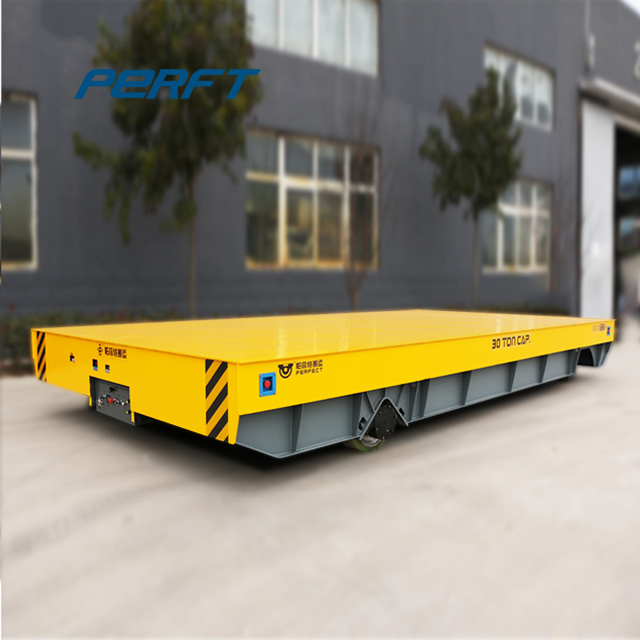

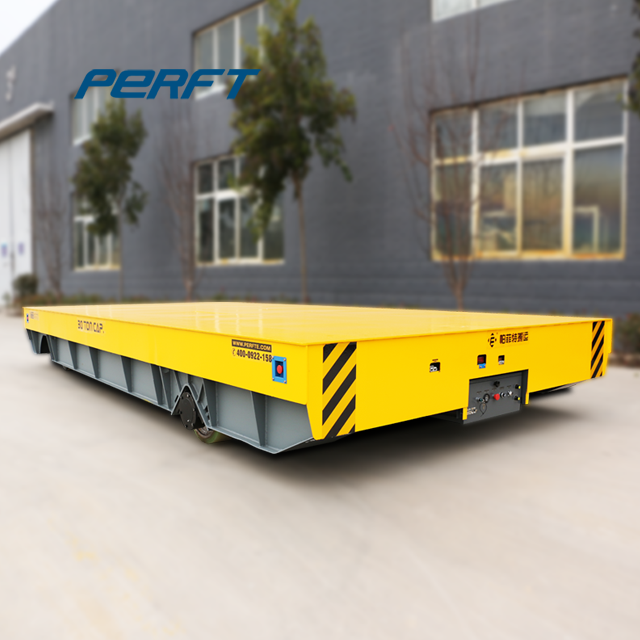

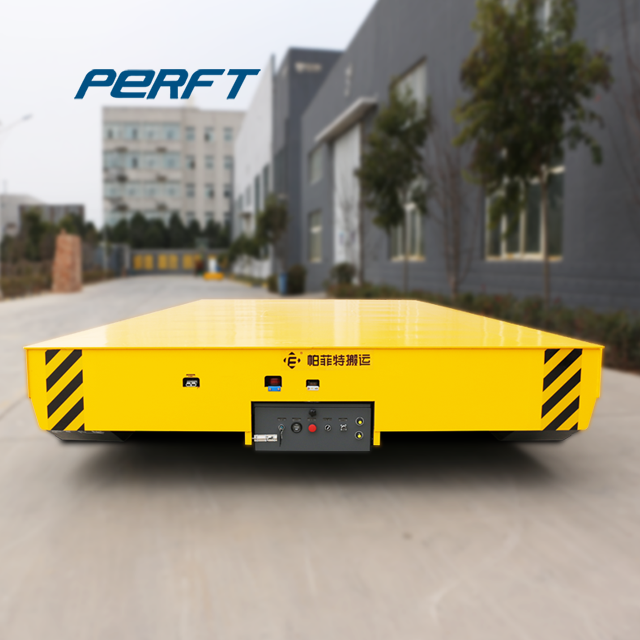

This Heavy Load Rail Transfer Cart is designed specifically for transporting heavy materials and components in shipyards and shipbuilding industries. This transport vehicle, with its sturdy track system and high load-bearing capacity, can ensure the smooth, efficient, and safe transportation of large equipment and raw materials in the production area, significantly improving operational efficiency.
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Wheel
Advantage: peculiar set-up makes the transfer cart save cost and operate more
Perfect can be customized with different load capacities, platform sizes, navigation systems, and functional configurations to meet specific production requirements.
Transfer vehicles play a crucial role in modern shipyards. For manufacturers of large equipment such as shipyards, the problems during the transfer process are very troublesome. Heavy material transfer vehicles can ensure the safe and smooth movement of heavy materials and large ship components. Most shipyards need to handle oversized steel plates, hull sections, engines, and other large structures, which cannot be efficiently completed by manual labor or traditional forklifts. Heavy transport vehicles provide stable and controllable transportation on the track, reducing the risk of accidents and protecting valuable components during movement.
The Heavy Load Rail Transfer Cart is designed for transporting heavy materials and industrial components along fixed rail systems.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

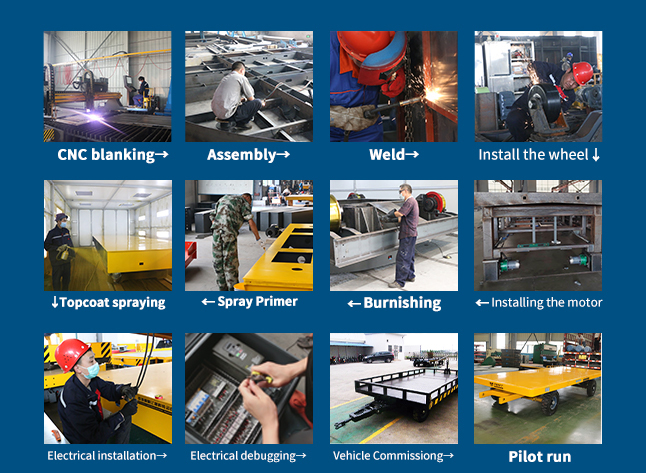

Our transfer carts are manufactured through a systematic production process to ensure reliable performance, durability, and operational safety. From raw material cutting and structural assembly to welding, component installation, surface finishing, and electrical commissioning, every step is carefully controlled. Each transfer cart undergoes comprehensive testing and a pilot run before delivery to ensure it meets the required specifications and operating conditions.
1.Customized of Lifting Platform.
2.The material handling vehicle can be designed to travel on steel rail bars or they can be operated directly on the floor of your facility.
3. 1Ton to 300 Ton capacity range.
4.Push and Pull operation or completely motorized.
5.Full steer-ability or controlled direction of motion.
6.Custom shaped table size to suit your application.
7.Lifting fixtures available for simple transportation.
8.Fully automated controls, wireless control system, or a fixed pendant.
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
1.Improve workflow efficiency: accelerate material turnover, shorten production cycles, and increase overall production capacity
2.Improve homework safety: stabilize the transportation of heavy components and reduce the risk of accidents during operation.
3.Reduce labor costs: Reduce the need for manual handling and increase the degree of automation.
4.Realize precise positioning: Ensure accurate arrival of materials at assembly and welding stations, and improve process quality.
5.Adapting to harsh industrial environments: With a sturdy structure and reliable performance, it meets the high-intensity operational needs of shipyards.
