Load Capacity: 20tons customize（ 1-300 tons）
Dimension:customized according to your requirements
Speed: 20 m/min or as your needs
Control mode: remote control/fully automated
Wheels: Cast Steel /Polyurethane Rubber Wheel
Power supply：Battery powered/cable reel powered/ low-voltage track powered
Price:based on different tonnage ,send us the tonnage for inquiry

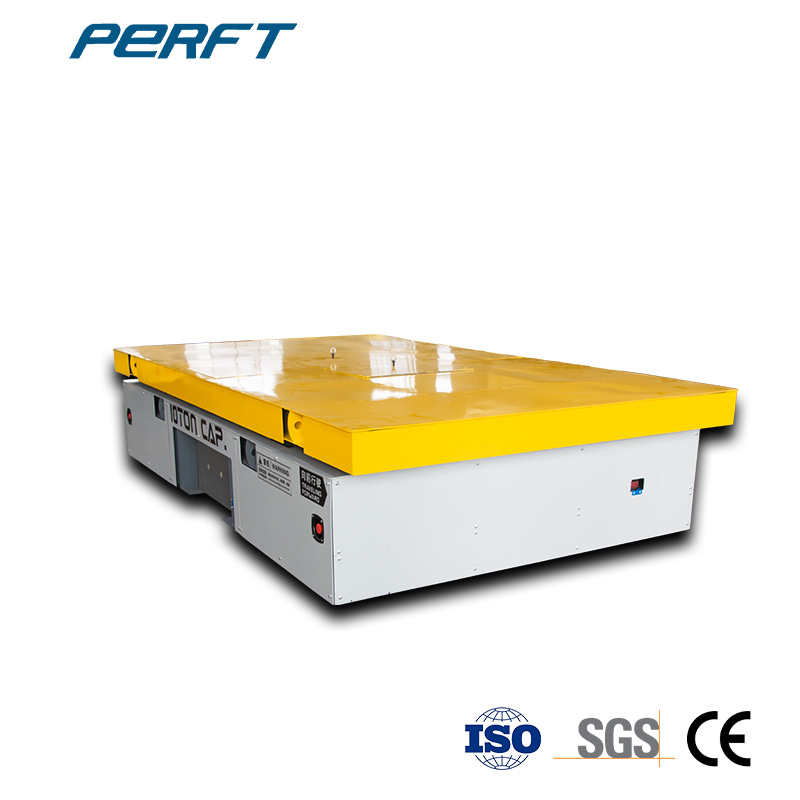

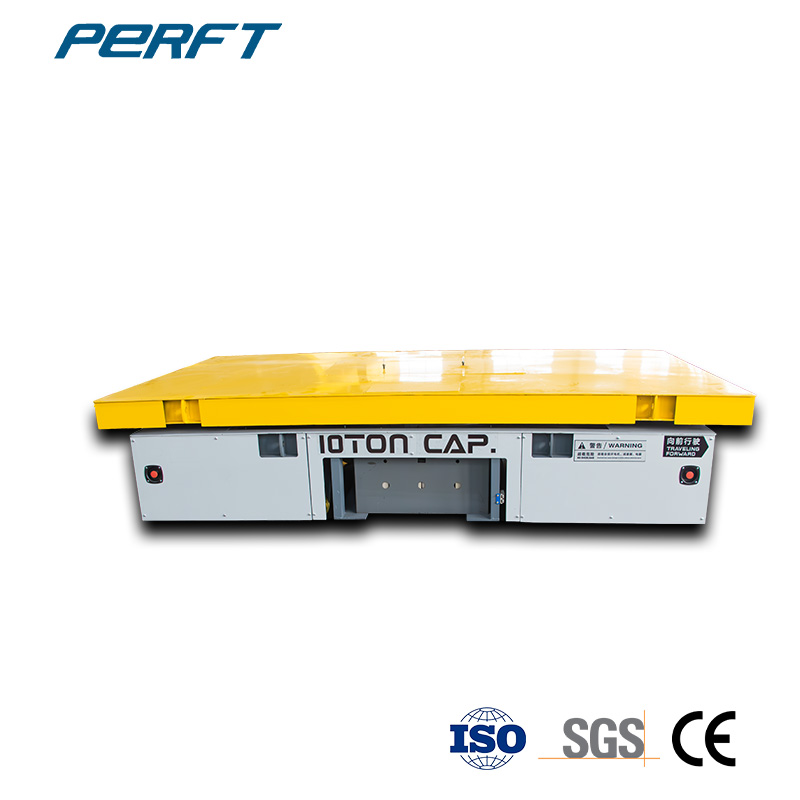

The turntable material handling vehicle is designed to efficiently and flexibly transport heavy materials in factories and workshops.
The rotary table allows for precise alignment of materials without the need for manual repositioning, improving workflow efficiency.
Suitable for various industrial materials, including plates, molds, pipes, and other heavy or oversized items.
1.The cart is equipped with a rotary platform that can rotate 360° or a fixed angle to facilitate material positioning.
2.Reduces the need for cranes or additional handling equipment when turning heavy or long items.
3.Rotation can be manual or motorized depending on the model, allowing flexibility for different workflows.
1.Reinforced steel frame supports heavy loads.
2.Low center of gravity ensures stability during rotation and transport.
3.Platform size can be customized to fit the dimensions of the materials being handled.
1.Emergency stop system for immediate halt.
2.Sound and light alarms during rotation or movement.
3.Anti-slip platform surface and side safety rails to protect operators and materials.
| Model | 2T | 20T | 50T | 100T | 150T |  |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quality | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for one Charge (Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P24 | P43 | QU100 | QU100 |
The carrying capacity can reach 300 tons
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
Heavy duty freight rail cars have a long running time
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
The Transfer trolley manufacturer transfer trolley is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pieces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The heavy load electric battery transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
