Load Capacity: 20tons customize（ 1-300 tons）
Dimension:customized according to your requirements
Speed: 20 m/min or as your needs
Control mode: remote control/fully automated
Wheels: Cast Steel /Polyurethane Rubber Wheel
Power supply：Battery powered/cable reel powered/ low-voltage track powered
Price： based on different tonnage ， send us the tonnage for inquiry

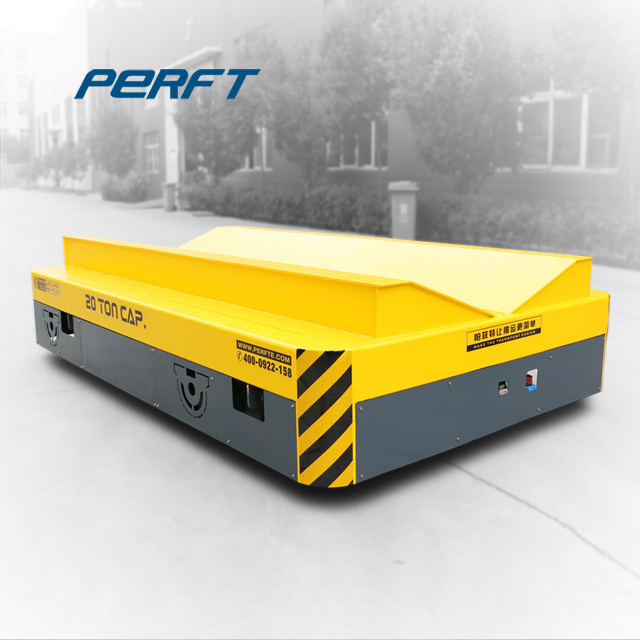

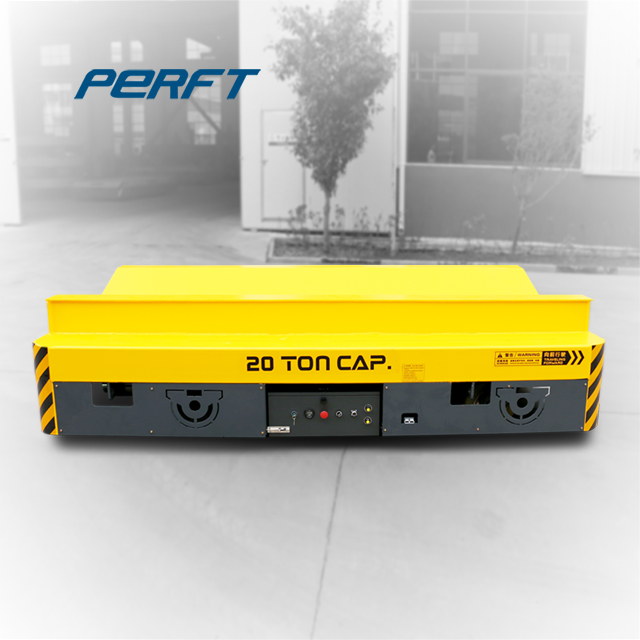

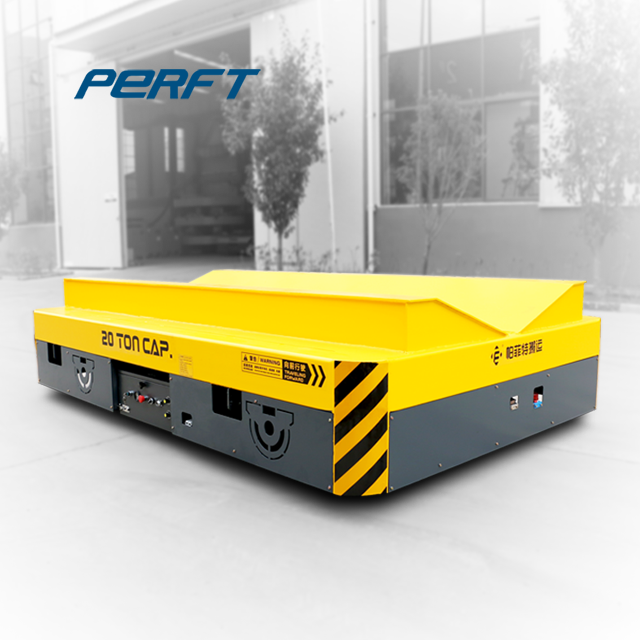

The 20 ton remote-controlled battery trackless transport vehicle is a flexible, efficient, and user-friendly transport tool designed specifically for medium and heavy-duty transportation in industrial workshops. This trackless transport vehicle is powered by rechargeable batteries, wirelessly controlled, and can operate without tracks, providing maximum maneuverability in complex factory layouts.
This transfercart is very suitable for workshops that require frequent route changes, narrow aisles, or point-to-point transportation of heavy materials up to 20 tons.
1. No need to lay tracks
This type of trackless vehicle is different from track guided vehicles, as trackless transfer vehicles operate directly in the factory workshop, eliminating track installation costs and allowing for easy layout adjustments.
2.Flexible operating trajectory
The vehicle is equipped with a wireless remote control system that supports forward, backward, steering, and precise positioning, making it suitable for small enclosed spaces
3. Stable battery power supply
Car batteries can ensure stable operation without dragging cables, improve safety, and achieve smooth long-distance movement.
1.Transportation of steel components
2.Molds and molds
3.mechanical parts
4.Heavy equipment and components
Our vehicle's various accessories and facilities can be customized according to your needs
| Model | 2T | 20T | 50T | 100T | 150T |  |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quality | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for one Charge (Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P24 | P43 | QU100 | QU100 |
The carrying capacity can reach 300 tons
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
Heavy duty freight rail cars have a long running time
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
The Transfer trolley manufacturer transfer trolley is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pieces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The heavy load electric battery transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
