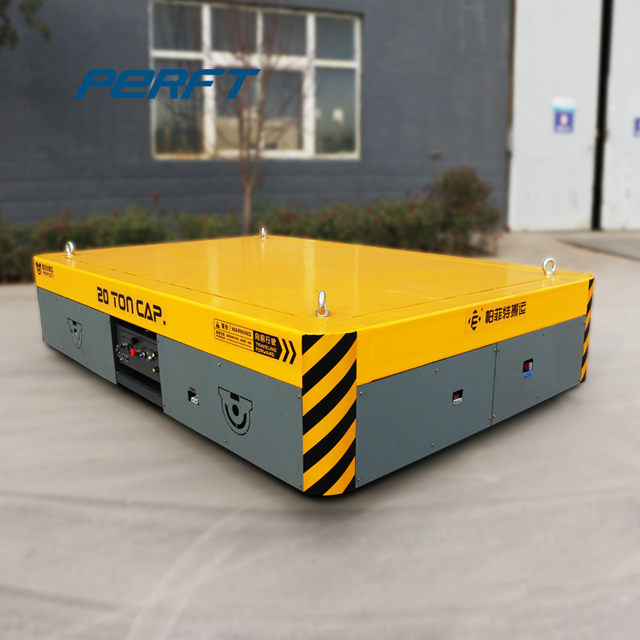

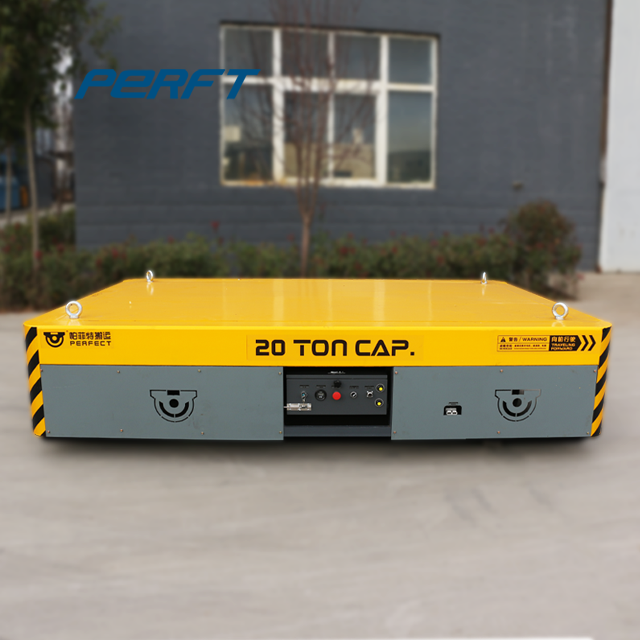

Ring & Hook Pallet Transfer Trolley

  • Load Capacity: 1 – 500 tons

  • Travel Speed: 1 – 20 m/min

  • Motors: PMAC or AC high-efficiency motors

  • Wheels: Cast steel / Polyurethane / Rubber (optional)

  • OEM & ODM: Supported

  • Application: Heavy-duty material transfer in workshops

  • Price: Determined by configuration and customization level

Send E-mail Get Price
Download Pdf

Description

Production overview

A pallet transfer cart is a heavy-duty industrial car designed for safe and reliable transportation of pallet loads. Equipping with lifting rings and hooks is beneficial for factories to secure materials during movement, reduce accidents, and improve handling efficiency. It is suitable for workshops, factories, and warehouses that handle heavy or bulky goods.

Advantages

1.Secure Load Handling: Lifting rings and tie hooks keep pallets or materials stable during transport.
2.Heavy-Duty Construction: Reinforced steel frame and industrial wheels provide durability and long-term reliability.
3.Flexible Operation: Available in track or trackless versions, adapting to different workshop layouts.
4.Ease of Use: Smooth start and stop functions, with optional remote control for convenient operation.
5.Low Maintenance & Eco-Friendly: Electric-powered models produce no emissions and require minimal upkeep.

Structural & Safety Design

Reinforced flat platform for stable material support.

Lifting rings and rope hooks allow safe fastening of pallets, coils, or irregular loads.

Optional safety features include emergency stops, anti-slip surfaces, and alarms.

Parameters

Type BDG-2t BDG-20t BDG-50t BDG-100t BDG-150T 86f3dd57624aa362425bedcc6388dad
Bated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Process

  • 360 degree motorized rotation without causing any damage to the floor.

  • Powered by storage battery, turning freely without any cable strings.

  • Controlled easily by pressing the buttons and speed controller.

  • High level automation(self propelled/steerable)

  • The largest capacity can reach to 100t

  • Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)

  • Robust sturdy car frame

Notes

  • 1 Load capacity ,table size and rail gauge can be customized
  • 2 Options : Remote radio control (imported or made in China )
  • 3 Automatic stop when detecting obstacle or person ,limit switches (to limit travel)
  • 4 Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )
  • 5 motor (DC motor with brush and DC motor brushless )
  • 6 Electrical parts (imported or made in china )

Hot Products

Busbar Powered Transfer Cart

Towed cable powered industrial rail material transportation and transfer vehicle, a heavy-duty material friendly transfer vehicle

Custom Trailing Cable Powered Transfer Cart

Rail Powered Transfer Trolley（low-voltage rail power）

Cable Drum Powered Transfer Cart

20-ton rail transfer cart for steel coil handling - industrial material transport solution

Ladle Transfer Cart

Get A Free Quote

Please feel free to give your inquiry in the form below .We will reply you in 24 hours .

    • Load Capacity:
    • Whether car is self -propelled:
                                                                   If yes ,the power is from:
    • Table size:
    • Traveling distance:
      Use Place:
    • Name*:
      Email*:
    • Phone:
      Country:
    • Message:

    Application

    The battery powered transfer car is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.

    The transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
