Load Capacity: 1-500 tons (customized for industrial material handling)
Control mode：Automation control
Certificate: SGS, ISO9001, SASO
Power supply : Low voltage rail, battery, cable reel
Positioning Accuracy: ±2 mm (for smooth 90° rail alignment)

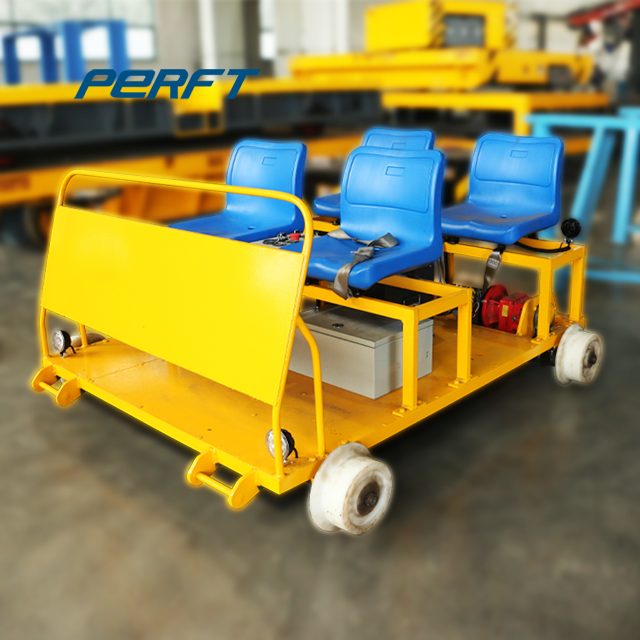

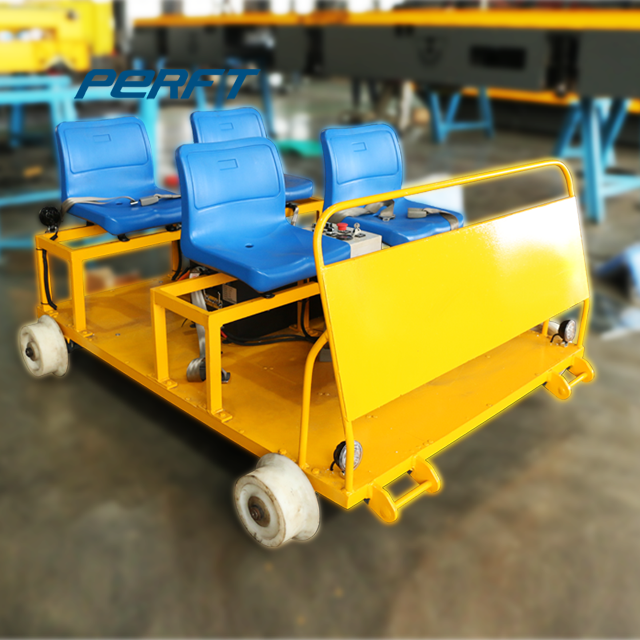

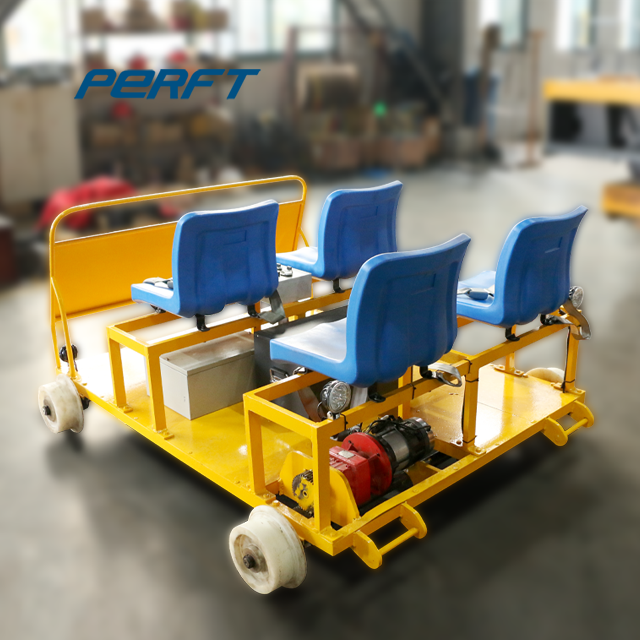

The Industrial Rail Track Inspection Vehicle is designed for routine inspection and patrol of factory and workshop rail systems.
It provides a stable, rail-guided platform for maintenance personnel to inspect rail conditions, identify potential issues, and support daily rail maintenance tasks in industrial environments.
Unlike railway inspection vehicles used for public transport systems, this vehicle is specifically developed for industrial rail lines, where transfer carts, ladle cars, or material handling vehicles operate under heavy loads and high frequency.
In industrial plants, rail tracks are exposed to:
Heavy loads from transfer carts
Frequent start-stop operations
Dust, metal debris, and harsh working conditions
Without regular inspection, issues such as rail deformation, loose fasteners, and uneven alignment may occur, increasing safety risks and maintenance costs.
An industrial rail track inspection vehicle allows maintenance teams to monitor rail conditions efficiently and systematically, helping prevent unexpected failures and production interruptions.
Designed Specifically for Routine Industrial Rail Inspection
This vehicle is purpose-built for daily and periodic inspection of industrial rail lines, rather than material transportation.
Its structure, speed range, and operating logic are optimized to allow operators to observe rail conditions closely while moving along the track.
| BXC-2T | BXC-20t | BXC-50t | BXC-100t | BXC-150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
Turntable Rail Transfer Cart is suitable for a variety of applications, such as round rails, vertical rails, cross rails, and more.
Turntable Rail Transfer Cart runs smoothly and has high rail connection accuracy, the PLC can be installed to meet fully automated electrical operation.
