Load Capacity: 1-500 tons (customized for industrial material handling)
Control mode：Automation control
Certificate: SGS, ISO9001, SASO
Power supply : Low voltage rail, battery, cable reel
Positioning Accuracy: ±2 mm (for smooth 90° rail alignment)

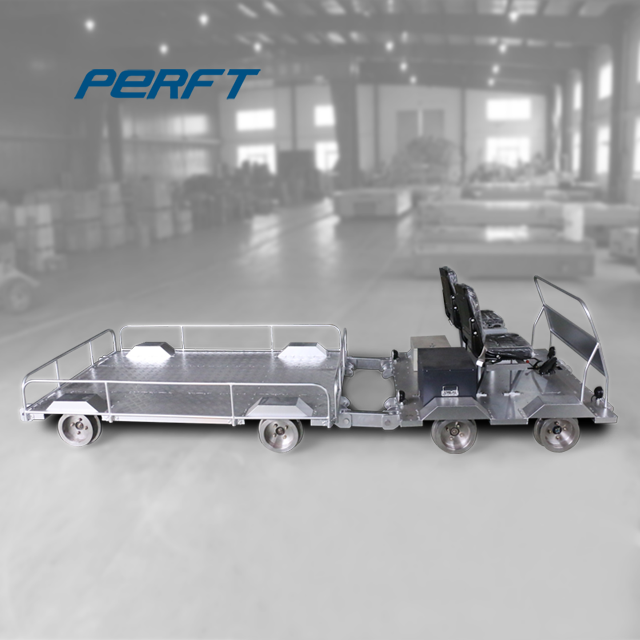

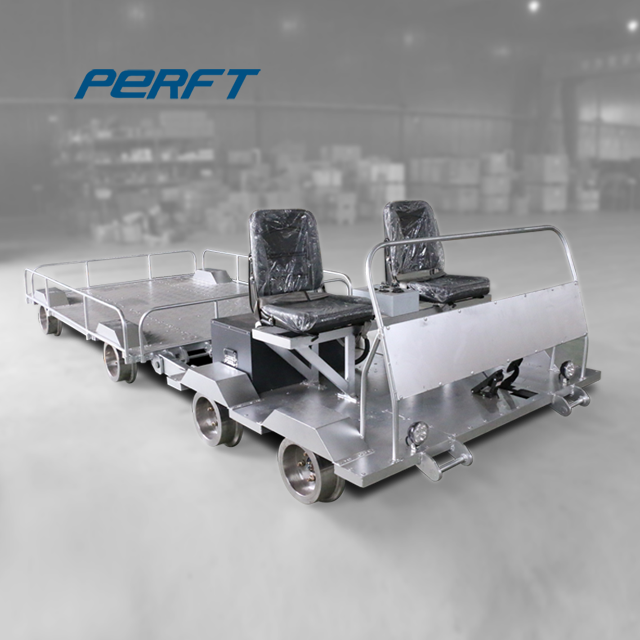

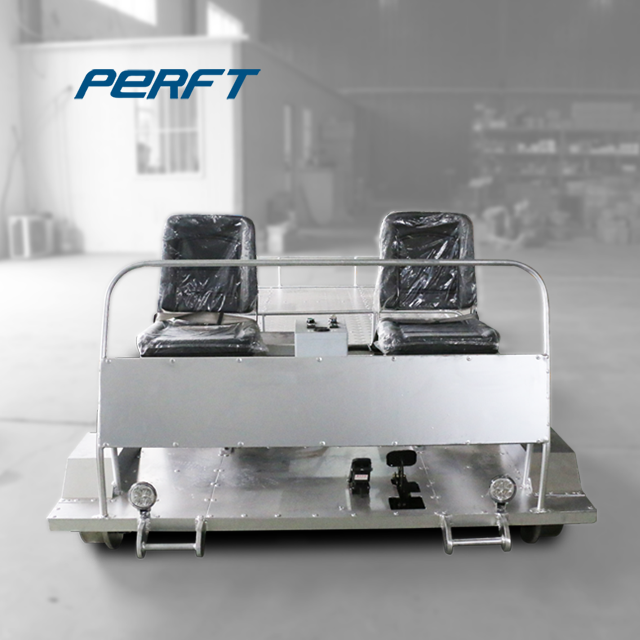

The track inspection vehicle with a loading platform is designed for industrial track systems that require both routine track inspections and light material transportation. It is convenient and user-friendly. Unlike standard track inspection vehicles that are only used for patrols, this vehicle is equipped with a rear or integrated loading platform, allowing operators to carry maintenance tools, spare parts, or small materials during inspection tasks, or a vehicle model that can be customized to carry weight
It is widely used in factories, steel mills, foundries, and heavy industry workshops, where rail transport vehicles operate frequently and must be regularly inspected for track condition.
Maintenance personnel often need to carry:
inspection tool
Fasteners and spare parts
Lubricants and cleaning materials
Small components for on-site maintenance
Occasionally, there may be materials that need to be transported to supplement between product routes
Without a loading platform, tools must be manually transported or delivered separately, which increases inspection time and labor intensity.
The track inspection vehicle with a loading platform allows for inspection and material transportation to be completed in one trip, significantly improving maintenance efficiency.
To match different industrial rail systems, the vehicle can be customized in terms of:
Rail gauge and wheel structure
Load platform size and capacity
Seating or standing operator design
Power supply type (battery, cable, rail power)
Safety devices such as guardrails, emergency stop, and warning lights
Customization ensures the inspection vehicle fits seamlessly into existing rail infrastructure.
| BXC-2T | BXC-20t | BXC-50t | BXC-100t | BXC-150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
