Load Capacity: 1-500 tons (customized for industrial material handling)
Control mode：Automation control
Certificate: SGS, ISO9001, SASO
Power supply : Low voltage rail, battery, cable reel
Positioning Accuracy: ±2 mm (for smooth 90° rail alignment)
Efficient and Safe Rail Inspection for Your Industrial Facility

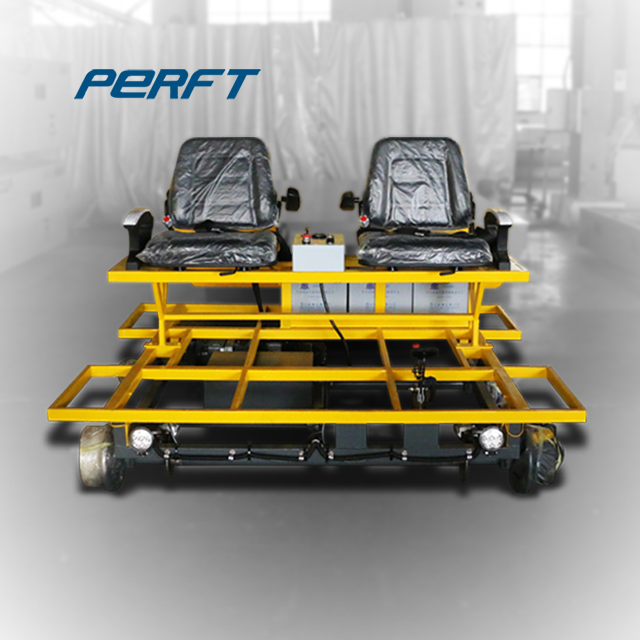

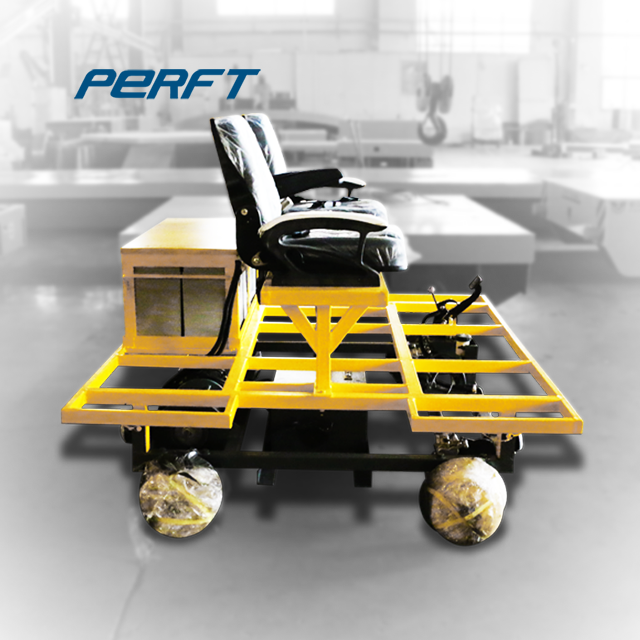

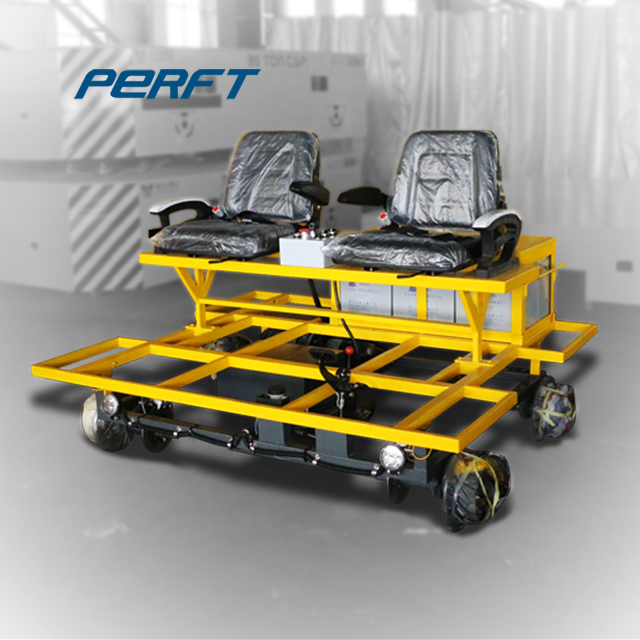

Industrial rail systems require constant monitoring to maintain safe and efficient operations. The Track Inspection Vehicle for Industrial Rail Maintenance allows maintenance teams to inspect rails quickly and safely, carry necessary tools, and ensure the smooth operation of your factory’s rail system.
Key Benefits:
Reduce manual walking inspections
Spot rail issues before they cause downtime
Carry inspection tools and spare parts with ease
Inspection-Focused Low-Speed Operation
Designed specifically for industrial rail maintenance, this vehicle moves at controlled low speeds for precise inspection, allowing operators to check joints, fasteners, and rail alignment closely.
Ergonomic Operator Platform
The man-riding platform provides a comfortable and safe position for operators during long inspection patrols, with clear visibility to detect issues quickly.
Tool & Light Material Support
Equipped with an optional tool or material platform, operators can carry spare parts, lubricants, and small equipment needed for on-site adjustments during patrol.
Compact Design for Industrial Rails
The vehicle fits easily in narrow corridors, sharp curves, and confined workshop areas, ensuring inspection without disrupting daily operations.
Reliable and Low-Maintenance
Built for heavy industrial conditions, it is simple to operate, easy to maintain, and avoids unnecessary complexity.
| BXC-2T | BXC-20t | BXC-50t | BXC-100t | BXC-150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
Turntable Rail Transfer Cart is suitable for a variety of applications, such as round rails, vertical rails, cross rails, and more.
Turntable Rail Transfer Cart runs smoothly and has high rail connection accuracy, the PLC can be installed to meet fully automated electrical operation.
