Load Capacity: 1-500 tons (customized for industrial material handling)
Control mode：Automation control
Certificate: SGS, ISO9001, SASO
Power supply : Low voltage rail, battery, cable reel
Positioning Accuracy: ±2 mm (for smooth 90° rail alignment)
The track inspection cart can be applied to steel plants, foundries, machinery plants, and heavy-duty manufacturing workshops for transporting materials and equipment.

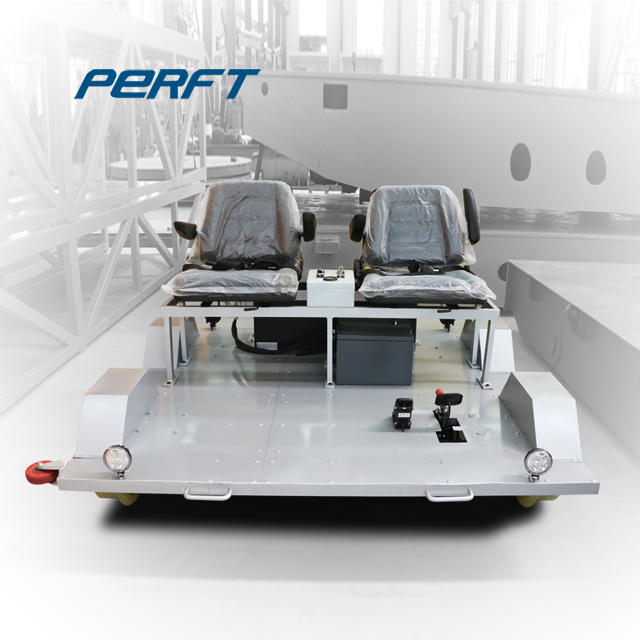

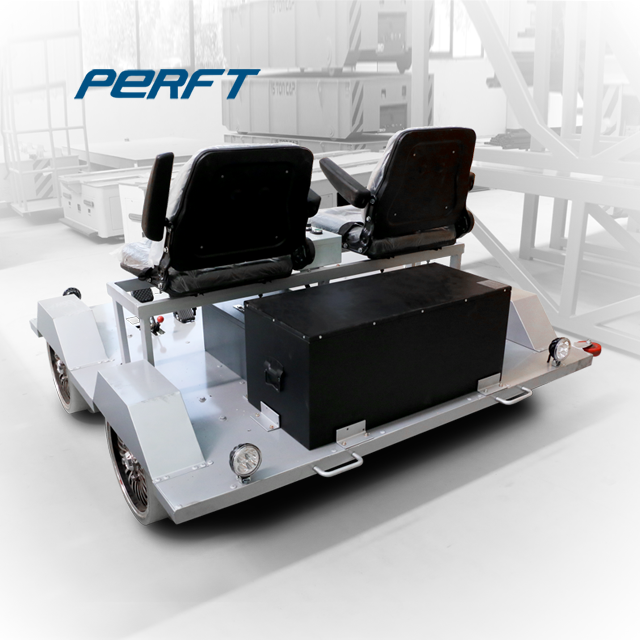

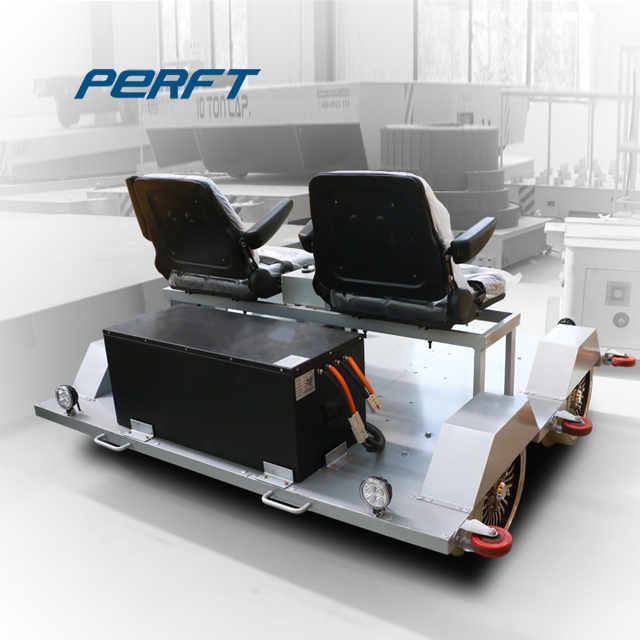

The most commonly used industrial rail system track inspection vehicle is to support daily track inspection and maintenance tasks. It provides stable and efficient assistance for operators to patrol railway lines, visually inspect track conditions, and carry basic tools, helping factories detect problems early and reduce unplanned downtime.
Deformation or uneven settlement of steel rails
Loose fasteners and worn rail joints
Metal shavings, dust, or slag blockage
Increased risk of derailment of transport vehicles
This rail track inspection vehicle is widely used in:
Steel mills and metallurgy plants
Foundries and casting workshops
Machinery manufacturing facilities
Heavy-duty industrial rail transport systems
Factory internal rail maintenance lines
| BXC-2T | BXC-20t | BXC-50t | BXC-100t | BXC-150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
Turntable Rail Transfer Cart is suitable for a variety of applications, such as round rails, vertical rails, cross rails, and more.
Turntable Rail Transfer Cart runs smoothly and has high rail connection accuracy, the PLC can be installed to meet fully automated electrical operation.
