Load Capacity: 1–100 tons (customizable up to 500 tons)
Speed: 0–20 m/min, adjustable (customizable)
Compliance: Can be customized to meet local safety and electrical standards
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Polyurethane Rubber Wheel
Movements: 360° rotation (Carousel) and crab movement (horizontal and diagonal movememnt )

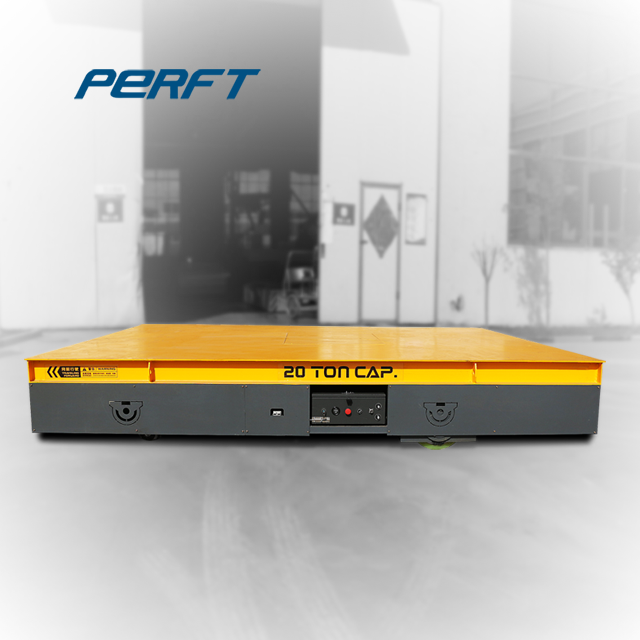

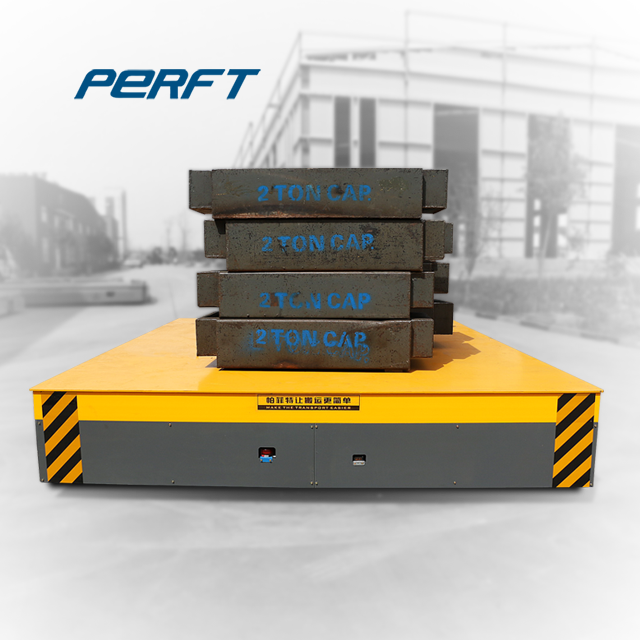

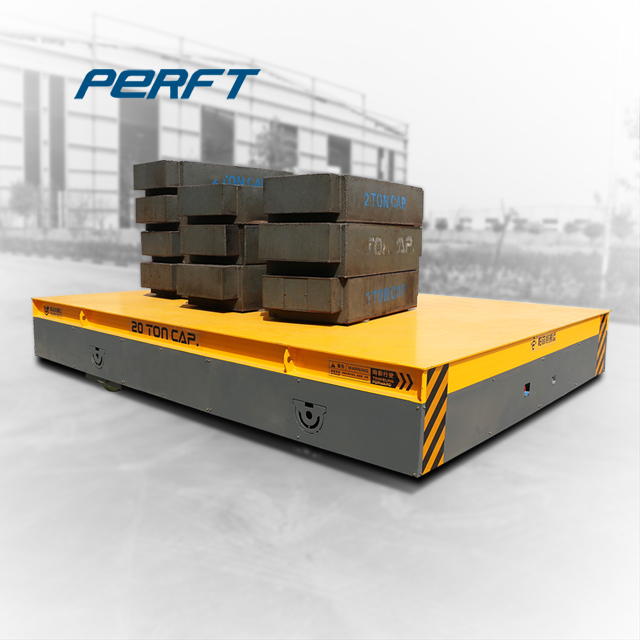

The battery powered trackless transfer vehicle with 360 ° steering is a type of transfer vehicle that can flexibly turn in the workshop. It is designed specifically for factories and workshops that cannot install tracks, and is also suitable for small spaces. The cart is powered by an onboard battery system and equipped with a 360 degree steering mechanism, allowing for smooth and precise movement in restricted or complex working environments.
Unlike traditional rail transport vehicles, this model can freely change routes, rotate in place, and align precisely with the production line, significantly improving transportation efficiency and layout flexibility.
Powered by batteries, running without tracks or cables
The cart operates with a high-capacity battery system, eliminating the need for towing cables and external power rails. This ensures safe operation, easy relocation, and uninterrupted material transportation between workshops and warehouses.
360 ° steering for maximum flexibility
Equipped with a 360 degree steering system, the cart can move forward, backward, and laterally, and rotate on site. This makes it an ideal choice for narrow aisles, multi-directional material flow, and complex factory layouts.
Trackless design, no installation required
No need for tracks, grooves, or civil construction. This cart can be immediately deployed on flat concrete floors, reducing installation costs and downtime, while allowing for easy layout changes in the future.
Strong flexibility
Lower installation cost
Easy to modify layout
Higher positioning accuracy
|
Model |
BWP-2T |
BWP-10T |
BWP-20T |
BWP-30T |
BWP-50T |
|
|
Rated load (T) |
2 |
10 |
20 |
30 |
50 |
|
|
Table size |
length(L) |
2000 |
3600 |
4000 |
4500 |
5500 |
|
Width(W) |
/ |
1500 |
2000 |
2200 |
2200 |
|
|
Height(H) |
/ |
450 |
500 |
550 |
600 |
|
|
Wheel Base (mm) |
1200 |
2600 |
2800 |
3200 |
4200 |
|
|
Wheel Diameter(mm) |
Φ270 |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
|
|
Ground Clearance (mm) |
50 |
50 |
50 |
50 |
50 |
|
|
Motor Power (Kw) |
1 |
1.6 |
2.2 |
3.5 |
5 |
|
|
Battery Capacity(Ah) |
180 |
160 |
180 |
250 |
330 |
|
|
Battery Voltage(V) |
24 |
48 |
48 |
48 |
48 |
|
|
Running Time When Full Load |
4.32 |
4.8 |
4 |
3.5 |
3.3 |
|
Customized:
The load capacity, table size, color of the Pallet transfer trailer all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
