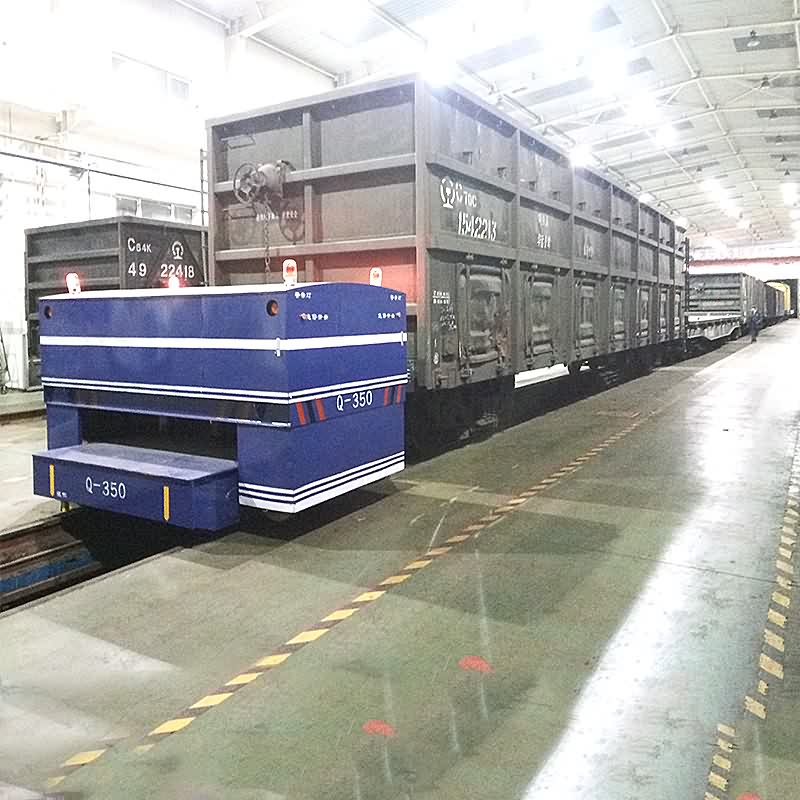

Trailing Cable Powered Transfer Cart

Load Capacity: 1-1500 tons

Speed: 20 m/min or ad your needs

Certificate: SGS, ISO9001, SASO

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Movements: 360° rotation (Carouse) and crab movement (horizontal and diagonal movememnt )

Description

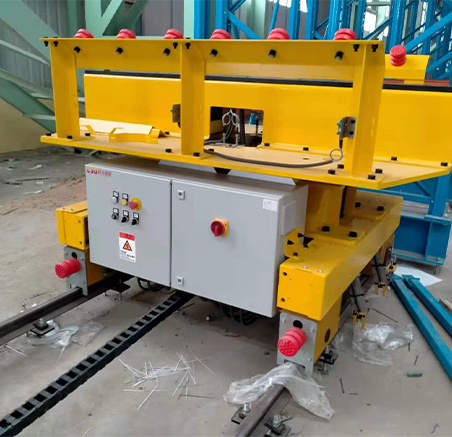

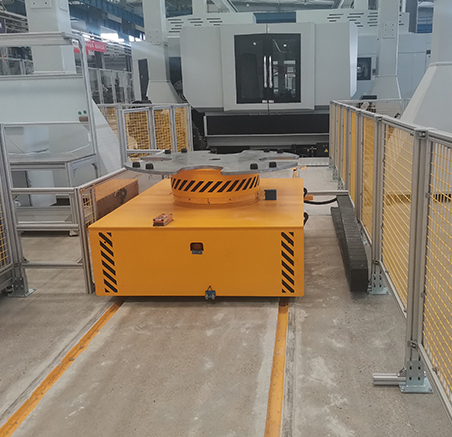

BTL Series transfer car is powered by dragging cable. The power source 380V-690V alternating-current is leaded into electrical control cabinet by cable,which controls the motor to make the car start, stop, move forward and move backward. The cable is laid between two rails and the operation voltage is 36V.Hydraulic lifting system can be mounted on the car to meet the demand for car lifting.PLC mounted on the car can realize full automation operation.The series transfer can be applied in the occasion such as high temperature, anti-explosive environment.Simple structure and low cost make it very popular for crossing bay transportation Compared with BXC Series car.there is no limitation of running time;compared with BDG Series car,there is no insulated requirement for the rail erection:compared with BJT Series car, the cost is lower. The series car is suitable for running distance less than 20m, high using frequency,low car-height demand.And the towline is alternative to prevent the cable from abrasion if necessary.

Our BTL Series of cars is powered by dragging cable. The 380V alternating current is leaded into electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable is laid between two rails and the operation voltage is 36V.PLC Could be mounted on the car thus to realize full automation operation.And the towline is alternative to prevent the cable from abrasion if necessary.It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.

Our rail carts, often called material transfer carts, rail push carts or rail material carts, are ideal for manufacturing facilities and railway networks. Designed for low speed applications not are intended for use in high speed applications. These rail transfer carts are used for moving large loads of equipment or specialized machinery on rails in a wide range of areas . Models are available for capacities up to 300 tons. All models are provided with a standards mechanical parking brake, sealed bearing, and heavy duty wheels and axles.



Parameters

Model BJT-2t BJT-20t BJT-50t BJT-100t BJT-150t Advantages of trailing cable powered transfer trailer
Low noise
It causes low noise level.
Maximum safety
We make sure a maximum safety for operators and the material handled. What we really care is the safety of everyone involved in the process of machine operation.
Easy for operation
These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation.
 Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its highest payloads is up to 300 ton.
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 500 600 700 1000 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed (m/min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance (m) 25 30 50 50 50
Recommended Rail Model P15 P24 P43 QU100 QU100

Process

  • Load up to 300t and high using frequency.

  • It is suitable for the running distance beyond 20m and less than 400m.

  • With simple structure and low cost make it popular for workshop transportation.

  • Without using time limitation and has no strict demand for rail erection.

  • This Electric Handling Cart can be applied in the environment such as severe environment, high temperature, anti-explosive etc.

Notes

  • 1 Load capacity ,table size and rail gauge can be customized
  • 2 Options : Remote radio control (imported or made in China )
  • 3 Automatic stop when detecting obstacle or person ,limit switches (to limit travel)
  • 4 Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )
  • 5 motor (DC motor with brush and DC motor brushless )
  • 6 Electrical parts (imported or made in china )

Application

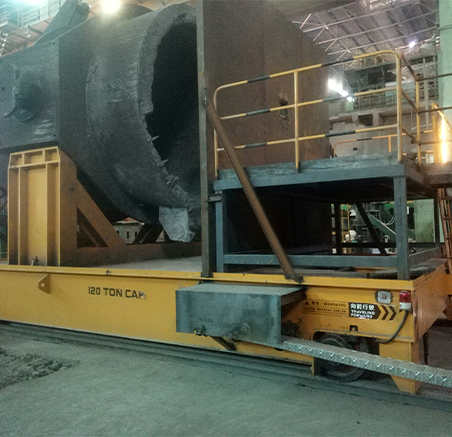

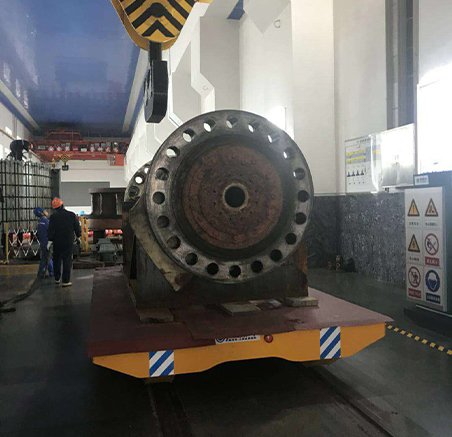

The Trailing Cable Powered Transfer Cart is mainly applied in assembly line (ring production line,  loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), work piece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
