Load Capacity: 1-500tons
Speed: 0-20 m/min or as your needs
power supply: Low-voltage rail, cable reel, battery
Operation Mode: Manual, Remote Control, PLC Automatic
Price：Depending on the tonnage and customization, please send to check the price
The most suitable material:Transfer pipes, steel billets, and coils

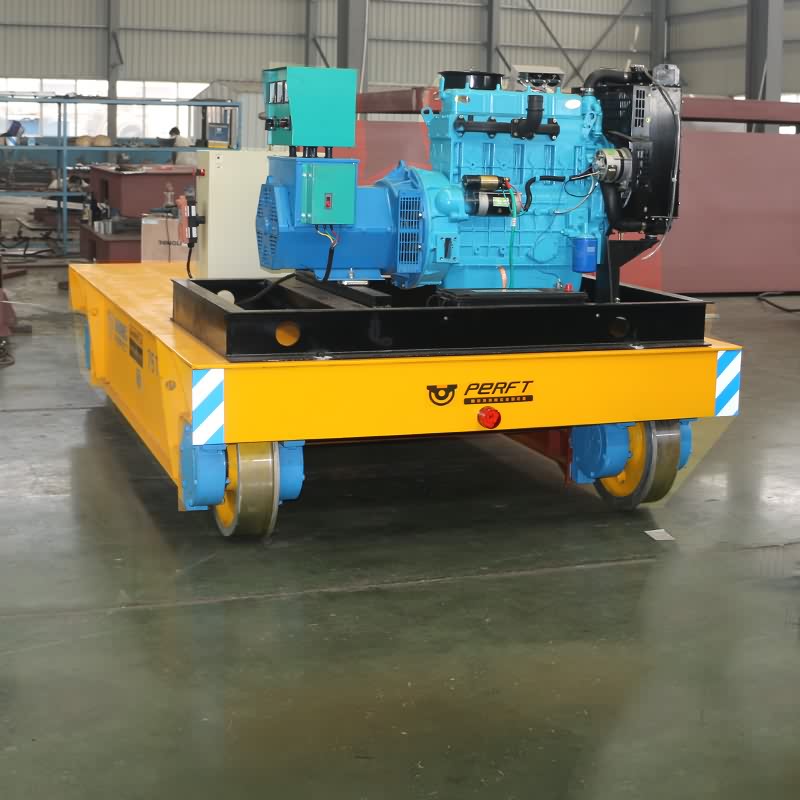

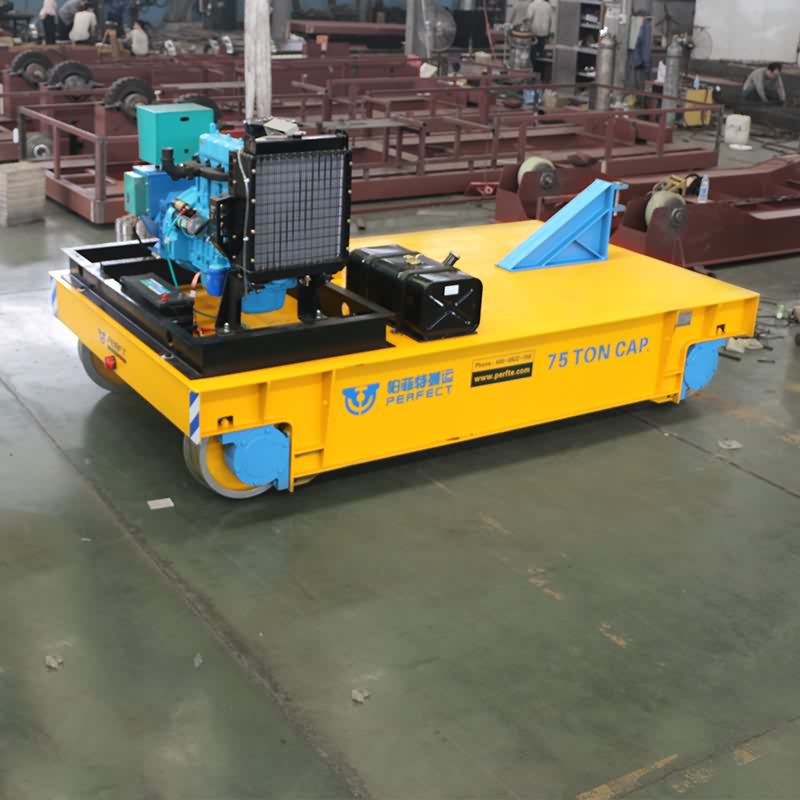

Diesel powered heavy-duty rail transport vehicles are designed to transport ultra heavy industrial equipment and materials along fixed tracks. The vehicle is equipped with a powerful diesel engine, making it an excellent choice for workshop factory logistics centers. Some places require long-distance railway transportation of materials, but electricity may not be available.
Diesel engine power generation
High performance diesel engines can ensure long-term operation, strong torque, and reliable power supply in remote or large-scale facilities.
Heavy load capacity
Designed to carry extremely heavy materials, suitable for molds, steel beams, machinery, and other industrial equipment.
Track guidance stability
Running on a fixed track, precise positioning and safe transportation can be achieved even under maximum load.
durable structure
Strengthening the chassis, high-strength steel frame, and industrial wheels ensures smooth operation and long service life.
Flexible customization
The platform size, load capacity, track compatibility, and control system can be customized to meet specific operational needs.
Transportation of heavy machinery in factories or workshops
Transportation of steel, molds, and equipment along railway lines
Ports, logistics sites, or areas without power supply
Large assembly lines that require precise material positioning
| Modle | KPX-10T | KPX-30T | KPX-50T | KPX-80T | KPX-100T |
| Table Size (m) | 3.6*2.0*0.5 | 4.5*2.2*0.6 | 5.5*2.5*0.65 | 6.0*2.6*0.8 | 6.5*2.8*0.9 |
| Rail inner Gauge | 1435mm | 1435mm | 1435mm | 1800mm | 2000mm |
| Wheel Dia. | 350mm | 400mm | 500mm | 600mm | 600mm |
| Running Speed | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min |
| Motor Power | 1.6kw | 3.5kw | 5kw | 8kw | 10kw |
| Capacity | 180Ah | 250Ah | 330Ah | 400Ah | 440Ah |
| Volatge | 48v | 48v | 48v | 72v | 72v |
| Max Wheel Load | 42.6Kn | 110.4Kn | 174Kn | 278.4Kn | 343.8Kn |
| Reference weight | 4.2t | 6.8t | 8t | 12.8t | 14.6t |
| Recommend Rail | P24 | P38 | P43 | P50 | P100 |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
Coil transfer carts are commonly used in manufacturing plants, warehouses, and shipping yards to transport heavy loads safely and efficiently. They are especially useful in the steel and metal industries, where large steel coils and rolls are frequently transported. Coil transfer carts can be used for a variety of applications, including loading and unloading trucks, transporting loads between facilities, and moving heavy loads around a manufacturing plant.
Coil transfer cart is a versatile piece of equipment that can make material handling easier, safer, and more efficient. When choosing a coil transfer cart, consider the type of load you need to transport, your specific application requirements, and the features and product options available. With the right coil transfer cart, you can improve your material handling operations and increase productivity in your facility.
