Load Capacity: 1–100 tons (customizable up to 500 tons)
Speed: 0–20 m/min, adjustable (customizable)
Compliance: Can be customized to meet local safety and electrical standards
Motors: PMAC / AC high efficiency motors
Safety Standards: Designed to comply with local electrical and safety regulations
ower / Control Options: Cable reel powered or battery powered; controlled via remote or pendant

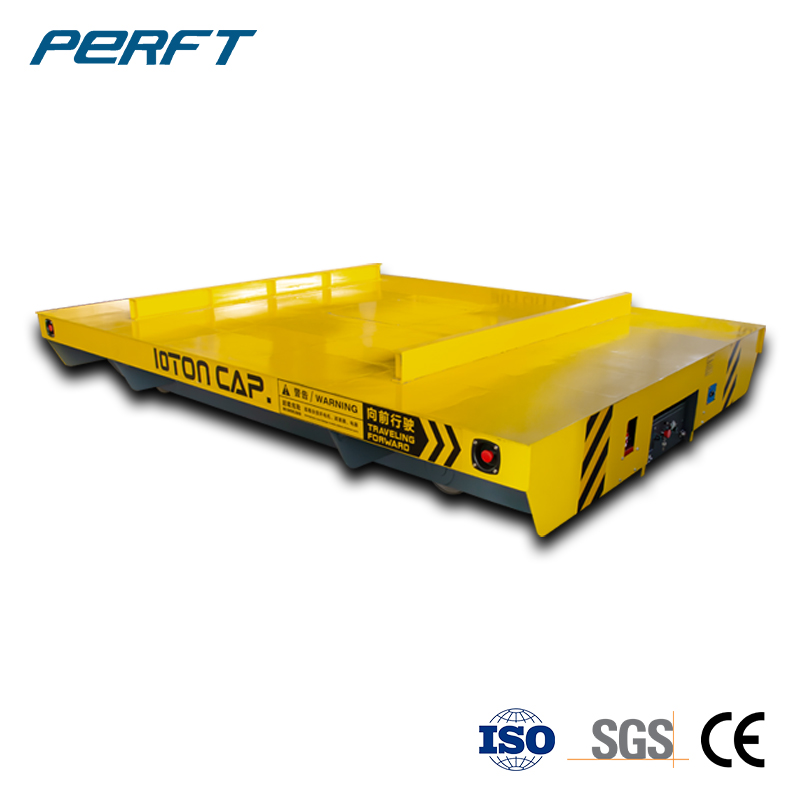

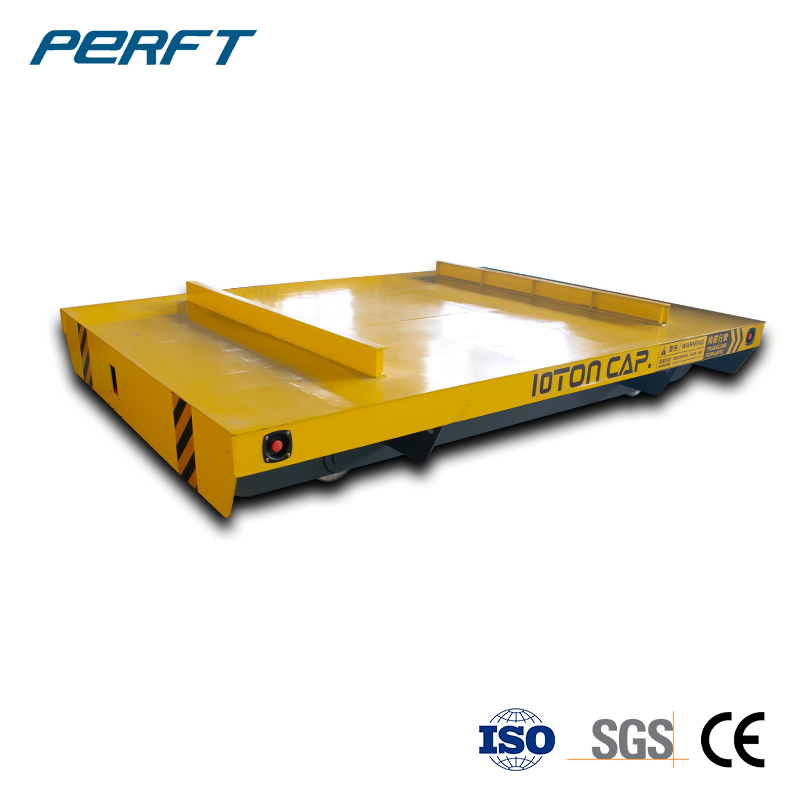

The design of a track type flatbed transport vehicle with load limiting poles is used to transport heavy materials more smoothly, safely, and efficiently along fixed railway lines.
The rated load capacity of this trolley is 10 tons, and it is equipped with a load limiting rod on the platform to help safely place materials during movement.
Load limiting rod:
Designing according to the shape of the material can effectively prevent it from sliding or moving
Maintain the loaded materials within the designated platform area during operation
Improve safety during startup and shutdown operations
Reduce the risk of material and equipment damage
Wide and stable load-bearing surface
Suitable for different material shapes, transportation of materials is more convenient
Easy to connect with existing production lines
|
Model |
BWP-2T |
BWP-10T |
BWP-20T |
BWP-30T |
BWP-50T |
|
|
Rated load (T) |
2 |
10 |
20 |
30 |
50 |
|
|
Table size |
length(L) |
2000 |
3600 |
4000 |
4500 |
5500 |
|
Width(W) |
/ |
1500 |
2000 |
2200 |
2200 |
|
|
Height(H) |
/ |
450 |
500 |
550 |
600 |
|
|
Wheel Base (mm) |
1200 |
2600 |
2800 |
3200 |
4200 |
|
|
Wheel Diameter(mm) |
Φ270 |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
|
|
Ground Clearance (mm) |
50 |
50 |
50 |
50 |
50 |
|
|
Motor Power (Kw) |
1 |
1.6 |
2.2 |
3.5 |
5 |
|
|
Battery Capacity(Ah) |
180 |
160 |
180 |
250 |
330 |
|
|
Battery Voltage(V) |
24 |
48 |
48 |
48 |
48 |
|
|
Running Time When Full Load |
4.32 |
4.8 |
4 |
3.5 |
3.3 |
|
Customized:
The load capacity, table size, color of the Pallet transfer trailer all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
