Load Capacity: 1–100 tons (customizable up to 500 tons)
Speed: 0–20 m/min, adjustable (customizable)
Compliance: Can be customized to meet local safety and electrical standards
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Polyurethane Rubber Wheel
Movements: 360° rotation (Carousel) and crab movement (horizontal and diagonal movememnt )

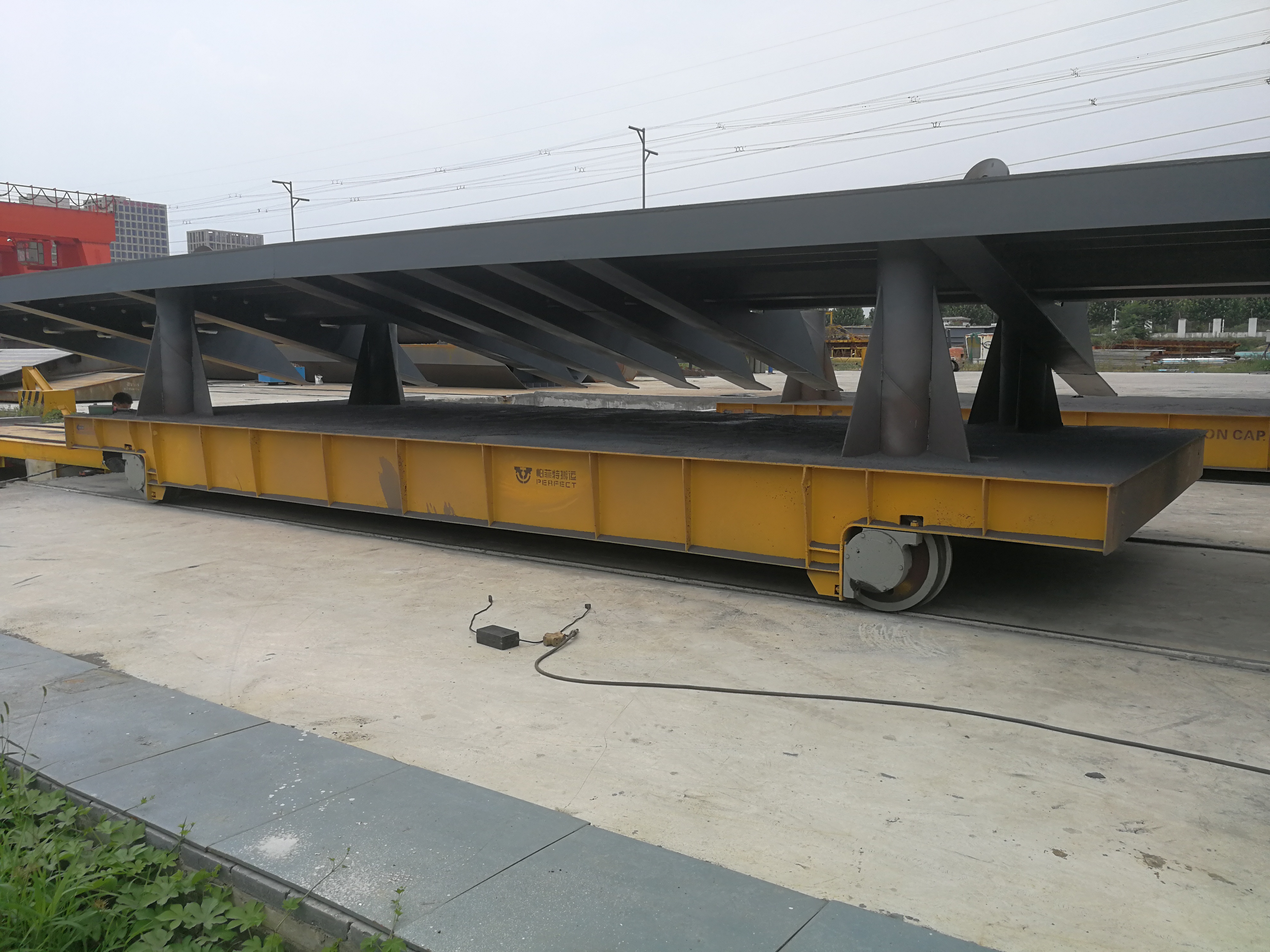

Customized long-distance transfer vehicles are designed specifically for material handling in large industrial facilities for long-distance transportation, where forklifts or standard transfer vehicles are inefficient, unsafe, or unable to meet continuous operation requirements.
This cart is designed to support stable, low maintenance, and energy-efficient transportation in workshops, warehouses, production lines, or outdoor areas.
All critical systems, including power supply, drive structure, control, and safety protection, are fully customized based on driving distance, load capacity, and operating environment
Material transfer between remote workshops or buildings
Long line transportation of steel plants and factories
Cross regional transfer of ports, shipyards, and logistics areas
Connection of production lines over hundreds of meters
Outdoor or semi outdoor material transportation
To ensure stable and continuous operation over long distances, this transfer cart is specially designed with optimized power, drive, and control systems.
Reliable Power Supply
Suitable for long-distance travel with rail-powered, busbar, or high-capacity battery systems, ensuring uninterrupted operation.
Stable Running Structure
Heavy-duty drive system and reinforced frame design reduce wear and deformation during long-distance transportation.
Smooth & Safe Control
Optimized speed control for long routes, with optional sectional control and automation support.
|
Model |
BWP-2T |
BWP-10T |
BWP-20T |
BWP-30T |
BWP-50T |
|
|
Rated load (T) |
2 |
10 |
20 |
30 |
50 |
|
|
Table size |
length(L) |
2000 |
3600 |
4000 |
4500 |
5500 |
|
Width(W) |
/ |
1500 |
2000 |
2200 |
2200 |
|
|
Height(H) |
/ |
450 |
500 |
550 |
600 |
|
|
Wheel Base (mm) |
1200 |
2600 |
2800 |
3200 |
4200 |
|
|
Wheel Diameter(mm) |
Φ270 |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
|
|
Ground Clearance (mm) |
50 |
50 |
50 |
50 |
50 |
|
|
Motor Power (Kw) |
1 |
1.6 |
2.2 |
3.5 |
5 |
|
|
Battery Capacity(Ah) |
180 |
160 |
180 |
250 |
330 |
|
|
Battery Voltage(V) |
24 |
48 |
48 |
48 |
48 |
|
|
Running Time When Full Load |
4.32 |
4.8 |
4 |
3.5 |
3.3 |
|
Customized:
The load capacity, table size, color of the Pallet transfer trailer all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.

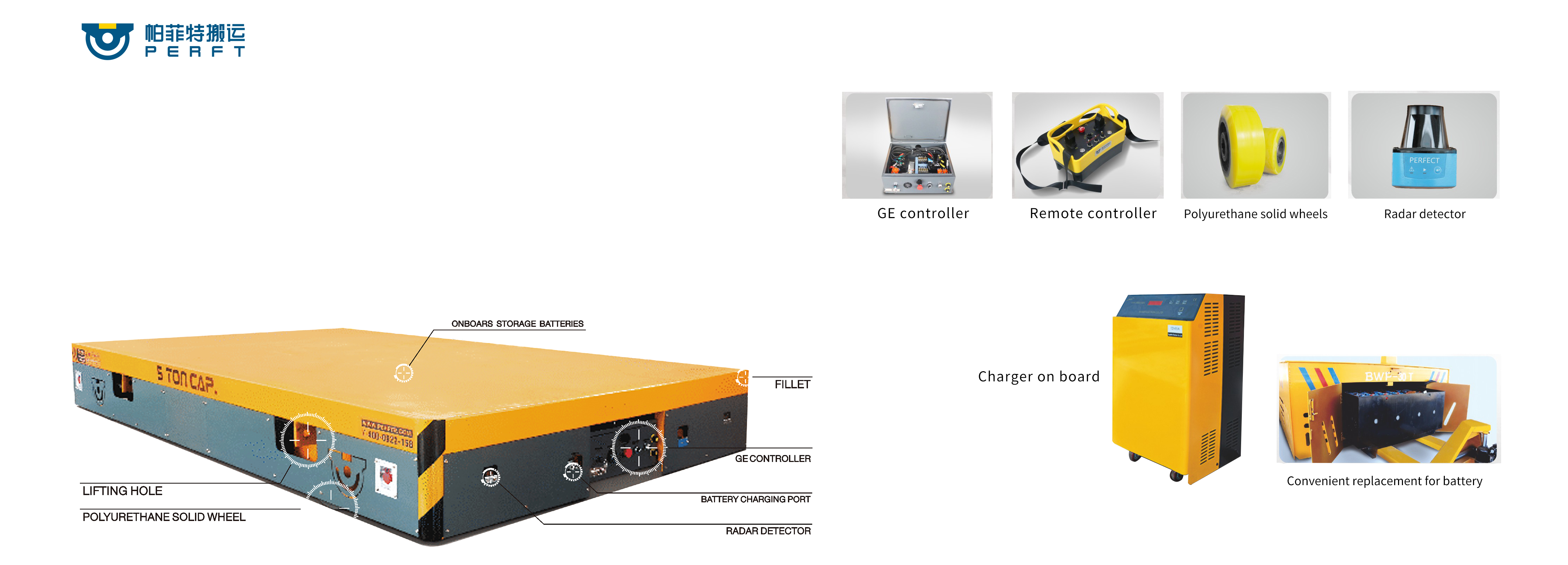

360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
