Carrying capacity: 1-300 tons
Drive mode: Low voltage DC motor drive, safe voltage power supply
Work route: Travel along a specific laid track, with no restrictions on the track route, which can be an L or S-shaped track
Control mode: wire control start stop, wireless remote control, automatic control linked with assembly rhythm
Safety devices: low voltage insulation protection, anti-static design, lightweight anti-collision strip, sound and light alarm

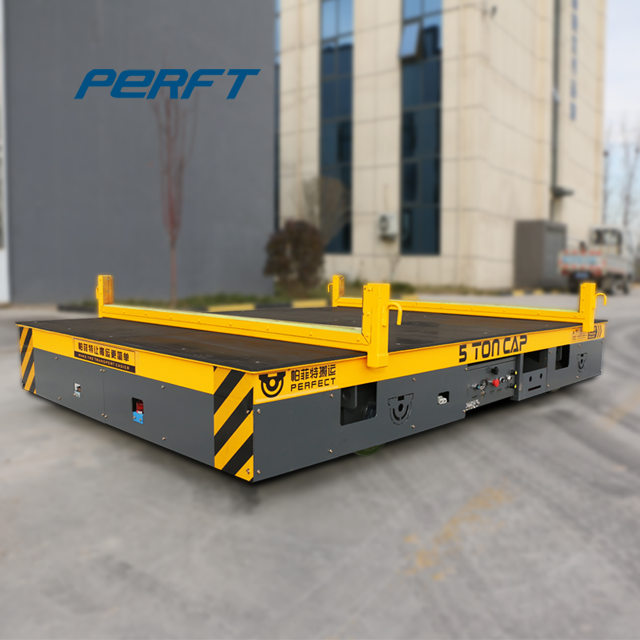

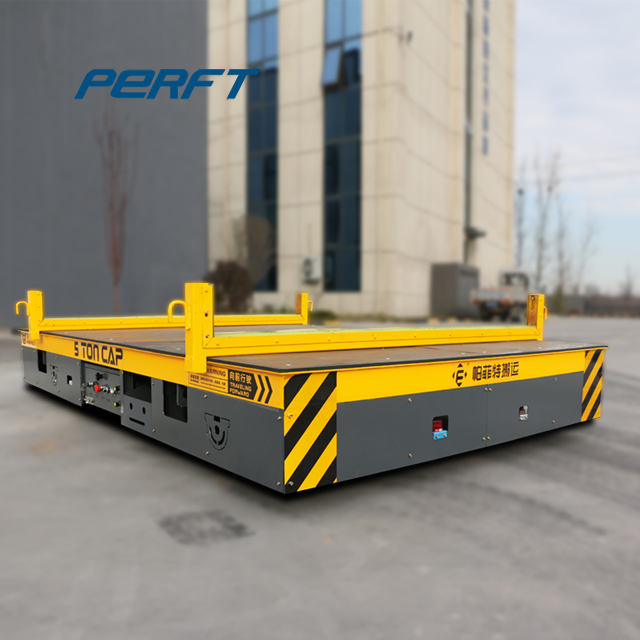

The battery railway cast steel wheel transfer cart is a heavy-duty track guided vehicle specifically designed for transporting materials. It is a transfer vehicle designed for long-term high load material handling. The special feature is the equipped cast steel wheels, which ensure stable operation on the track in harsh industrial environments.
Advantages of Cast Steel Wheels (Suitable for Rail Vehicles)
high load capacity
Cast steel wheels are designed specifically for railway transport vehicles, capable of withstanding high loads without deformation.
Excellent wear resistance
Suitable for long-term orbital operation, it can reduce wheel wear even under high-frequency use.
Long service life
Compared with ordinary wheels, cast steel wheels have higher durability and lower replacement frequency.
Stable orbit guidance
Ensure smooth and straight travel on the track to improve transportation stability and safety.
Very suitable for heavy-duty environments
Widely used in steel mills, foundries, and heavy-duty manufacturing workshops that require continuous operation.
Application
Typical Applications
1.Transportation of steel coils, billets, and heavy steel plates in steel plants
2.Transfer of castings and molds between foundry workshops
3.Movement of heavy machinery parts along fixed railway lines
4.Material transfer between production lines and assembly areas
5.Long-distance, straight-line transport in rail-guided industrial workshops
| Modle | KPX-10T | KPX-30T | KPX-50T | KPX-80T | KPX-100T |
| Table Size (m) | 3.6*2.0*0.5 | 4.5*2.2*0.6 | 5.5*2.5*0.65 | 6.0*2.6*0.8 | 6.5*2.8*0.9 |
| Rail inner Gauge | 1435mm | 1435mm | 1435mm | 1800mm | 2000mm |
| Wheel Dia. | 350mm | 400mm | 500mm | 600mm | 600mm |
| Running Speed | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min |
| Motor Power | 1.6kw | 3.5kw | 5kw | 8kw | 10kw |
| Capacity | 180Ah | 250Ah | 330Ah | 400Ah | 440Ah |
| Volatge | 48v | 48v | 48v | 72v | 72v |
| Max Wheel Load | 42.6Kn | 110.4Kn | 174Kn | 278.4Kn | 343.8Kn |
| Reference weight | 4.2t | 6.8t | 8t | 12.8t | 14.6t |
| Recommend Rail | P24 | P38 | P43 | P50 | P100 |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
