Load Capacity:20 tons customize( 1-300 tons）
Dimension:customized according to your requirements
Speed: 20 m/min or as your needs
Control mode: remote control/fully automated
Wheels: Cast Steel /Polyurethane Rubber Wheel
Power supply：Battery powered/cable reel powered/ low-voltage track powered
Price:based on different tonnage,send us the tonnage for inquiry

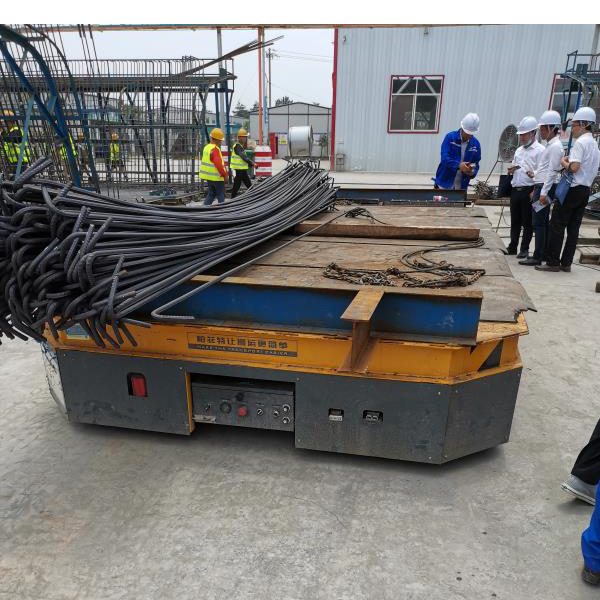

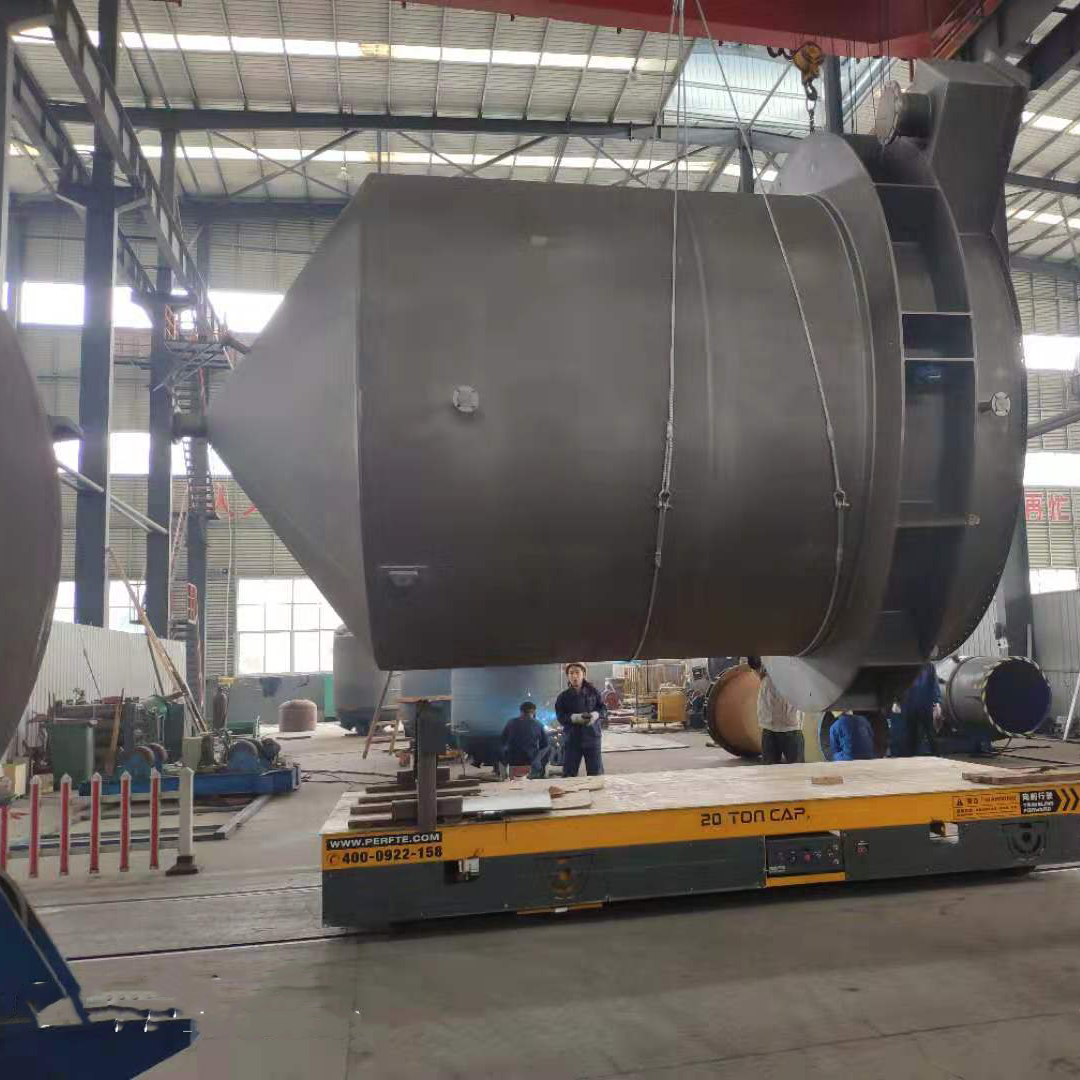

A heavy-duty mold transfer vehicle is an industrial vehicle designed to move large and heavy molds within workshops, production lines, and storage areas. It integrates a sturdy loading platform with precise drive and control systems, enabling the mold to be safely and reliably transported under high load conditions.
This cart is designed specifically for workshop floors and does not require permanent tracks. It maintains stability during movement while allowing for flexible routes.
Injection and compression mold transfer
Stamping mold handling in automotive workshops
Heavy mold storage and warehouse operations
Industrial production lines requiring high-load mold movement
Flat and sturdy workshop flooring, such as concrete or steel plates
Indoor industrial environment
Specially designed for high load mold processing operations
| Model | 2T | 20T | 50T | 100T | 150T |  |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quality | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for one Charge (Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P24 | P43 | QU100 | QU100 |
The carrying capacity can reach 300 tons
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
Heavy duty freight rail cars have a long running time
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
The Transfer trolley manufacturer transfer trolley is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pieces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The heavy load electric battery transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
