Load Capacity: 1.5T（1-300tons ）
Speed: 20 m/min or as your needs
OEM&ODM: Support
power supply：battery power supply, supporting stable and long-distance transport
Wheels: Cast Steel Polyurethane Rubber Wheel
Advantage: peculiar set-up makes the transfer cart save cost and operate more

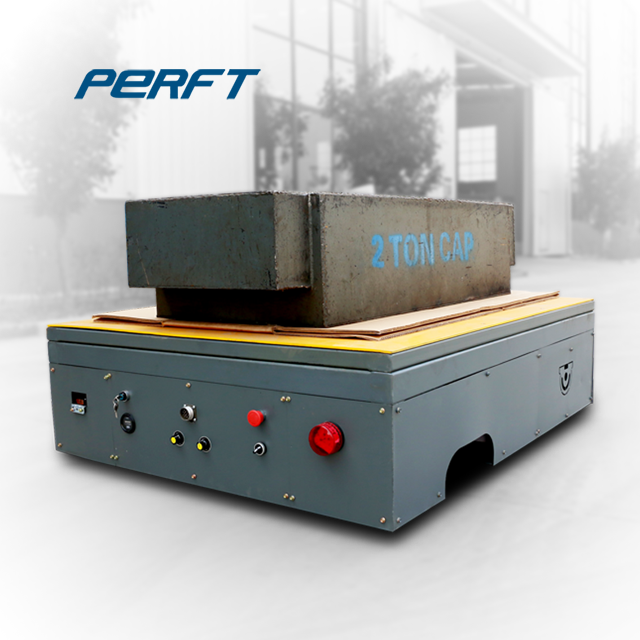

The customized 1.5-ton lifting and transportation vehicle is a customized one that can be raised to catch goods and solve logistics transportation problems at high positions. It is mainly suitable for production areas with uneven working heights, low manual handling efficiency, and limited forklift access in the workshop.

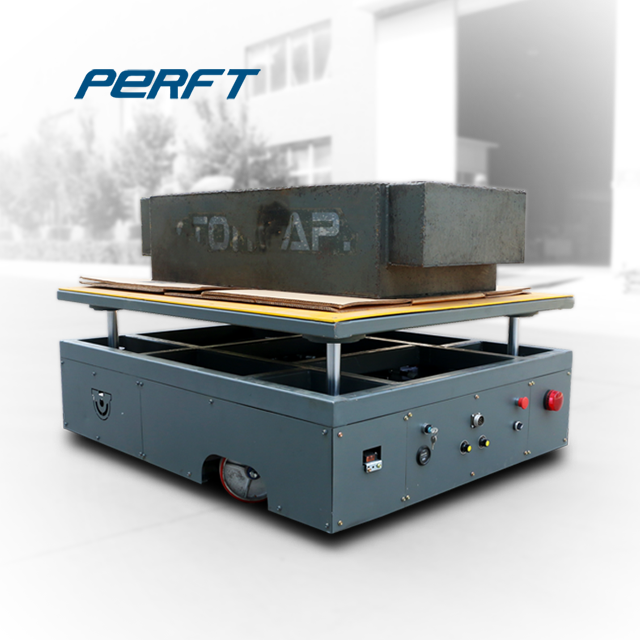

This hydraulic lift transfer vehicle allows materials to be smoothly lifted and lowered to match different workstations, production lines, or pallets, improving positioning accuracy and handling safety. The trolley is driven by an electric drive system, capable of transporting up to 1.5 tons of goods, with stable movement and controllable lifting.
1.Customize lifting height based on on-site equipment
Each stage of the lift transfer vehicle design has independent design, and customized lifting ranges can be designed to match specific workstations, production lines, or pallet heights, enabling precise docking of goods.
2.The platform design has been optimized for a workload of 1.5 tons
The trolley structure is designed specifically for a load of 1.5 tons, providing stable lifting performance for pallets, molds, and industrial components without excessive design or unnecessary volume.
3.Compact structure, suitable for enclosed workshop spaces
Unlike high-capacity cranes, this 1.5-ton crane transfer vehicle has a compact lifting mechanism, suitable for narrow aisles and limited space production environments.
4.Integrating lifting and transportation into a customized solution
The combination of electric travel and hydraulic lifting allows materials to be lifted and transported by a single unit, thereby reducing the need for additional handling equipment in industrial material flows.
5.Customize platform dimensions for specific materials and trays
The lifting platform can be customized according to the size of the materials being transported, improving load stability and handling efficiency during industrial transportation operations.
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
The battery powered transfer car is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
