Load Capacity: 30T（1-300tons ）
Speed: 20 m/min or as your needs
OEM&ODM: Support
power supply：battery power supply
Wheels: Cast Steel Polyurethane Rubber Wheel
Advantage: peculiar set-up makes the transfer cart save cost and operate more

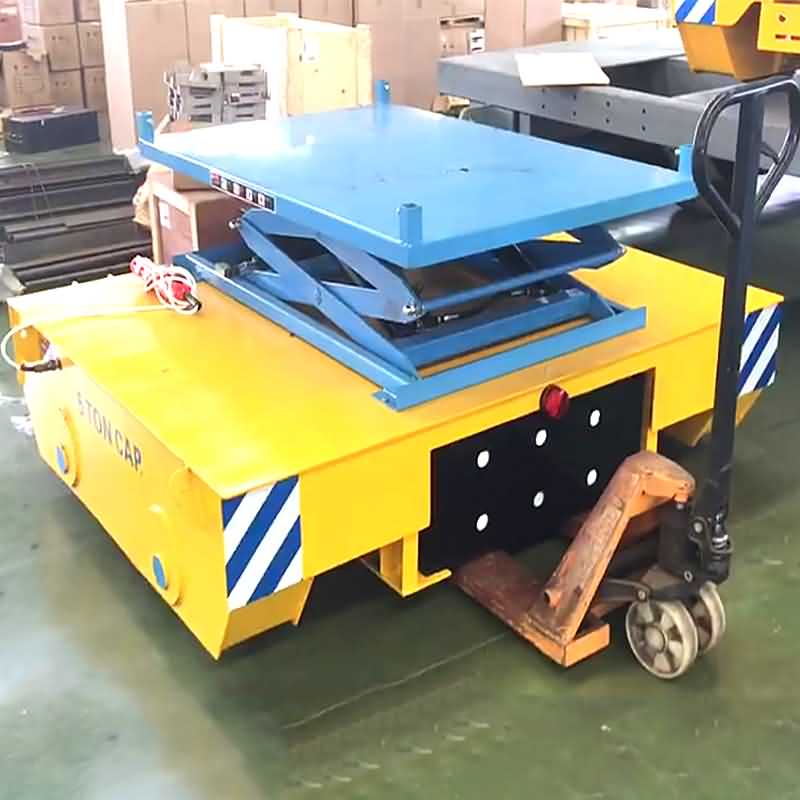

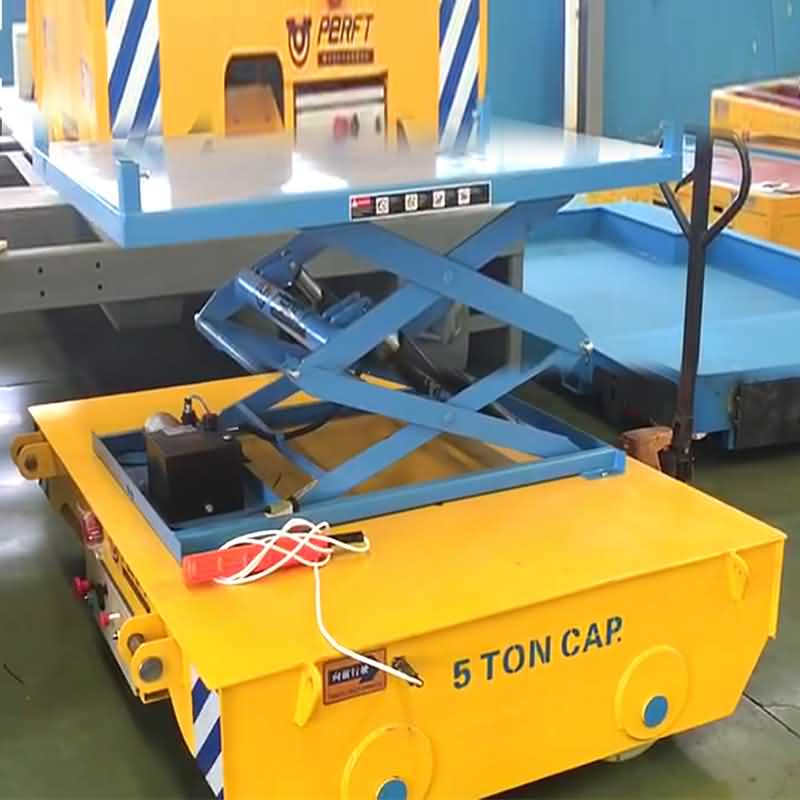

The 5-ton hydraulic scissor lift conveyor industrial transfer vehicle is designed specifically for heavy material handling in workshops, factories, and warehouses. Its hydraulic scissor lift platform can accurately lift up to 5-ton loads of goods, and its trackless design allows for flexible and efficient transportation of goods anywhere on a flat surface. This transport vehicle combines safety, durability, and maneuverability to make heavy material handling easy.
The hydraulic scissor lift can easily lift and dock heavy objects, supporting up to 5 tons of weight and reducing manual labor.
1.Flexible trackless design - able to move freely within the narrow space of the workshop without being affected.
2.Stable and durable - heavy-duty steel structure ensures long-term use and safety, precise height adjustment - adjustable lifting height allows for safe positioning of different items.
3.Improve workflow efficiency - very suitable for factories, warehouses, and production lines, saving time and labor.
Workshop & Factory Floors: Transport heavy equipment, molds, or raw materials efficiently.
Assembly Lines: Lift and transfer parts safely between stations.
Warehouse Operations: Move pallets and equipment freely across flat surfaces.
Flexible Industrial Handling: Ideal for operations that require frequent repositioning of heavy loads.
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
The battery powered transfer car is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
