Load Capacity:20 tons customize( 1-300 tons）
Dimension:customized according to your requirements
Speed: 20 m/min or as your needs
Control mode: remote control/fully automated
Wheels: Cast Steel /Polyurethane Rubber Wheel
Power supply：Battery powered/cable reel powered/ low-voltage track powered
Price:based on different tonnage,send us the tonnage for inquiry

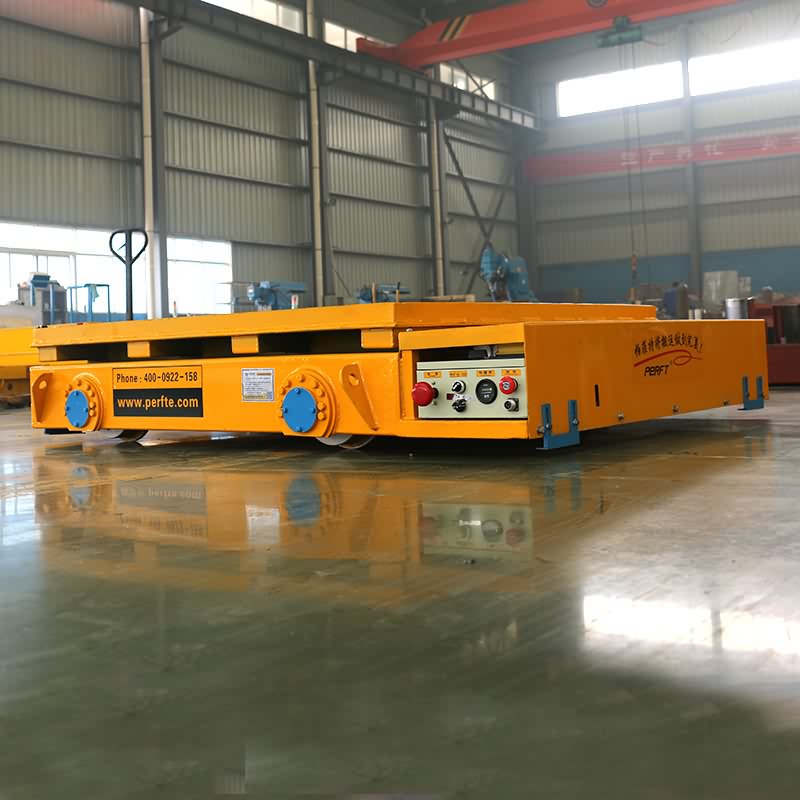

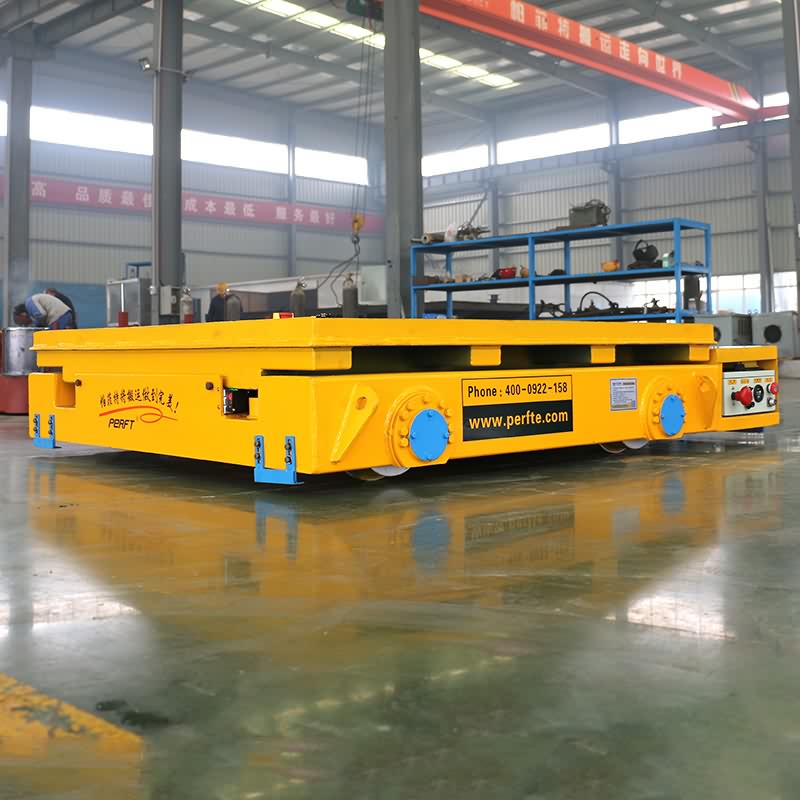

The trackless transfer cart with a weighing system is designed specifically for flexible material transportation and real-time weight measurement, without the need for tracks. The transfer cart weighing system is directly integrated into the structure of the electric transfer cart, allowing for precise load monitoring during transportation or at fixed points, helping users improve material management efficiency and prevent overloading.
The weighing system is installed below the load platform and connected to high-precision load sensors.When the transfer cart material is placed on the cart, the sensing system collects weight data and transmits it to the control system. The transfer trolley can be weighed during loading, transportation, or parking without interrupting normal handling operations.
Integrated weighing sensor for real-time weighing
Trackless transportation, very flexible steering, and free route planning
A relatively stable load platform to ensure weighing accuracy
Digital display or data output can be used for weight monitoring
Suitable for frequent transportation and weight control tasks
1: Can the cart weigh materials while moving?
A: Yes, the integrated weighing system works during transport or at fixed positions.
2: Is a rail required for operation?
A: No, this is a trackless transfer cart, so no rails are needed.
3: How accurate is the weighing system?
A: The cart uses high-precision load sensors to ensure reliable measurement.
4: Can weighing data be exported?
A: Yes, data output or system integration can be customized.
5: What is the maximum load capacity?
A: Capacity can be customized based on customer requirements
| Model | 2T | 20T | 50T | 100T | 150T |  |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quality | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for one Charge (Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P24 | P43 | QU100 | QU100 |
The carrying capacity can reach 300 tons
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
Heavy duty freight rail cars have a long running time
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
The Transfer trolley manufacturer transfer trolley is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pieces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The heavy load electric battery transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
