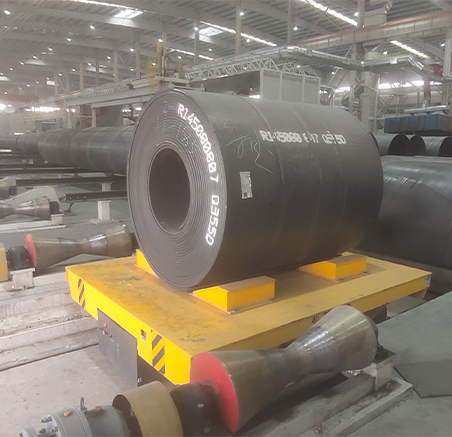

Custom Industrial Steel Structure Cable Drum Powered Transfer Cart

The cable drum powered transfer car consists of cable drum, transmission system, steel structure main frame, steering system, traveling mechanism, control system and fault diagnosis system.

Load Capacity: 1-1500 tons

Speed: 20 m/min or ad your needs

Certificate: SGS, ISO9001, SASO

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Movements: 360° rotation (Carouse) and crab movement (horizontal and diagonal movememnt )

Description

Description:

Custom Industrial Steel Structure Cable Drum Powered Transfer Car is also called transfer car, which is a kind of electric material handling equipment. This kind of electric transfer car on the track is driven by a cable reel (also called a cable reel) to drive the wheels, so that the car starts, stops, forwards and reverses, accelerates and decelerates, etc. The electric transfer car can be used for “s” and curved railways.

The Custom Industrial Steel Structure Cable Drum Powered Transfer Car is made of high-quality steel. Most importantly, the frame design of our transfer vehicle is designed to increase box beams, thereby making the vehicle load less and less. Compared with other series of carts, the use time is unlimited; it does not have strict requirements for railway construction. The load capacity is not limited and can be used frequently. If the wiring distance exceeds 50 meters, you need to install a router to assist the cable.

Advantages:
1. The series car has safety and mobility
2. Low noise.
3. Economize labor force, economize cost.
4. Simple structure.
5. Suitable for occasions where high using frequency.
6. Environment-friendly.
7. Convenient operation.
8. Easy maintenance.
9. The low requirement to the track.

10.Any dead weight.

Application

Cable drum powered transfer cart mainly use in heavy industry, light industry, machinery, petroleum, metallurgy, mining, chemical, ship, etc. It is used to handling steel coil, aluminum coil, galvanized coil, transformer, cable reel, casting, motor, container, compartment, container, pressure vessel, etc.

Application Of Cable Drum Transfer Trolley On Rail

Cable drum rail transfer trolleys have several uses and are practical in a range of situations and industries. These transfer trolleys are made primarily to move huge items quickly and securely. The following are some typical uses for cable drum transfer trolleys on rail:

  • Manufacturing: In manufacturing facilities, raw materials, finished goods, and materials for work-in-progress are moved between various production stations using cable drum transfer trolleys.
  • Warehouse: Cable drum transfer trolleys are frequently used in warehouses to move cargo pallets.
  • Construction sites: These transfer trolleys are used in construction to transport supplies, machinery, and tools throughout sizable job sites. Their sturdy build can withstand the rough terrain that is frequently encountered in construction operations.
  • Shipbuilding and repair: Cable drum transfer trolleys are used in shipyards to move heavy products and components across the facility. They are necessary for the building and upkeep of vessels.
  • Mining: These industrial transfer trolleys are used in mining operations to move big amounts of ore, minerals, and machinery underground and between different mining levels.
  • Aerospace: To carry aircraft parts, engines, and assemblies through various production steps, aircraft manufacturing facilities use cable drum transfer trolleys.
  • Automotive: These industrial transfer trolleys are used by automakers to move big parts including automobile bodies, chassis, and other heavy components along assembly lines.
  • Power plants: In power plants, heavy machinery, transformers, and other equipment are moved for repair or installation using cable drum transfer trolleys.
  • Steel mills: To handle and transport large steel coils, ingots, and other completed steel products, steel mills employ these industrial transfer trolleys.
  • Paper mills: Cable drum rail transfer trolleys are used in the paper industry to transport big rolls of paper between storage spaces and processing equipment.
  • Chemical and petrochemical plants: Within industrial facilities, they are used to transfer containers, equipment, and chemicals safely.

Parameters

Model

BJT-2T

BJT-5T

BJT-10T

BJT-16T

BJT-20T

BJT-25

BJT-30T

BJT-40T

BJT-50T

BJT-63T

 BJT-80T

BJT-100T

BJT-150T

















Rated Load

2

5

10

16

20

25

30

40

50

63

80

100

150

Length

2000

3500

3600

4000

4000

4500

4500

5000

5500

5600

  6000

6500

10000

Width

1500

2000

2000

2000

2200

2200

2200

2500

2500

2500

2600

2800

2800

Height

500

550

550

600

600

650

650

700

700

800

900

1000

1200

Wheel Base(mm)

1200

2500

2600

2800

2800

3200

3200

3800

4200

4300

4700

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

1435

1435

1435

1435

1435

1435

1435

1435

1435

1435

WheelDiameter(mm)

Θ270

Θ300

Θ300

Θ350

Θ50

Θ400

Θ400

Θ500

Θ500

Θ600

1435

Θ600

Θ600

Wheel Quality

4

4

4

4

4

4

4

4

4

4

4

4

4

Ground Clearance(mm)

50

50

50

50

50

50

50

50

50

50

75

75

75

RunningSpeed (m/min)

0-25

0-25

0-25

0-20

0-20

0-20

0-20

0-20

0-20

20

20

20

18

MotorPower(kw)

0.8

1.5

1.5

2.2

2.5

3

4

5.5

5.5

7.5

7.5

11

15

Running Distance(m)

25

25

25

25

30

30

50

50

50

50

50

50

50

Max Wheel Load (KN)

14.4

25.8

42.6

64.5

77.7

94.5

110.4

142.8

174

221.4

278.4

343.8

265.2

Reference Weight (t)

2.5

3.5

42.6

64.5

77.7

94.5

110.4

142.8

174

221.4

278.4

343.8

265.2

Recommended Rail Model

P15

P18

P18

P24

P24

P38

P38

P43

P43

P50

P50

P50

P50

Process

  • The series car has safety and mobility

  • Low noise.

  • Economize labor force, economize cost.

  • Simple structure, Environment-friendly.

  • Suitable for occasions where high using frequency.

  • Convenient operation, Easy maintenance.

  • The low requirement to the track, Any dead weight.

Notes

  • 1 High frequency of use, unlimited running time.
  • 2 Easy operation and low cost.
  • 3 The operating distance is less than 200 meters.
  • 4 Suitable for all kinds of environments.It can be used indoors or outdoors in high temperature explosion-proof and other environments.
  • 5 Customized for you.Custom table size, operating speed,load,etc.Meet your requirements.
    Key attributes Customization Rating &Reviews Know your supplier Product description from supplier

Application

Cable drum powered transfer cart mainly use in heavy industry, light industry, machinery, petroleum, metallurgy, mining, chemical, ship, etc. It is used to handling steel coil, aluminum coil, galvanized coil, transformer, cable reel, casting, motor, container, compartment, container, pressure vessel, etc.

For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application
