Load Capacity: 1-500 tons
Speed: 20 m/min or as your needs
Price： US $ 4000 - 4500
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Polyurethane Rubber Wheel
Advantage: peculiar set-up makes the transfer cart save cost and operate more
Customer A: "On our construction site, this electric transfer vehicle greatly improves construction efficiency, especially in small spaces where its performance is impressive. ”
Customer B: "As a heavy machinery repair shop, this equipment has helped us save a lot of labor costs while improving handling efficiency
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |  |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quality | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for one Charge (Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P24 | P43 | QU100 | QU100 |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .

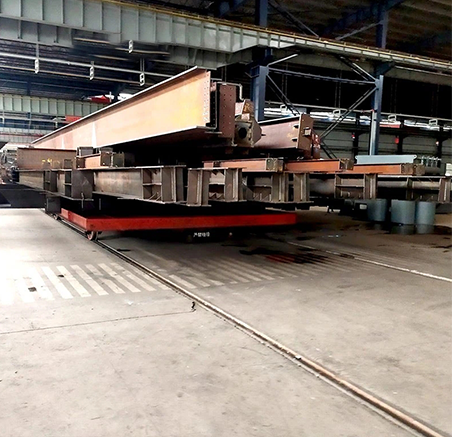

The battery operated transfer trolley is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The battery operated transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
