Electric Transfer Cart

Load Capacity: 1-1500 tons

Speed: 20 m/min or ad your needs

OEM&ODM: Support

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Advantage: peculiar set-up makes the transfer cart save cost and operate more

Description

PRODUCT DESCRIPTION
The electric transfer cart is powered by the low voltage rails, which have been insulated, the ground control box input the electricity and guide it to the two/three insulated rails, then the insulated wheels conduct the electricity from the rails into the electrical appliance box installed on the bottom of the carts so that control the transfer cart to start, stop, go forward and backward and adjust the speed etc. by operating the hand pendant / remote control

MAIN FEATURE :
1.The rail and wheel are insulated so that the safety can be guaranteed;
2.Low voltage rails guided(selectable power source )
3.Customized capacity 1-1,000 tons
4.Installed conductive column to promote conductivity
5.Speed Adjustable
6.DC/AC Motor
7.Turning can be realized(C rails, arc-shaped rails, S rails, etc.)
8.All kinds of environment(high temperature, dust,etc. )
9.Safe device(E-stop, dead man stop, buffer, Sound&light alarm, lamp, etc.)
10.Easy operation and maintenance
11. Low noise and Environmental
12.Optional wireless remote control operation
13.All solution can be provided as per the customers' working site.

APPLICATIONS OF ELECTRIC TRANSFER CART:
The electric transfer cart can be mainly applied in production line(ring production line, loop production line),foundry industry(mold),warehouse transport, ship industry(maintenance, assembly, container transport),work piece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel structure, steel ladle, steel scrap),construction(bridge, simple building,concrete column, )petroleum industry(oil pump, sucker rod and parts),energy(polycrystalline silicon, generator, windmill),chemical industry(electrolytic cell,retort etc.), military industry(Military equipment),railway(rail maintenance,rail welding, train tractor), etc.

应用

零部件

Remark:PERFECT can customize all kinds of material handling equipment such as rail transfer cart, trackless transfer cart,AGV,trailer, etc. You can click on the PRODUCT PAGE to view. Or CONTACT US!

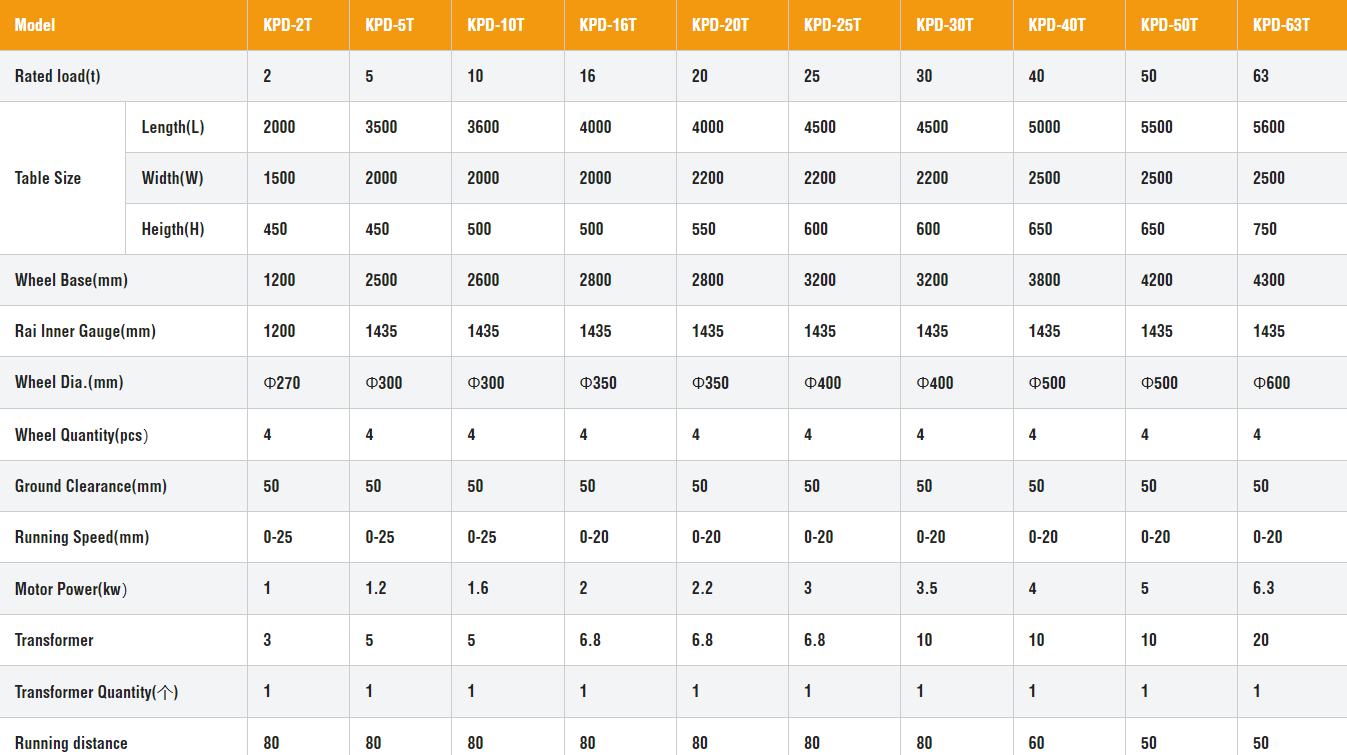

Parameters

参数

Process

  • 360 degree motorized rotation without causing any damage to the floor.

  • Powered by storage battery, turning freely without any cable strings.

  • Controlled easily by pressing the buttons and speed controller.

  • High level automation(self propelled/steerable)

  • The largest capacity can reach to 100t

  • Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)

  • Robust sturdy car frame

Notes

  • 1 Load capacity ,table size and rail gauge can be customized
  • 2 Options : Remote radio control (imported or made in China )
  • 3 Automatic stop when detecting obstacle or person ,limit switches (to limit travel)
  • 4 Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )
  • 5 motor (DC motor with brush and DC motor brushless )
  • 6 Electrical parts (imported or made in china )

Application

The battery powered transfer car is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.

The transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
