The customer is a Xi’an-based R&D and manufacturing company producing distribution switchgear, instruments, electrical equipment and intelligent power transmission & control gear. Most of their products are large steel enclosures and structural weldments, and surface coating is a critical final process — which means heavy, long workpieces have to be moved repeatedly inside the coating plant.
To improve material handling efficiency and protect freshly painted surfaces, the customer needed a cleaner and more reliable transportation solution. A battery-powered rail transfer cart offered a practical option for moving heavy workpieces along fixed routes without combustion exhaust or trailing power cables.
At the technical exchange meeting, the customer clearly listed the requirements:
– Rated load: 5t;
– Dimensions: Length 4200mm × Width 1500mm × Height 750mm
– Battery power supply: No sliding contact lines or cable reels are accepted;
– Wireless remote control operation: Workers can control from a safe position without having to walk along the vehicle;
– Travel along the fixed track according to the preset path, with high positioning accuracy: The workpiece can be successfully aligned once when entering or exiting the spraying room and drying kiln;
– Fully electric drive, without exhaust gas or open flames.
Based on these requirements, a battery-powered rail transfer cart was selected to support the customer’s fixed-route material handling operations.
We provided a customized BXC battery-powered rail transfer cart designed for the customer’s 5-ton load capacity and workshop layout.
For this typical working condition in the painting workshop, we have selected the BXC type battery-powered track flatcar, and the main configuration is as follows:
|
project |
configuration instruction
|
|
driving system |
The battery drives the cycloidal pinwheel reducer through the control cabinet, which in turn drives the cast steel wheels, ensuring smooth operation and low noise
|
|
Power supply |
Large-capacity industrial battery packs + intelligent chargers |
|
control |
Industrial-grade wireless remote control |
|
Safety |
Front and rear sound and light alarms, end face buffer anti-collision blocks, and emergency stop ropes for the vehicle body |

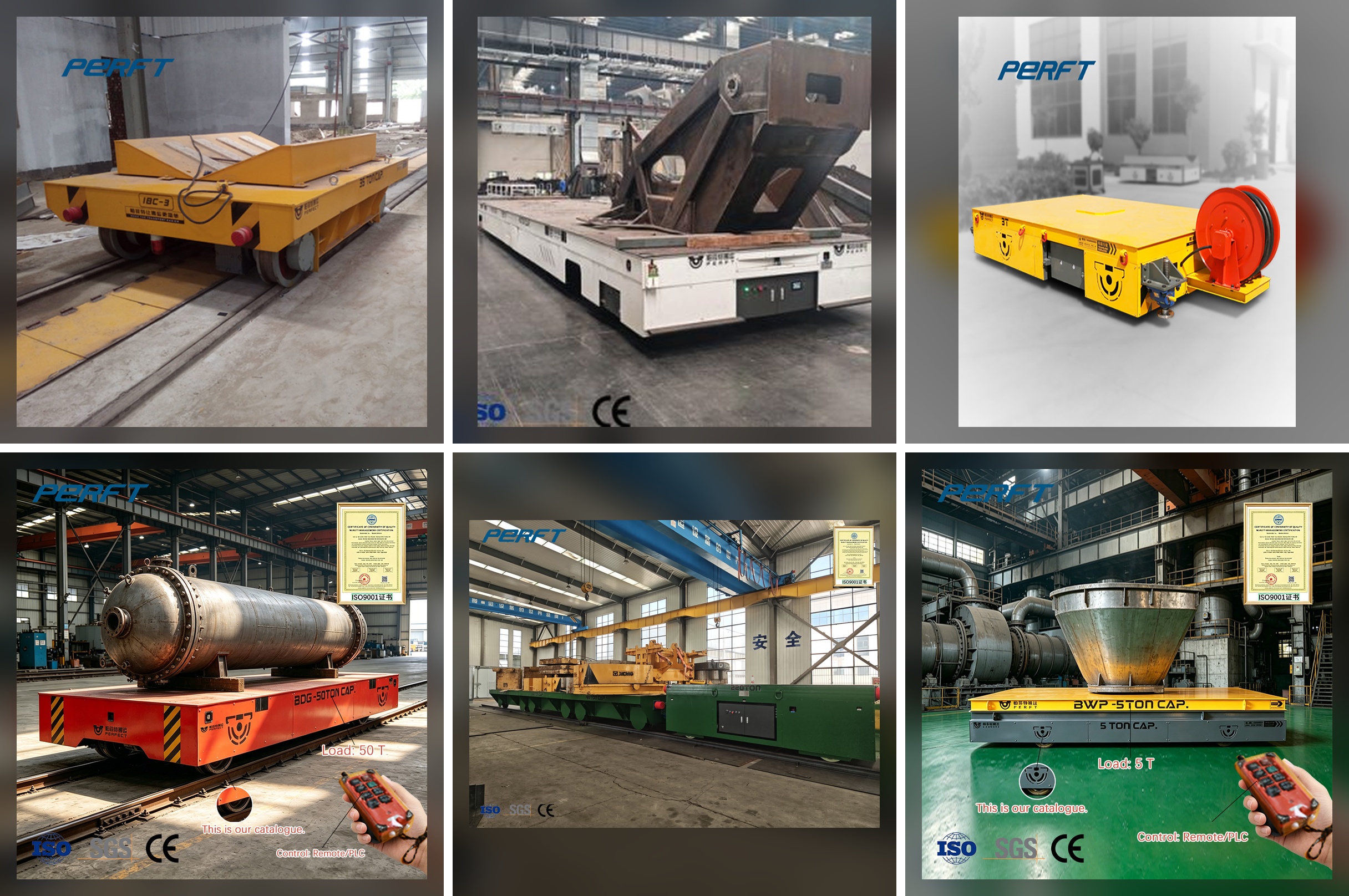

We are a professional manufacturer of electric flatbed transfer vehicles, with products covering:
BDG low voltage track flat wagon
BHX sliding contact line power supply flat wagon
BJT cable drum power supply flat wagon
BZH omnidirectional aluminum ladle car
Such as special models are widely used in machinery, metallurgy, shipbuilding, automobile, new energy, chemical industry, coating, warehousing and so on need to reload plane transport situation. The load capacity, tabletop size, power supply mode and control mode can all be customized according to the on-site working conditions. If you also have internal coating workshop, assembling workshop or warehouse overloaded transport demand, welcome to inform load, the size of the workpiece, running route and field power supply condition, we can provide selection Suggestions
