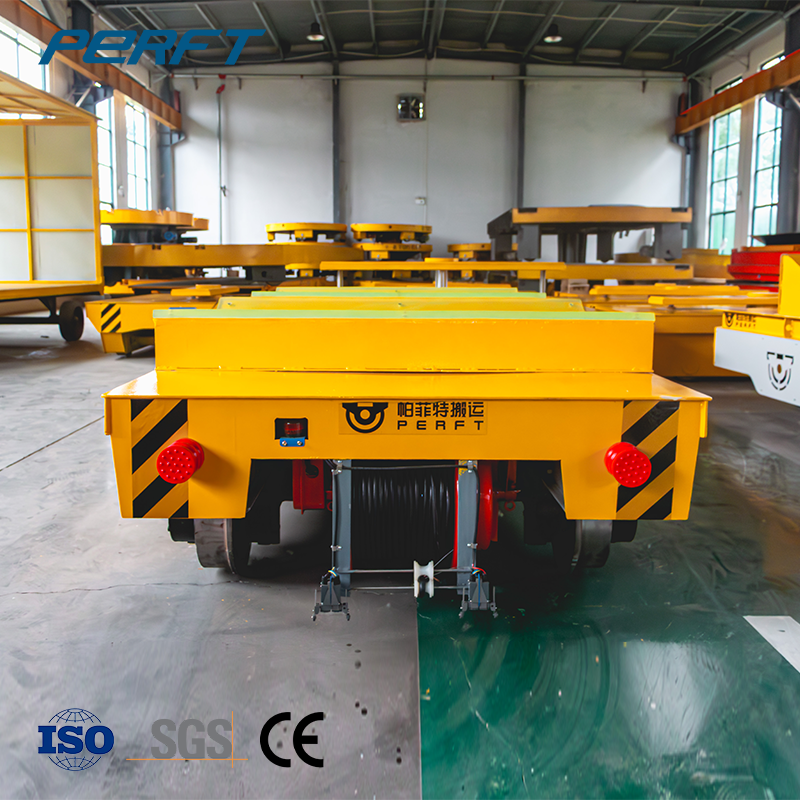

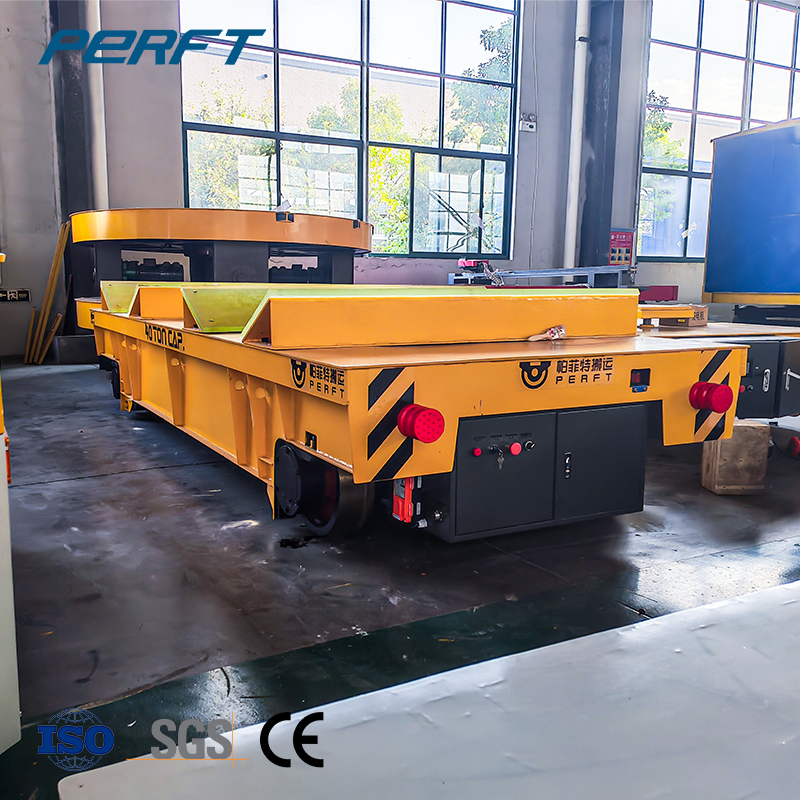

Motorized Cable Reel Transfer Cart : Motorized reel ensures the cable is neatly wound, preventing trips, crushes, and floor contamination.
High-Voltage Direct Feed: Stable 380V/660V power supply without the voltage drop issues associated with long-distance track conduction.
Zero Battery Maintenance: No need for watering, charging cycles, or battery replacements.
Clean Floor Operation: Ideal for facilities with high foot traffic or strict hygiene standards.
Variable Frequency Drive (VFD): Provides smooth acceleration and deceleration, protecting the load and maintaining consistent cable tension.
Extended Travel Range: Capable of handling transport distances up to 200 meters on a single reel.
(Specifications reflect real-world industrial tolerances. Custom engineering available.)
|
Parameter |
Specification Range |
|
Model |
BJT Series (Motorized Cable Reel) |
|
Load Capacity |
10 Tons – 300 Tons (Customizable) |
|
Typical Models |
BJT-20T, BJT-50T, BJT-100T, BJT-150T, BJT-200T |
|
Table Size |
2000x1500mm – 8000x3500mm (Customizable) |
|
Running Speed |
0–25 m/min (VFD Adjustable) |
|
Power Supply |
AC 380V/660V via Motorized Cable Reel |
|
Max. Cable Length |
Up to 200 Meters |
|
Reeling Mechanism |
Reeling Mechanism |

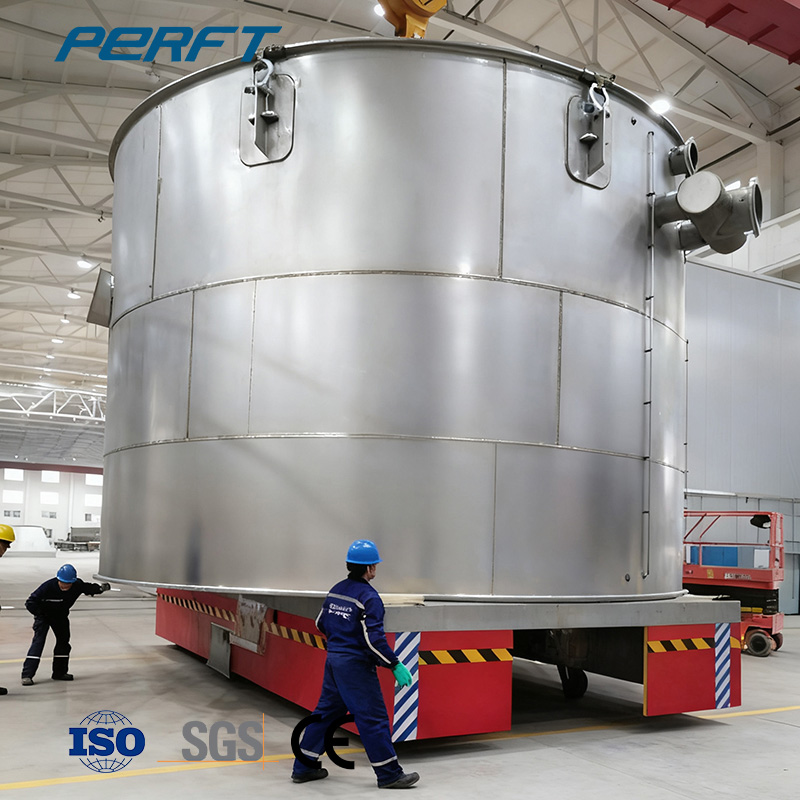

Shipbuilding & Heavy Steel Fabrication:
Utilized for moving massive prefabricated sections over extended distances within confined assembly halls.
Case Example: A BJT-150T motorized cable reel cart transports a 130-ton ship block 180 meters from the welding shop to the blasting room. The automated reel manages the lengthy cable efficiently, keeping the pathway clear for forklifts and personnel.
Automated Warehousing & Logistics:
Ideal for long-range transport of heavy pallets or machinery between disparate warehouses.

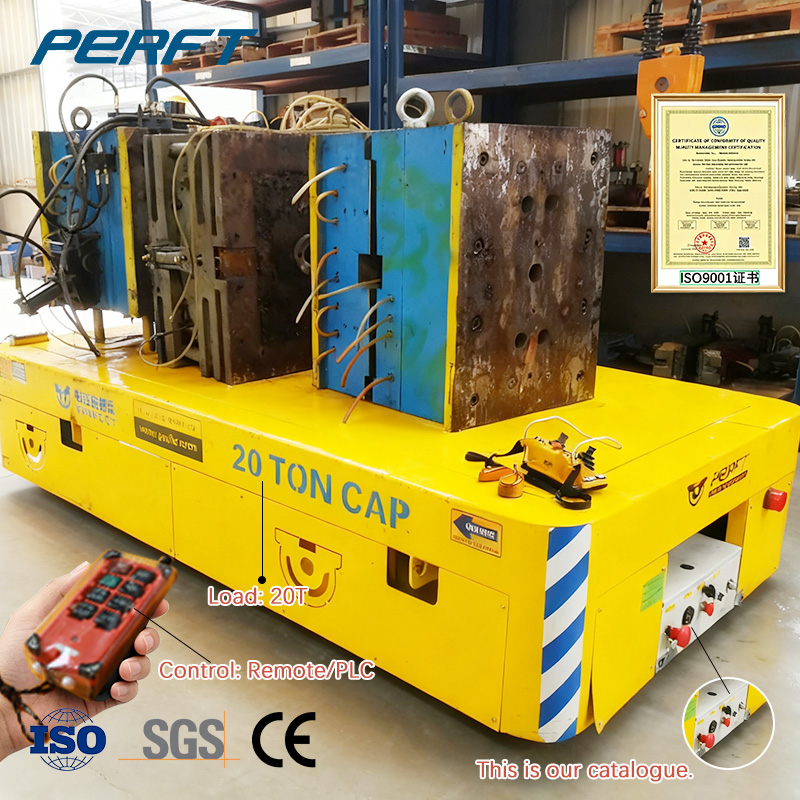

Case Example: A BJT-50T electric flat car shuttles heavy injection molds between two buildings 150 meters apart. The cable is guided by an overhead C-rail, ensuring zero floor obstruction and maintaining a clean aisle.

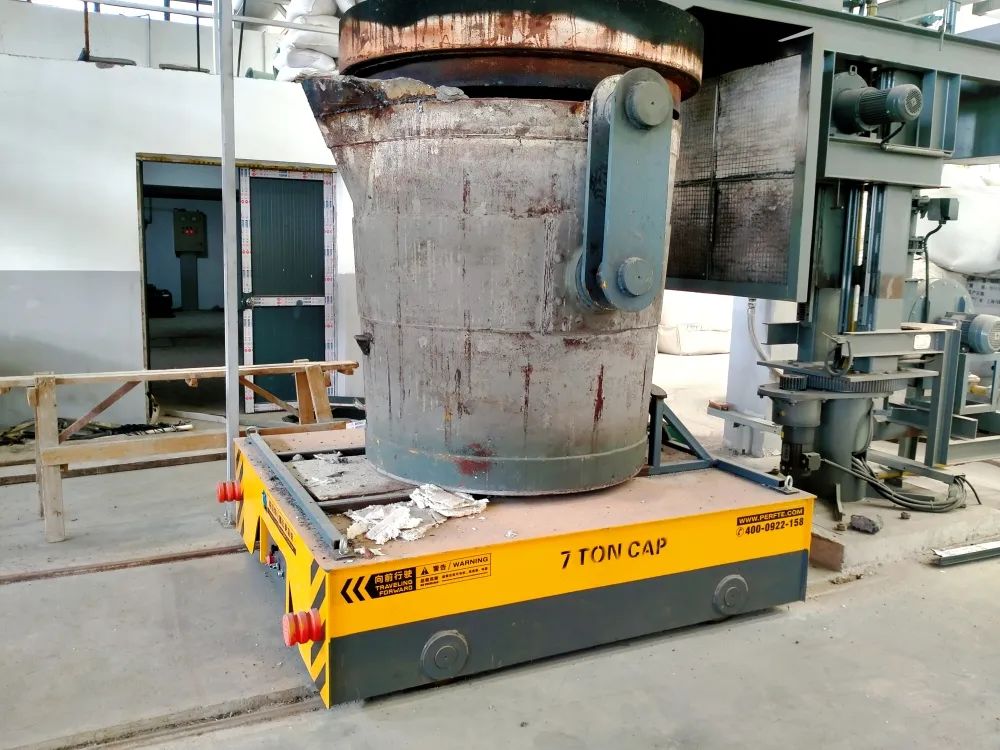

Metallurgy & Foundries:
Transporting heavy molds or scrap buckets in areas where floor space is shared with other mobile equipment.
Case Example: A BJT-30T cable reel powered cart moves sand molds. The cable is protected by a steel tow chain, preventing damage from hot sand or sharp metal edges common in foundry environments.
We tailor the reel and cable system to your specific site constraints:
Reeling Technology: Selection between torque motor (constant tension) or magnetic coupling (overload protection) based on precision requirements.
Cable Guidance: Provision of C-rails or I-beam tracks to guide the cable, preventing tangling during directional changes.
Cable Specification: High-temperature resistant cables for furnace proximity; anti-oil and abrasion-resistant rubber cables for harsh industrial use.
Control Integration: PLC integration for automated start/stop sequences. Secondary tension sensors to halt the cart automatically if the cable snags.

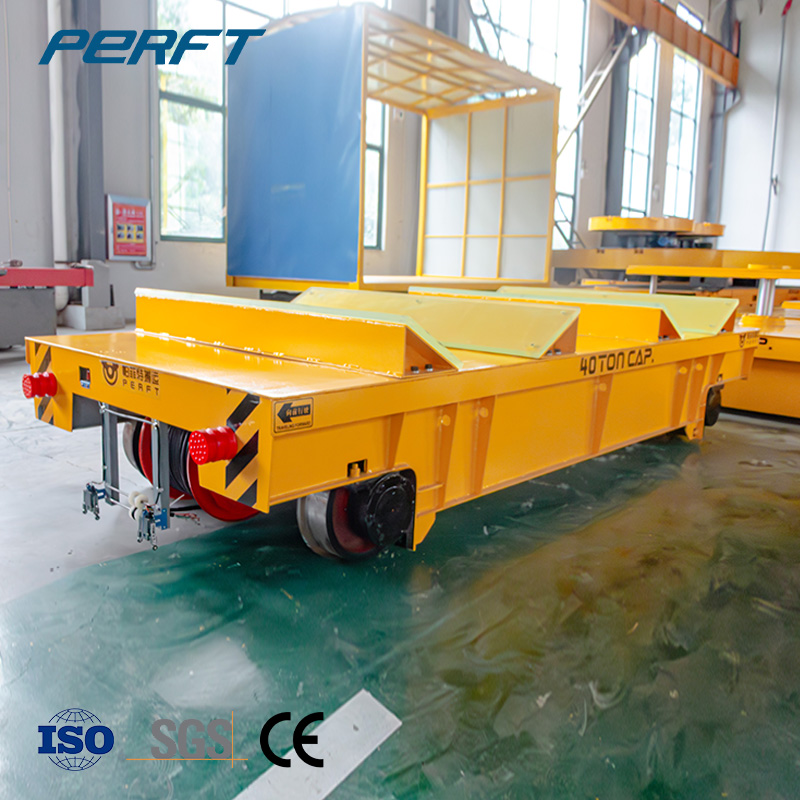

Deck Configuration: V-decks for cylindrical loads, lifting decks for precision alignment, or roller decks for facilitated loading.
In-House Reel Engineering: We manufacture our own cable reels. We do not utilize generic parts; we design the reel specifically for the cart's operational speed, acceleration, and cable weight.
Tension Control Expertise: We calculate the exact tension parameters required to prevent cable sagging or tensile failure, significantly extending cable service life.
Practical Installation Support: We provide comprehensive layouts for C-rails and anchoring points, ensuring seamless commissioning of the cable guidance system.
Proven Industrial Reliability: Our BJT heavy duty cable reel trolleys operate continuously in demanding steel mills and shipyards, validating the robustness of our reeling mechanisms.
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
Q: What is the maximum travel distance for a BJT motorized cable reel cart?
A: Standard reels accommodate up to 200 meters. For greater distances, a site assessment is required; however, transitioning to a BDG rail-powered system often becomes more practical beyond this length.
Q: How does the cart prevent cable damage if it snags?
A: The BJT reel incorporates a tension sensor. If resistance surpasses the preset limit , the cart initiates an immediate emergency stop to prevent cable rupture.
Q: Can the BJT cart navigate curved pathways?
A: Yes, but it necessitates a cable guidance system to steer the cable around bends. Sharp curvature induces increased mechanical stress on both the cable and the reeling mechanism.
Q: What is the typical service life of the power cable?
A: With appropriate guidance and tension control, the cable can endure several years of heavy use. Replacement is straightforward—we provide specifications for local sourcing or direct procurement.
Q: How does the BJT compare to the BTL (dragging cable) model?
A: The BJT offers a cleaner, safer floor environment and supports longer distances, albeit at a higher initial cost. The BTL is more economical and simpler to maintain but risks cable damage from floor debris and is restricted to shorter runs.
Q: Is the exposed cable a safety hazard for personnel?
A: No. The cable is elevated or contained within a guidance system, isolating it from personnel. The power interface utilizes standard industrial connectors protected by circuit breakers.
For a clean floor, long-distance heavy transport solution, provide your travel distance, load weight, and facility layout.
We will engineer the optimal reel size, cable specification, and guidance system for your BJT motorized cable reel transfer cart.
