Steerable Electric Trackless Transfer Vehicle Industrial Tugger Trolleys

Load Capacity: 1-1500 tons

Speed: 20 m/min or ad your needs

OEM&ODM: Support

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Advantage: peculiar set-up makes the transfer cart save cost and operate more

Description

Steerable electric trackless transfer trolley industrial tugger trolleys are used to move molds, coils or materials between the press room and the mold storage and maintenance area. The advantage of this kind of Steerable electric trackless transfer carriage industrial tugger trolleys is that the entire length of the manufacturing facility can be moved, where the mold moved by the crane is limited by the travel distance of the crane, or must be transferred from the crane bracket to the crane bracket. Our standard heavy-duty design is controlled by a handheld button controller with a small turning radius.

Steerable electric trackless transfer trolley Need To Lay Tracks, Which Will Increase Construction Costs. But Trackless Electric Flat Cars Do Not Need To Lay Tracks, Which Not Only Saves Costs, But Also Improves Flexibility And Can Adapt To Various Working Environments. The Trackless Flat Car Is Used As A Cross-Span In The Workshop. It Does Not Run On Tracks But Runs On The Ground Of The Workshop. The Power Source Of The Trackless Electric Flat Car Is The Battery. This Kind Of Electric Car Is Called The Trackless Electric Flat Car. The Main Components Are Composed Of Frame, Battery, Motor, Reducer, Wheels, Electrical Appliances, Etc.

APPLICATION:

Steerable electric trackless transfer trolley can be used for coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mold, beam, container, heavy equipment, aluminum product, compressor, polycrystalline silicon, motor, building materials, scrap, pallet and other material transport in the factory.

Application Field Of Transfer Carts: The Heavy Material Handling In Brick Factory, Kiln Factory, Refractory Factory, Ceramic Factory, Roasting Factory, Flour Mill, Beneficiation Plant, Foundry, Chemical Plant, Charge Plant, Breeding Farm, Etc.

Packing & Shipping -Application Field Of Transfer Carts: The Heavy Material Handling In Brick Factory, Kiln Factory, Refractory Factory, Ceramic Factory, Roasting Factory, Flour Mill, Beneficiation Plant, Foundry, Chemical Plant, Charge Plant, Breeding Farm, Etc.

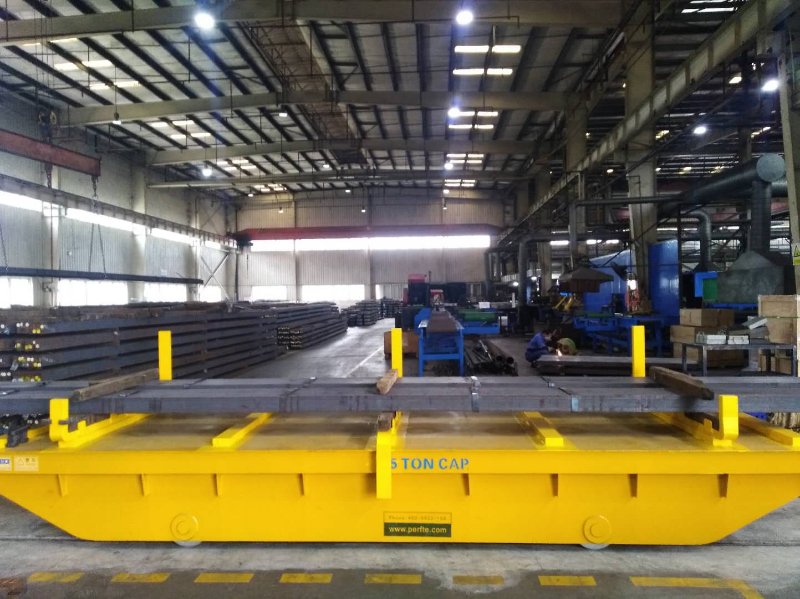

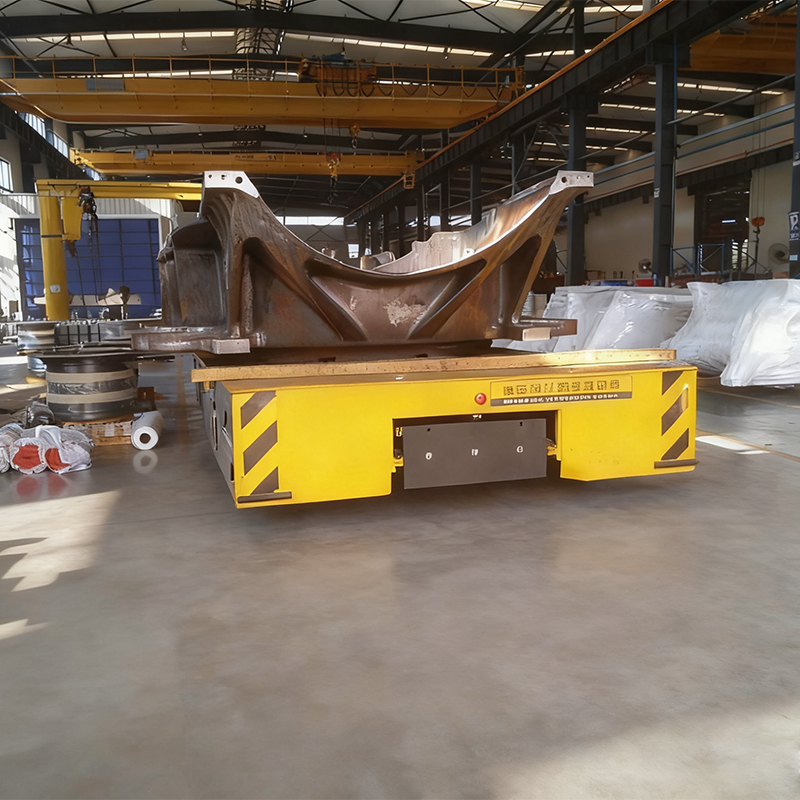

Steerable electric trackless transfer trolley is a kind of trackless material handling car.
* It is powered by storage battery, which is ideal for moving materials, dies, coils or working in progress throughout a manufacturing facility without limitations to track length and distance.
* The cart is installed and equipped with battery and intelligent charger respectively.
* There is PLC program and speed controller which enables the transfer cart to move forward,backward, turn left or right and,adjust speed accordingly.
* Our standard heavy-duty design is capable of transferring 50 tons at 25m per minute with small turning radius.

Product Usage:
• Steel mill: transferring steel products such as steel ladles, billets, coils etc, from one location to another;
•
Workshop: transport heavy machinery or equipment;
• Paper industry: handling paper roll;
• Heavy manufacturing industry: Injection Molding transfer;
• Painting and blasting room: transfer workpiece;
• Iron, Steel, Tube Manufacturing;
• Fabricated Structural Metal;
• Plate Work;
• Metal Heat Treating;
• Mining Equipment Manufacturing;
• Industrial Mold;
• Foundry;
Steerable Transfer Trolley 2



Parameters

Mold 5T 10T 15T 20T 30T
Rated Load(T) 5 10 15 20 30
Table Size(mm) 2500*1500 3000*2000 3200*2000 4000*2000 5000*2200
Height(mm) 600 700 750 750 800
Wheel Quantity 4 6 8 8 12
On cement floor Tire Specification 305*165 559*254 559*356 22*9-10 22*9-10
Tire Material Polyurethane Solid Wheel, Press-on Solid Tire, Air Tire
On rail Rail Inner Gauge(mm) 1200 1435
Wheel Material LD steel wheel, Angel box wheel
Frame Material Q235 Q345
Color Customized
Speed(km/h) 0-20 0-15



Process

  • 360 degree motorized rotation without causing any damage to the floor.

  • Powered by storage battery, turning freely without any cable strings.

  • Controlled easily by pressing the buttons and speed controller.

  • High level automation(self propelled/steerable)

  • The largest capacity can reach to 100t

  • Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)

  • Robust sturdy car frame

Notes

  • 1 Load capacity ,table size and rail gauge can be customized
  • 2 Options : Remote radio control (imported or made in China )
  • 3 Automatic stop when detecting obstacle or person ,limit switches (to limit travel)
  • 4 Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )
  • 5 motor (DC motor with brush and DC motor brushless )
  • 6 Electrical parts (imported or made in china )

Application

The battery powered transfer car is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.

The transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
