Load Capacity: 1-500 tons
Speed: 1-20 m/min or as your needs
Certificate: SGS, ISO9001, SAS
Tabletop,：customized according to materials
Wheels: Cast Steel Polyurethane Rubber Wheel
Application： Metal processing industry/packaging printing industry/wire and cable industry/rubber tire industry
Perfect Coil Transfer Cart are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.

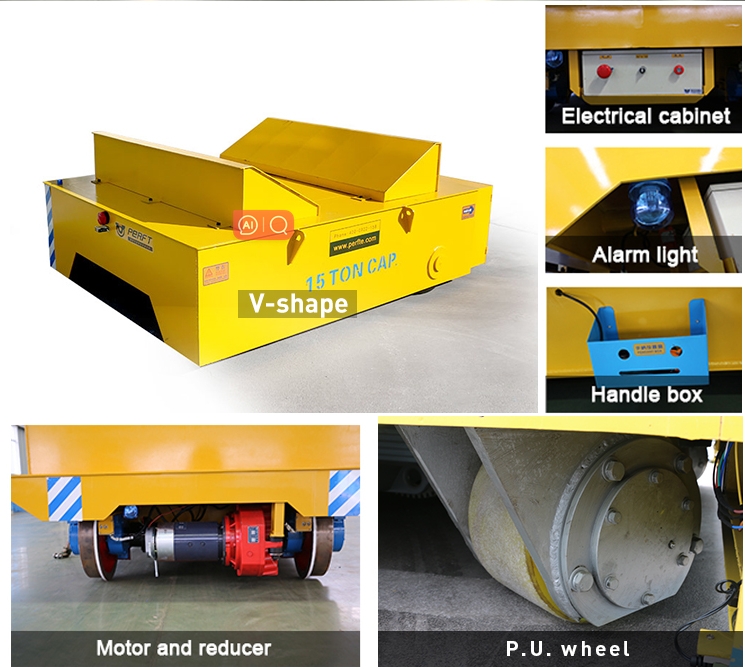

Coil Motorized Transfer Cart (also referred to as "steel coil cars" or "coil steel cars") is a special type of rolling stock designed to transport sheet metal coils (i.e. coils) - steel coils, which are usually There is a V-shaped frame, because the steel coil is a cylinder and it is easy to fall, so there is a V-shaped frame.
Metal processing industry: Suitable for heavy-duty coils such as steel coils and aluminum coils, used in steel and aluminum processing plants. Customizable countertops and adjustable side enclosures prevent steel rolling and do not occupy large lifting equipment.
Packaging and printing industry: for thin and light rolls such as paper rolls and plastic film rolls, used in printing factories and plastic packaging factories.
Wire and cable industry: Some axial cable coils and copper wire coils are used in cable and wire factories.
Rubber tire industry: elastic rolls such as tread film, used in tire factories and rubber product factories
| Modle | KPX-10T | KPX-30T | KPX-50T | KPX-80T | KPX-100T |
| Table Size (m) | 3.6*2.0*0.5 | 4.5*2.2*0.6 | 5.5*2.5*0.65 | 6.0*2.6*0.8 | 6.5*2.8*0.9 |
| Rail inner Gauge | 1435mm | 1435mm | 1435mm | 1800mm | 2000mm |
| Wheel Dia. | 350mm | 400mm | 500mm | 600mm | 600mm |
| Running Speed | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min |
| Motor Power | 1.6kw | 3.5kw | 5kw | 8kw | 10kw |
| Capacity | 180Ah | 250Ah | 330Ah | 400Ah | 440Ah |
| Volatge | 48v | 48v | 48v | 72v | 72v |
| Max Wheel Load | 42.6Kn | 110.4Kn | 174Kn | 278.4Kn | 343.8Kn |
| Reference weight | 4.2t | 6.8t | 8t | 12.8t | 14.6t |
| Recommend Rail | P24 | P38 | P43 | P50 | P100 |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
Coil Motorized Transfer Cart are commonly used in manufacturing plants, warehouses, and shipping yards to transport heavy loads safely and efficiently. They are especially useful in the steel and metal industries, where large steel coils and rolls are frequently transported. Coil Motorized Transfer Cart can be used for a variety of applications, including loading and unloading trucks, transporting loads between facilities, and moving heavy loads around a manufacturing plant.
Coil Motorized Transfer Cart a versatile piece of equipment that can make material handling easier, safer, and more efficient. When choosing a coil transfer cart, consider the type of load you need to transport, your specific application requirements, and the features and product options available. With the right coil transfer cart, you can improve your material handling operations and increase productivity in your facility.
