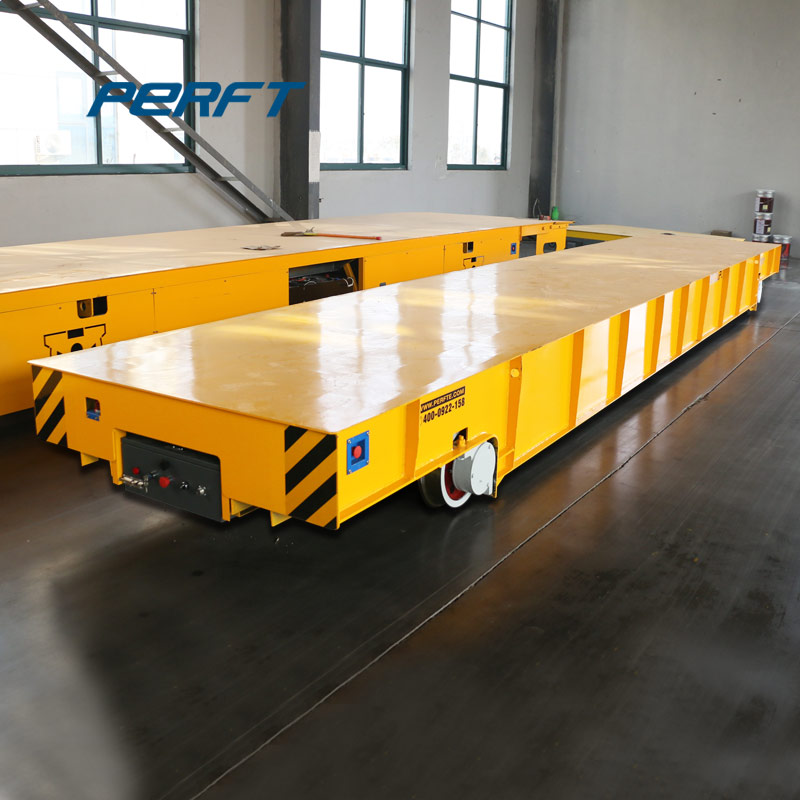

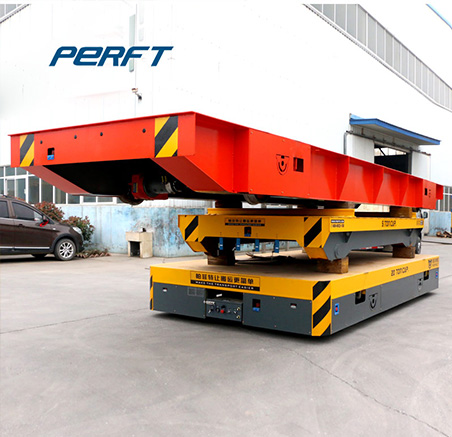

Custom Industrial Steel Structure Cable Drum Powered Transfer Wagon

Load Capacity: 1-1500 tons

Speed: 20 m/min or ad your needs

Certificate: SGS, ISO9001, SASO

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Featrue:  Custom Industrial Steel Structure Cable Drum Powered Transfer Wagon is also called a transfer wagon, which is a kind of electric material handling equipment.

Description

Description:

Custom Industrial Steel Structure Cable Drum Powered Transfer Wagon is also called a transfer wagon, which is a kind of electric material handling equipment. This kind of electric transfer car on the track is driven by a cable reel (also called a cable reel) to drive the wheels so that the car starts, stops, forwards, and reverses, accelerates and decelerates, etc. The electric transfer car can be used for “s” and curved railways.

The Custom Industrial Steel Structure Cable Drum Powered Transfer Wagon is made of high-quality steel. Most importantly, the frame design of our transfer vehicle is designed to increase box beams, thereby making the vehicle load less and less. Compared with other series of carts, the use time is unlimited; it does not have strict requirements for railway construction. The load capacity is not limited and can be used frequently. If the wiring distance exceeds 50 meters, you need to install a router to assist the cable.

Advantages:
1. The series car has safety and mobility
2. Low noise.
3. Economize labor force, economize cost.
4. Simple structure.
5. Suitable for occasions where high using frequency.
6. Environment-friendly.
7. Convenient operation.
8. Easy maintenance.
9. The low requirement to the track.

10.Any dead weight.

Application

Cable drum-powered transfer wagons mainly use in heavy industry, light industry, machinery, petroleum, metallurgy, mining, chemical, ship, etc. It is used to handling the steel coil, aluminum coil, galvanized coil, transformer, cable reel, casting, motor, container, compartment, container, pressure vessel, etc.

BJT01



Parameters

Model BTL-2t BTL-20t BTL-50t BTL-100t BTL-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Recommended Rail Model P15 P24 P43 QU100 QU100

Process

  • 360 degree motorized rotation without causing any damage to the floor.

  • Powered by storage battery, turning freely without any cable strings.

  • Controlled easily by pressing the buttons and speed controller.

  • High level automation(self propelled/steerable)

  • The largest capacity can reach to 100t

  • Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)

  • Robust sturdy car frame

Notes

  • 1 Load up to 300t and high using frequency.
  • 2 It is suitable for the running distance less than 20m.
  • 3 With simple structure and low cost make it popular for workshop transportation.
  • 4 Without using time limitation and has no strict demand for rail erection.
  • 5 This Heavy Duty Wagon Cart can be applied in the environment such as severe environment, high temperature, anti-explosive etc.

Application

The cable drum powered Heavy Duty Wagon Cart is mainly applied in assembly line (ring production line,  loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

Advantages of Transfer Flat Cart

Low noise  It causes low noise level.

Maximum safety  Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.

Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads.

Cost-Effective  They are a cost effective alternative to purchasing another powered transfer cart. For on-rail
