Load Capacity: 1-500 tons
Speed: 20 m/min or as your needs
Price： US $ 4000 - 4500
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Polyurethane Rubber Wheel
Advantage: peculiar set-up makes the transfer cart save cost and operate more

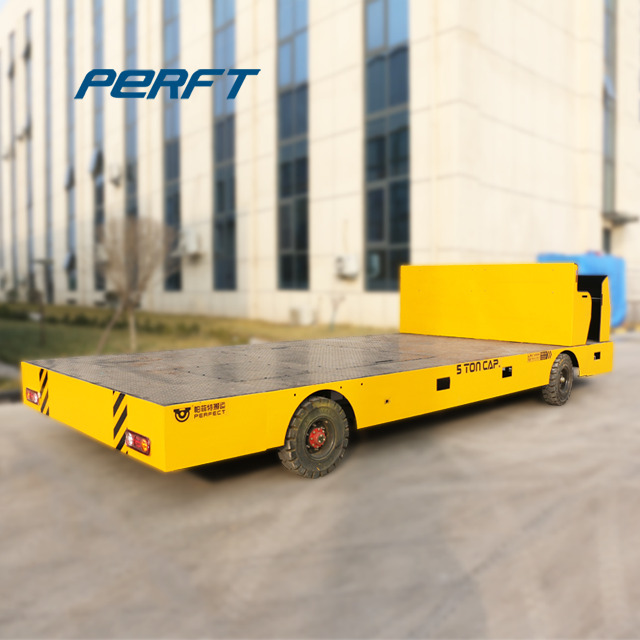

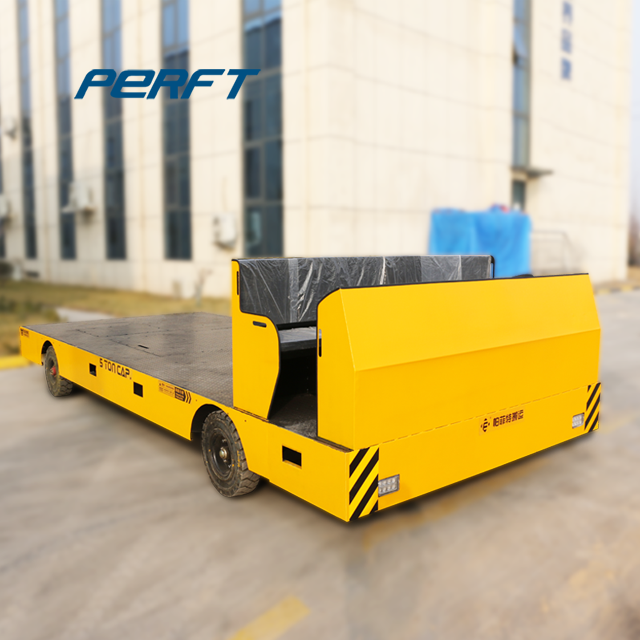

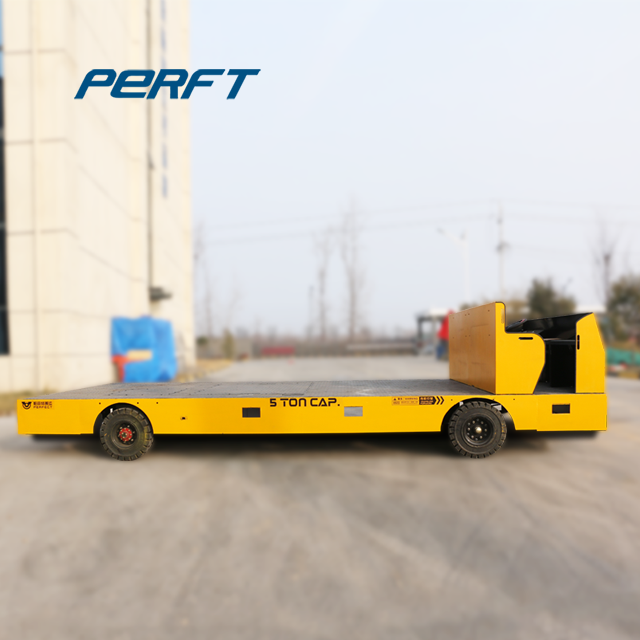

Material handling vehicles with steering wheels that require operator control are designed specifically for industrial environments where direct control and precise manipulation by the operator are crucial. Unlike automatic or remotely operated vehicles, this model allows the driver to have full control, allowing for real-time adjustments, quick turns, and safe handling of medium to heavy loads.
This vehicle is designed for operator visibility, intuitive control, and responsive steering, ensuring efficient material transportation without the risk of collision or load misalignment.
1. The steering control is relatively flexible
Equipped with a standard steering wheel, allowing the operator to turn intuitively.
Even under heavy load conditions, it can provide smooth directional control.
Achieve precise alignment when loading, unloading, or navigating in narrow passages.
2. Operator centered design
The seat position, pedal layout, and steering wheel angle have been optimized for comfort and controllability.
The operator has a clear view of the goods and surrounding environment, reducing accidents and misalignment.
Designed for continuous operation with minimal fatigue.
3. Load handling stability
The platform is designed to balance medium and heavy materials during transportation.
The steering system has been adjusted to prevent load swing during acceleration, turning, or braking.
Unlike automatic carts, operators can correct load alignment in real-time.
This model is selected when precise operator control is required:
Aligning heavy or irregular loads during transport
Navigating areas where automated guidance may fail
Handling materials that require real-time adjustment during movement
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |  |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quality | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for one Charge (Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P24 | P43 | QU100 | QU100 |
360 degree motorized rotation without causing any damage to the floor.
Powered by storage battery, turning freely without any cable strings.
Controlled easily by pressing the buttons and speed controller.
High level automation(self propelled/steerable)
The largest capacity can reach to 100t
Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
Robust sturdy car frame
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
The battery operated transfer trolley is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.
The battery operated transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
