Customized Electric Rail Transfer Vehicle for Heavy-Duty Industrial Material Handling

Meta Description

Discover our customized electric rail transfer vehicle for heavy-duty industrial material handling. Featuring multiple power supply options, reliable electric drive systems, and optional hydraulic lifting for factories and steel plants.

Motors: PMAC / AC high efficiency motors

Wheels: Cast Steel Polyurethane Rubber Wheel

Advantage: peculiar set-up makes the transfer cart save cost and operate more

Perfect can be customized with different load capacities, platform sizes, navigation systems, and functional configurations to meet specific production requirements.

Description

Product Introduction

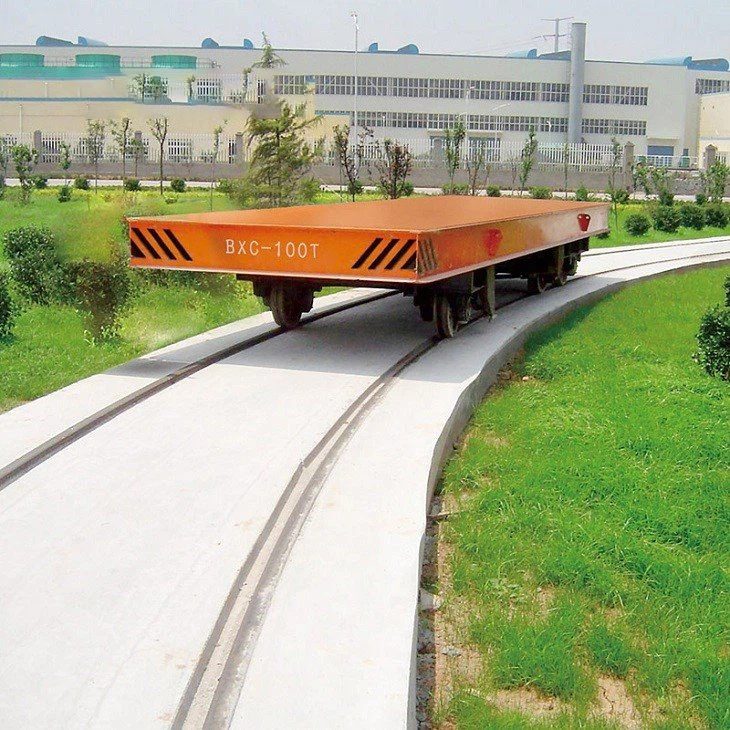

   The electric rail transfer vehicle is an electric material handling rail car, powered by a battery and driven by an electric motor. Electricity is an important energy source that is environmentally friendly, clean and has a high conversion rate. Electricity is used to drive the vehicle. Renew, promote the low-carbon development of the transportation industry, reduce transportation costs, save energy, and protect the environment.

  Our range of on-rail carts provides exceptional load capacity, making them ideal for both indoor and outdoor use within factory sheds. These vehicles operate efficiently on battery power, offering flexibility with options for electric-wire connectivity or diesel self-propulsion.

 Feature of electric rail transfer vehicle

*Suitable for short distance, high frequency, long time, uninterrupted working environment;

*Explosion-proof, high temperature resistance, suitable for various occasions;

*There are no strict requirements for railway construction;

*Unrestricted running time, safe and convenient operation;

*Low price, simple structure and easy maintenance;

*Long service life, excellent performance in the workshop;

*Equipped with hydraulic lifting system for more purposes.



Parameters

Technical Parameters

Model

BXC-2t

BXC-20t

BXC-50t

BXC-100t

BXC-150t

Rated Load(t)

2

20

50

100

150

Table Size(mm)

Length(L)

2000

4000

5500

6500

10000

Width(W)

1500

2200

2500

2800

3000

Heigth(H)

450

550

650

900

1200

Wheel Diameter(mm)

270

350

500

600

600

Ground Clearance(mm)

50

50

50

75

75

Running Speed(min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kw)

1

2.2

5

10

15

Battery Capacity

180

180

330

440

600

Battery Voltage

24

48

48

72

72



Process

  • 360 degree motorized rotation without causing any damage to the floor.

  • Powered by storage battery, turning freely without any cable strings.

  • Controlled easily by pressing the buttons and speed controller.

  • High level automation(self propelled/steerable)

  • The largest capacity can reach to 100t

  • Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)

  • Robust sturdy car frame

Notes

  • 1 Load capacity ,table size and rail gauge can be customized
  • 2 Options : Remote radio control (imported or made in China )
  • 3 Automatic stop when detecting obstacle or person ,limit switches (to limit travel)
  • 4 Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )
  • 5 motor (DC motor with brush and DC motor brushless )
  • 6 Electrical parts (imported or made in china )

Hot Products

Get A Free Quote

Please feel free to give your inquiry in the form below .We will reply you in 24 hours .

    • Load Capacity:
    • Whether car is self -propelled:
                                                                   If yes ,the power is from:
    • Table size:
    • Traveling distance:
      Use Place:
    • Name*:
      Email*:
    • Phone:
      Country:
    • Message:

    Application

    The Electric Rail Transfer Vehicle is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes.

    The Electric Rail Transfer Vehicle has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
