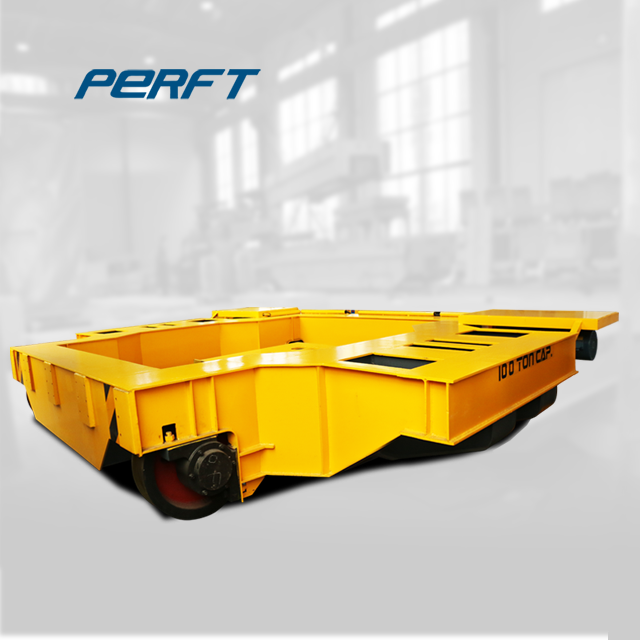

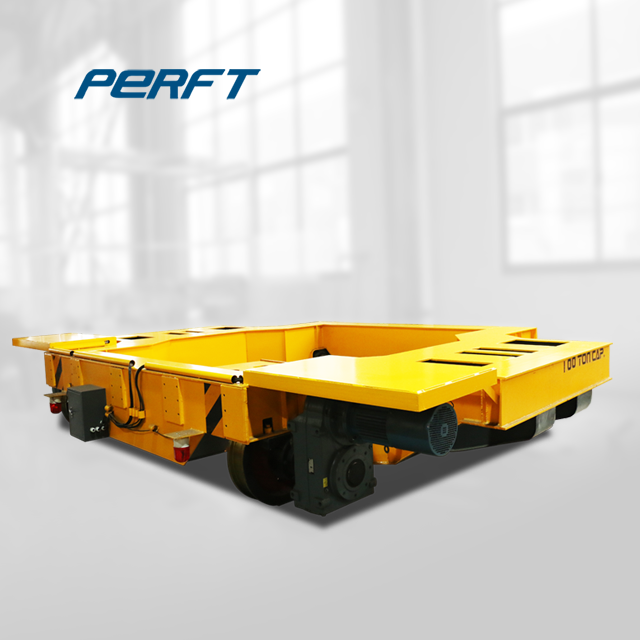

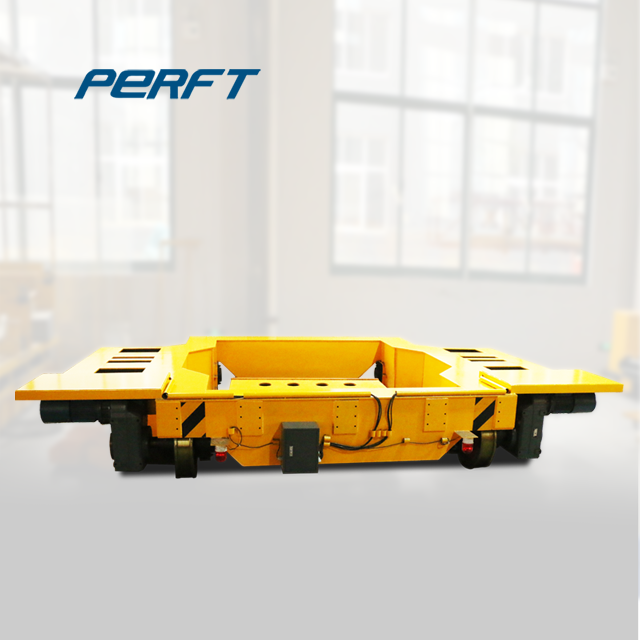

Load Capacity: 100tons（customizable）
Speed: 1-20 m/min or ad your needs
Certificate: SGS, ISO9001, SASO
Motors: PMAC / AC high efficiency motors
Wheels: Cast Steel Polyurethane Rubber Wheel
Assemblable material: steel pipe
The transfer vehicle powered by heavy-duty cable reels is composed of cable external plugs as the power source for the flatbed truck series. It supplies power to the transport vehicle. Direct current flows into the electrical box, which supplies power to the operating system and motor. The control unit or remote control controls the motor. Reverse, park, etc., and then control the forward, backward, start, and stop of the transfer vehicle.
-There are other types of heavy-duty track transfer vehicles, such as low-voltage tracks and battery powered transfer vehicles
1.Suitable for extreme heavy loads, capable of bearing up to 300 tons
2.Can maintain stable operation under heavy load, ensuring the safety of goods
3.Most heavy-duty materials, large steel, mining and other transport vehicles can be customized according to the materials.
4.The transfer vehicle can be customized according to the environment, such as some high-temperature and explosion-proof environments
1. Strength design and high standard materials
Perform force calculation and finite element analysis (FEA) based on tonnage, and use high-strength structural steel and professional welding technology to ensure long-term stability and no deformation of the vehicle body in heavy load environments.
2. Drive system and electronic control safety design
Match high torque motors with industrial reducers based on load, using soft start/stop control. The electronic control system has multiple protections such as overcurrent, undervoltage, and short circuit to ensure reliable operation.
3. Heavy duty wheelsets and precision assembly
High hardness cast steel wheels and impact resistant bearings are selected, and the concentricity of the wheel set and the assembly accuracy of the frame are strictly controlled to ensure high load-bearing capacity, smooth operation, and long service life of the vehicle.
4. Vehicle testing before leaving the factory
Each device must pass full load testing, durability operation, braking performance, and electrical protection testing to ensure stable production upon delivery.
Product Parameter:
| 1 | Load capacity（t） | 1-300 ton |
| 2 | Maximum impact load（t） | – |
| 3 | Size specifications（mm） | (Customized） |
| 4 | Table height（mm） | Customized |
| 5 | Two-wheel track（mm） | – |
| 6 | Power supply mode | Lithium battery or battery |
| 7 | Operating mode | Car handle or remote control |
| 8 | Drive mode | Motor-driven |
| 9 | Brake method | Mechanical + automatic brake |
| 10 | Running speed（km/h） | 0-30（Adjustable speed） |
| 11 | Running noise | ≤70db |
| 12 | Wheel diameter（mm） | – |
| 13 | Continuous running time | 4-6h |
| 14 | Stationary state | Will lock, unlock |
Applications:
Mold workshop, underground mine, engineering, aerospace, coal, nuclear energy, water conservancy, etc.
The series car has safety and mobility
Low noise.
Economize labor force, economize cost.
Simple structure, Environment-friendly.
Suitable for occasions where high using frequency.
Convenient operation, Easy maintenance.
The low requirement to the track, Any dead weight.
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
Heavy Load Battery Powered Transfer Car mainly use in heavy industry, light industry, machinery, petroleum, metallurgy, mining, chemical, ship, etc. It is used to handling steel coil, aluminum coil, galvanized coil, transformer, cable reel, casting, motor, container, compartment, container, pressure vessel, etc.
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application
