BZP Rail Turntable (Turnplate) | Heavy Duty Slew Ring Platform for Track Switching

Meta Description

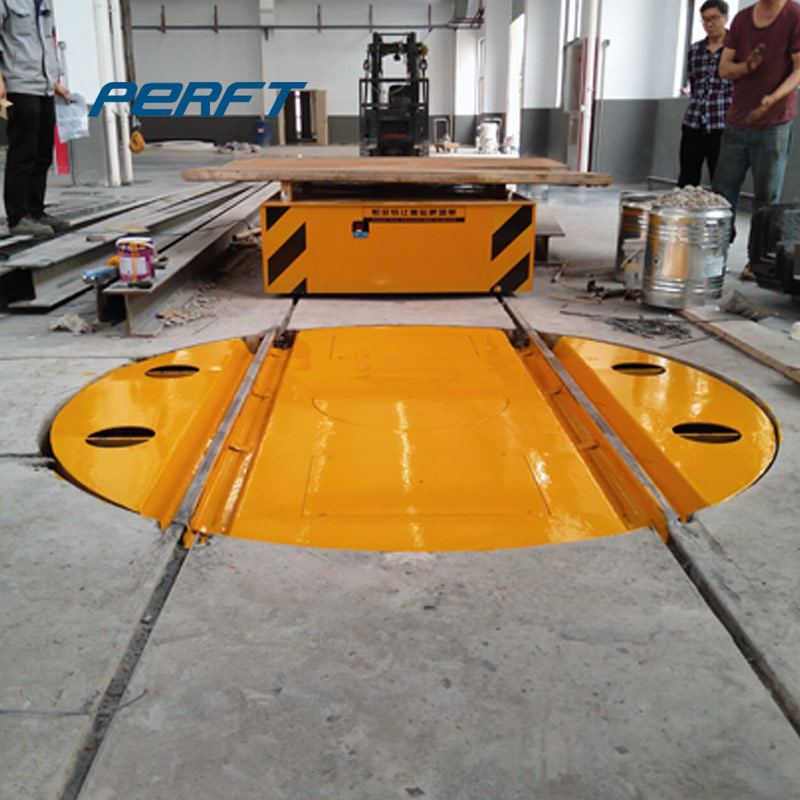

BZP rail turntable for heavy duty transfer carts (BDG/BJT/RGV). ±1mm track alignment. Motorized rotation with mechanical lock. Custom diameters up to 500T. Get a quote.BZP-100T slew ring rail turntable rotating a BDG transfer cart 90 degrees with ±1mm alignment accuracy.

Key Features

Indexed Rotation: Standard rotations at 90°, 180°, or 360°. Hits the mark every time.

Precision Alignment: ±1mm repeatability where the turntable rail meets the fixed track. Critical for high-speed RGV traffic.

Dead Locking: Hydraulic or pneumatic locks engage after rotation. The table won’t shift, even under a moving 200-ton load.

Controlled Acceleration: VFD prevents jerking. Protects the gear teeth and the load.

Send E-mail Get Price
Download Pdf

Description

Product Overview

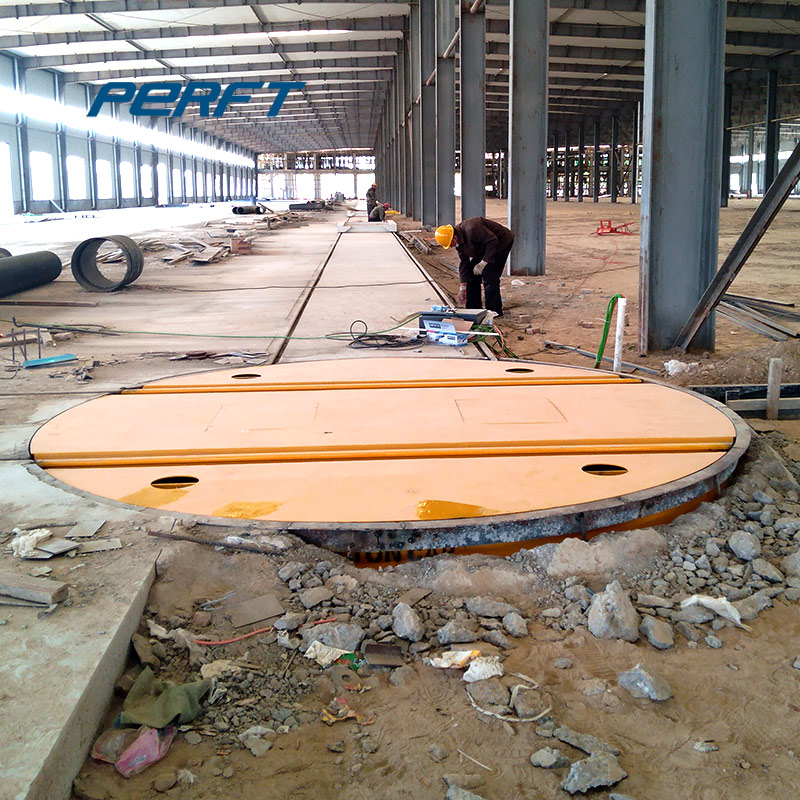

The BZP rail turntable is the joint in your track system.

Straight rails are simple. When a BDG, BJT, or RGV cart hits a T-junction or needs to switch tracks, it drives onto the BZP. The table rotates, and the rails mate up—±1mm accuracy (requires concrete foundation tolerance ≤ 3mm/m).

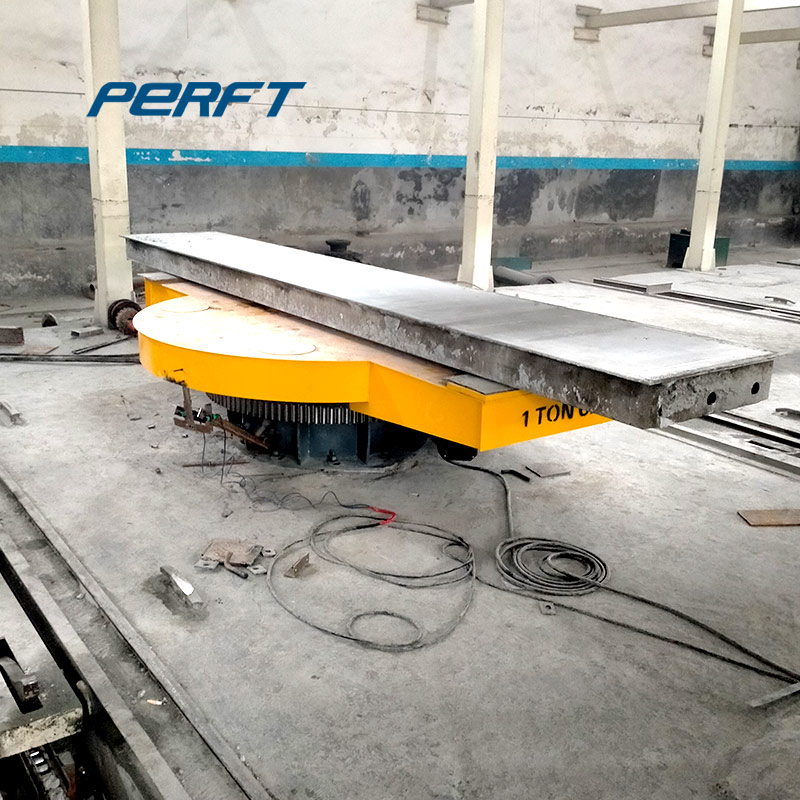

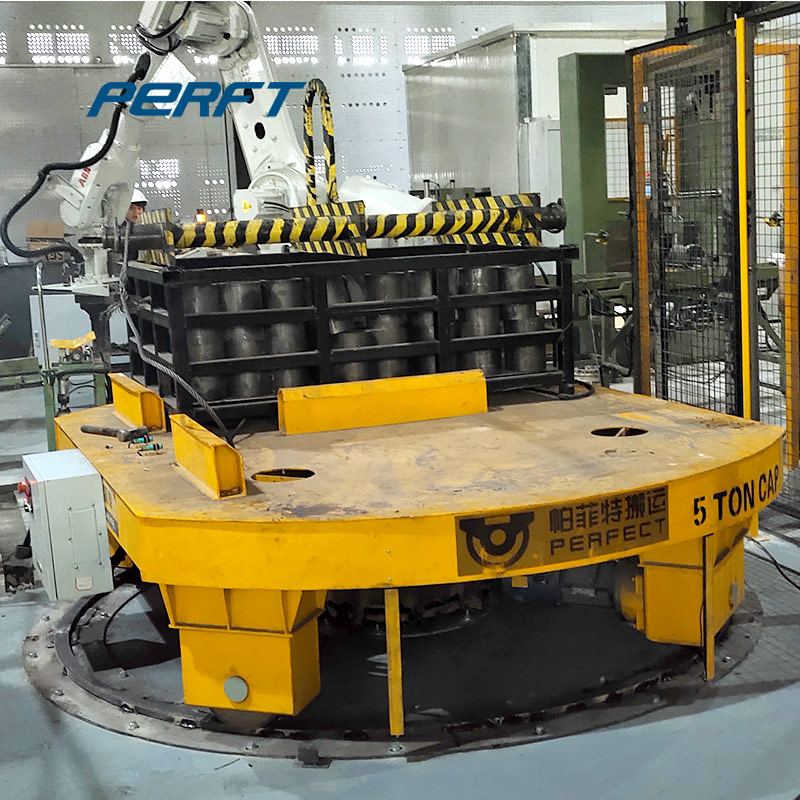

It is built for loads from BZP-5T to BZP-500T. Rotation is driven by a geared motor through a heavy slew ring (ring gear). No guessing, no shimming, just indexed positioning. If the power dies, a manual release lets you crank it back into alignment with a wrench.

Parameters

Key Features

Indexed Rotation: Standard rotations at 90°, 180°, or 360°. Hits the mark every time.

Precision Alignment: ±1mm repeatability where the turntable rail meets the fixed track. Critical for high-speed RGV traffic.

Dead Locking: Hydraulic or pneumatic locks engage after rotation. The table won’t shift, even under a moving 200-ton load.

Controlled Acceleration: VFD prevents jerking. Protects the gear teeth and the load.

Manual Release: Power out? Use the hand crank. We don't sell boat anchors.

Dual Control: Auto mode for RGV. Manual mode for standard carts.



Technical Specifications

(Engineered for structural integrity and precision. Non-standard sizes available.)

Parameter

Specification Range

Model

BZP Series (Rail Turntable)

Load Capacity

5 Tons – 500 Tons (Customizable)

Table Diameter

2000mm – 8000mm (Based on gauge and load)

Rotation Angle

90° / 180° / 360° (Custom angles available)

Alignment Accuracy

±1mm / ±2mm (Relative to fixed track; requires foundation ≤ 3mm/m)

Drive System

Geared Motor + Slew Ring (Ring Gear)

Rotation Speed

0.5 – 2 RPM (Adjustable)

Locking Mechanism

Hydraulic Pin / Pneumatic Dog / Electromechanical

Control Mode

Manual Pendant / Remote / PLC Auto (RGV Compatible)

Rail Type

QU70, QU80, QU100, QU120 (Matching cart rails)

Safety Features

Limit Switches, Photoelectric Sensors, Emergency Stop

Process

Applications & Case Studies

Automated Production Lines (RGV Integration):

Used at intersections where an RGV needs to switch between parallel assembly lines.

Case Example: A BZP-50T turntable sits at the junction of a main logistics line and a maintenance bay. When the RGV approaches, the PLC sends a rotation command. The BZP rotates 90 degrees, locks, and verifies alignment. Only then does the RGV proceed. Cycle time: 15 seconds.

Heavy Steel & Coil Warehousing:

Allowing transfer carts to change direction in tight indoor spaces.

Case Example: A steel service center uses a BZP-150T turntable to turn 100-ton steel coil carriers. The turntable’s slew ring supports the massive eccentric load of the coil. After rotation, hydraulic pins lock the table, allowing the BDG cart to cross safely.

Mining & Material Handling:

Switching heavy mine carts between underground levels or surface processing plants.

Case Example: A BZP-200T turntable handles loaded ore cars. The table is reinforced with checkered plate to resist slipping. The drive system is sealed against dust and moisture, ensuring reliability in harsh mining environments.

Notes

Why Choose Us

Slew Ring Expertise: We don’t buy generic rings. We machine the slew ring gear teeth to precise tolerances. Backlash is minimized to ensure the ±1mm alignment isn't just a theory—it’s a reality.

Structural Rigidity: We calculate the deflection of the table under max load. We over-engineer the base frame to ensure the table doesn’t bow in the middle, which would ruin the rail alignment.

No Stranded Assets: Even in a blackout, the manual release works. We don't sell you a boat anchor.

Integration Ready: We provide the electrical schematic for interlocking. We tell you exactly which relay to wire to your RGV’s "Go" signal. Plug and play.

Hot Products

BTL Trailing Cable Powered Transfer Cart working in factory

BTL Trailing Cable Powered Transfer Cart |Robust & Cost-Effective Heavy Haulage

Motorized Cable Reel Transfer Cart

Motorized Cable Reel Transfer Cart | Heavy Duty Electric Flat Car Manufacturer motorized-cable-reel-transfer-cart

BJT Conductor Rail Cart

BHX Conductor Rail Cart | Power from the Busbar, Not the Track

BDG Low Voltage Rail Powered Transfer Cart | Heavy Duty Electric Transfer Cart for Molten Metal & Heavy Loads

Get A Free Quote

Please feel free to give your inquiry in the form below .We will reply you in 24 hours .

    • Load Capacity:
    • Whether car is self -propelled:
                                                                   If yes ,the power is from:
    • Table size:
    • Traveling distance:
      Use Place:
    • Name*:
      Email*:
    • Phone:
      Country:
    • Message:

    Application

     FAQ

    Q: How accurate is the rail alignment after rotation?

    A: Standard accuracy is ±1mm relative to the fixed approach track. This requires a reinforced concrete foundation with tolerance ≤ 3mm/m. Soft foundations will compromise accuracy. For non-critical applications, ±2mm or ±3mm is acceptable to reduce cost.

    Q: What happens if the power fails while a cart is on the turntable?

    A: The mechanical brake holds position. To move it, use the manual release mechanism (hand crank or hydraulic hand pump). Once aligned and unlocked, the cart can be moved using its own drive system or manually assisted with levers. No signal, no movement.

    Q: Can the BZP handle eccentric loads (like a coil on one side)?

    A: Yes. We calculate the load distribution and reinforce the table structure. For extreme eccentricity, we recommend a dual-drive system to balance the torque on the slew ring.

    Q: How does it interface with an RGV system?

    A: The BZP acts as a slave device. It receives a "Rotate" command from the RGV’s PLC. Once rotated and locked, the BZP sends back an "In Position & Locked" signal. The RGV waits for this signal before proceeding.

    Q: Does the turntable rotate while the cart is moving?

    A: Negative. Dead logic: Cart moving = Table locked. Table turning = Cart blocked. No exceptions.

    Q: What maintenance is required?

    A: Minimal. Grease the slew ring raceway every 3–6 months. Check the limit switches and locking pins for debris. The gearmotor is sealed for thousands of hours.

    Q: Can a rail turntable be installed on an existing concrete foundation?

    A: Only if the existing foundation meets the ≤ 3mm/m tolerance. Otherwise, re-pour or use steel shim packs. We verify this before manufacturing.

    Contact Us

    A turntable is a critical junction. Don’t guess the dimensions.

    Send us your rail gauge, required load (BZP-xxT), rotation angle, and whether it needs to talk to an RGV.

    We will engineer a BZP turntable that fits your track and your control system.
