Independent hydraulic steer-by-cylinder on each wheel. Moves sideways, diagonally, or rotates in place (zero turning radius). No tire scrubbing.
Raises the entire 40-ton load smoothly. Maintains height without drift.
Runs on PU tires (Shore A 90-95). No damage to epoxy floors. No track installation costs.
Requires constant pressure on the remote. Release the button, all motion stops immediately.
Reinforced steel frame and high-capacity hydraulic cylinders prevent flexing under load.
Low speed control (0–20 m/min) allows operators to "creep" the load into exact position.

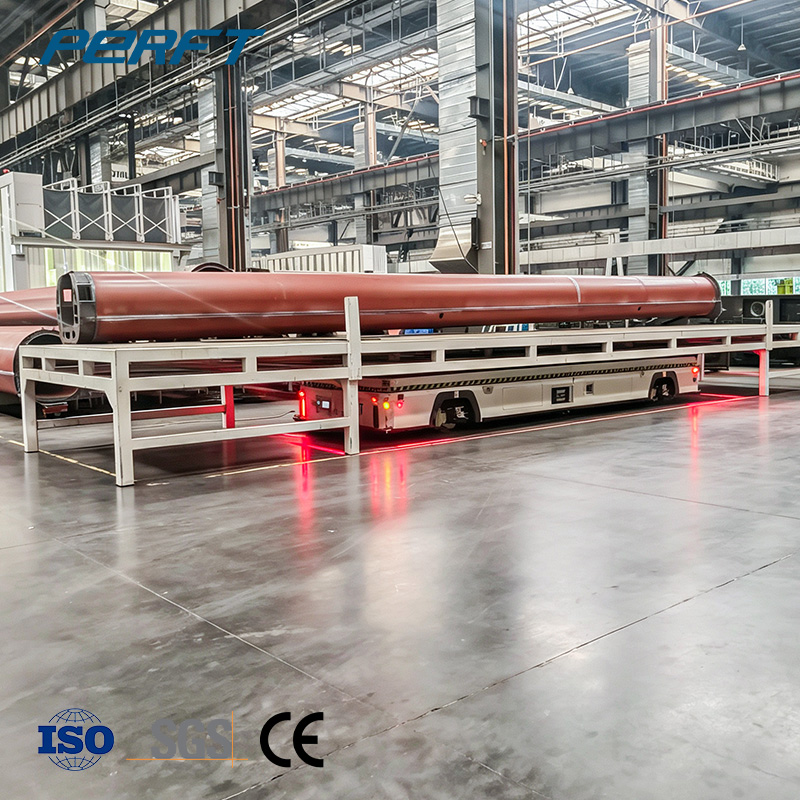

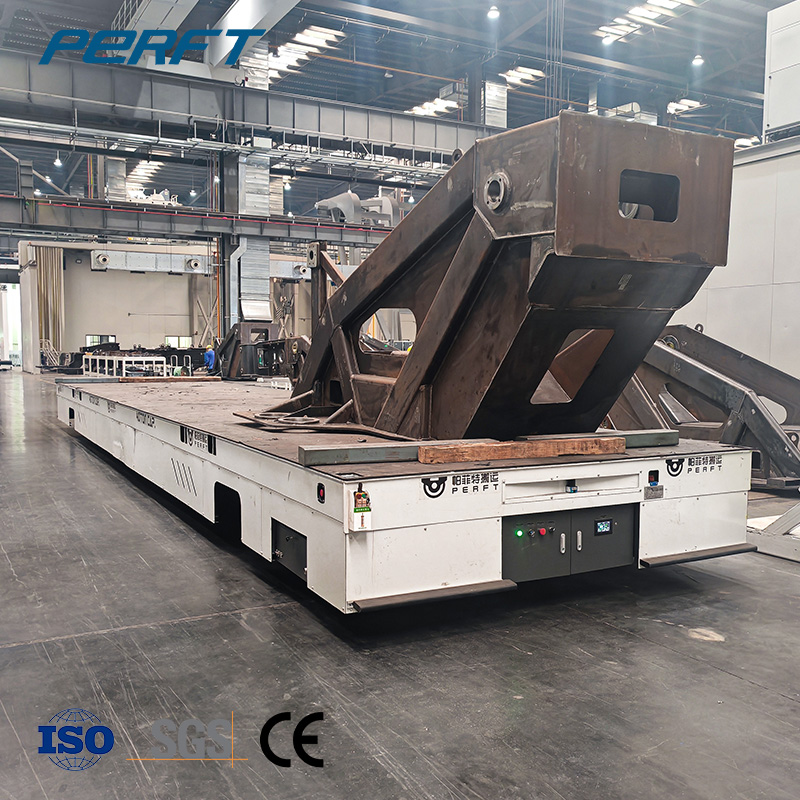

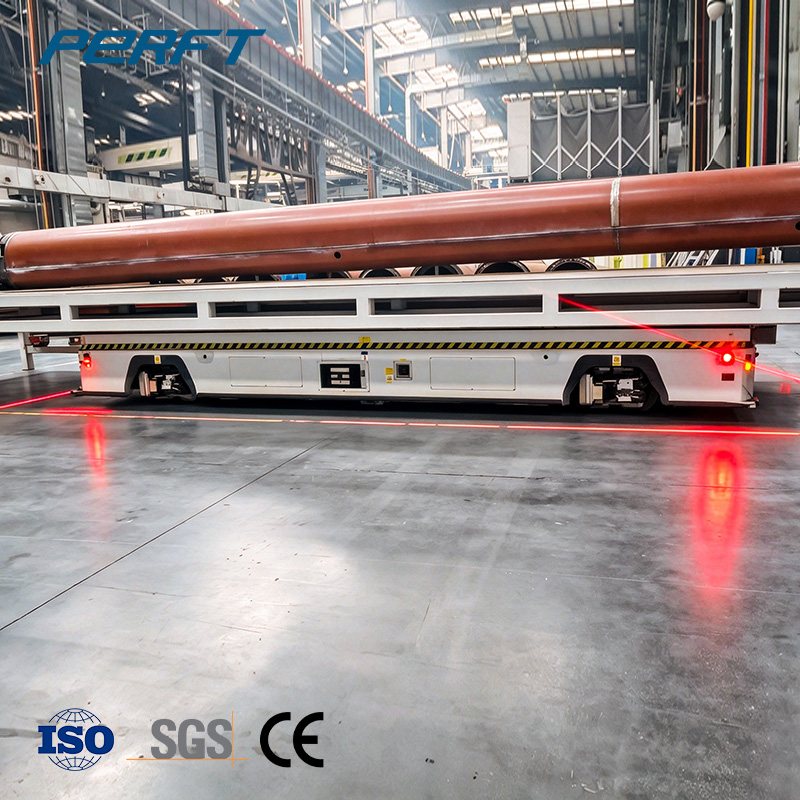

The BZH-40T is not a track-bound cart. It is a heavy-duty, battery-powered omnidirectional transfer cart built for die handling.
Equipped with a hydraulic lift platform, it raises a 40-ton die 300mm to 1000mm to match press bed heights. Thanks to hydraulic steer-by-cylinder technology, it moves forward, backward, or laterally without turning the chassis.
This eliminates the need for a crane during horizontal positioning. It is built for die shops, mold warehouses, and heavy fabrication bays where floor space is tight and precision alignment is critical.
|
Parameter |
Specification |
|
Model |
BZH-40T (Omnidirectional) |
|
Load Capacity |
40 Tons |
|
Power Supply |
Maintenance-Free Battery (48V / 80V) |
|
Movement Mode |
Omnidirectional (Lateral / Axial / Rotational) |
|
Steering Mechanism |
Hydraulic Steer-by-Cylinder (Independent Wheels) |
|
Lifting Mechanism |
Hydraulic Cylinders + Scissor/Post Lift |
|
Lifting Stroke |
300mm – 1000mm (Customizable) |
|
Wheel Type |
PU Tires (Shore A 90-95) on Steel Core |
|
Control Mode |
Wireless Remote + Pendant (Dead-Man Control) |
|
Safety Features |
Hose Burst Valves, E-Stop, Flashing Beacon, Bumper Strip |
|
Speed |
0–20 m/min (Variable) |
Moving heavy stamping dies between storage and presses.
Case Example: A BZH-40T lifts a 35-ton progressive die. Instead of waiting for an overhead crane, the operator drives the cart laterally into a narrow aisle. The omnidirectional movement allows precise alignment with the press bed. Reduces crane dependency for floor-level positioning.
Positioning large injection molds for service.
Case Example: A BZH-40T lifts a 28-ton mold 800mm. It performs a lateral shift to align with the maintenance bay. The ability to move sideways saves 50% of the floor space typically required for turning long molds.
Transporting bulky sub-assemblies.
Case Example: A BZH-40T moves a 40-ton generator casing. It uses in-place rotation to pivot 90 degrees in a tight corner, avoiding costly facility modifications.
We tailor the BZH-40T to your specific workflow:
Lifting Style: Scissor lift (low profile) or Post lift (high lift).
Platform Size: Match the footprint of your largest die.
Guidance Aids: Laser alignment projectors or camera systems for pinpoint accuracy.
Load Securing: T-slots, D-rings, or hydraulic clamping systems on the deck.
Environmental Hardening: Stainless steel washdown version or spark-proof version for hazardous areas.
BZH-40T omnidirectional transfer cart. 40-ton capacity with hydraulic lift and 360° movement. No track required. Ideal for die handling and mold shops. Get a quote.
Alt: BZH-40T omnidirectional transfer cart with hydraulic lift platform performing lateral movement on PU tires in a heavy stamping workshop.
Fail-Safe Hydraulics: We don't just lift. We protect. Our circuits include hose burst valves. If a hydraulic line ruptures, the valve slams shut instantly, trapping the oil and locking the 40-ton load in place. No drop, no crash.
No Floor Damage: We specify PU tires (Shore A 90-95). Hard enough to support 40 tons without deforming, yet soft enough to protect your epoxy floor from chipping. We’ve seen what cheap tires do to floors—we don’t use them.
Precision Steering: Hydraulic steer-by-cylinder ensures each wheel hits the exact angle required for true omnidirectional movement. No skewing, no tire scrubbing during lateral moves.
Operational Efficiency: One operator with a wireless remote controls lifting, lowering, and steering. Frees up cranes for lifting duties only.
Please feel free to give your inquiry in the form below .We will reply you in 24 hours .
Q: How does it move sideways?
A: Via hydraulic steer-by-cylinder. Each wheel pivots independently on its axis. By turning all wheels 90 degrees simultaneously, the BZH-40T translates laterally without changing the orientation of the chassis.
Q: Is the hydraulic lift safe if a hose breaks?
A: Absolutely. We install hose burst valves on the lift cylinders. If a hose ruptures, the valve instantly blocks the flow, locking the hydraulic fluid in the cylinder. The 40-ton platform remains stationary.
Q: Will it operate on uneven floors?
A: It handles slight irregularities (up to 3% grade). For significantly uneven floors, we offer an articulated chassis option to maintain wheel contact.
Q: How long does the battery last?
A: Approximately 4–6 hours of mixed driving and lifting. Frequent lifting consumes more power than flat driving. We size the battery bank based on your duty cycle. Optional second battery packs or fast charging support 24/7 operations.
Q: Is it safe to use near personnel?
A: Yes. It features dead-man control (constant pressure required to move), flashing beacons, horns, and bumper strips that cut power upon contact. Maximum speed is limited to 20 m/min for safety.
Q: How is this different from a forklift?
A: Forklifts have a high center of gravity and require aisle space to turn. The BZH-40T has a low center of gravity, a large stable platform, and omnidirectional movement. It excels at moving wide, bulky dies in tight spaces where forklifts struggle.
Stop struggling with cranes and forklifts for heavy dies.
Send us your die weight (40T), required lift height, and floor space constraints.
We will engineer a BZH-40T solution that fits your shop and your budget.
